DESCRIPTION
| Name | Welding robot | basic | J1 | ±173° | J1 | 104.3°/S | ||
| Type | Vertical joint 6 degrees | Range | axis | J2 | +85°-150° | Max basic axis |
J2 | 93.8°/S |
| The main purpose | Weld | of | J3 | ±80° | speed | J3 | 137.3°/S | |
| specification | BR20iC-20 | motion | arm | J4 | ±150° | arm | J4 | 294.1°/S |
| Max load weight | 10KG | axis | J5 | +140°-105 | axis | J5 | 300°/S | |
| Position repeatability | ±0.08mm | J6 | ±220° | J6 | 1666.7°/S | |||
| Action range | Attached drawing | Maximum reach | 2166mm | Installation | Ground,ceiling
wall mounted |
|||
| Battery capacity | 4.5KVA | Conditions | 0-45℃,20-80%RH(no condensation) | |||||
| Body weight | 230KG | Protection class | Equivalent to IP54 |

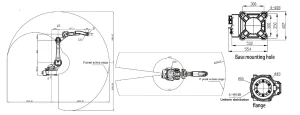

Scope of work and installation diagram:
