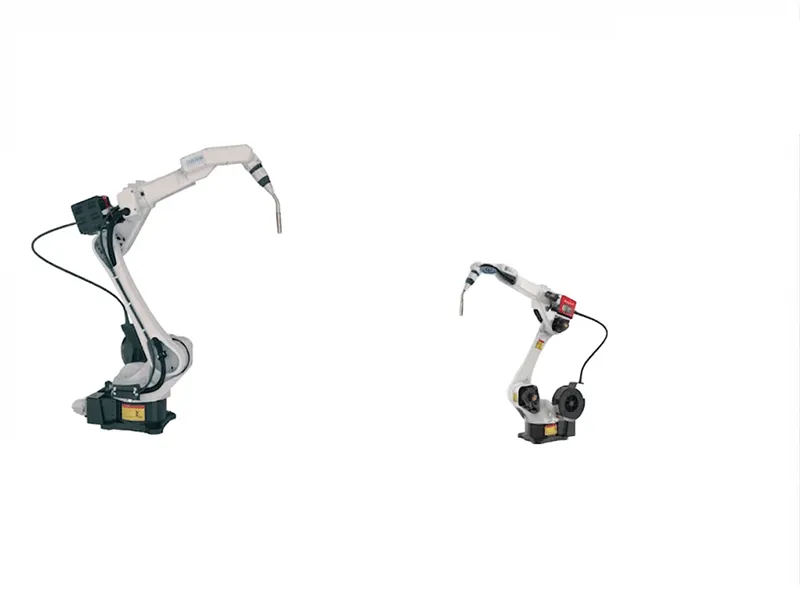

Welding Robot BR20iA Pro-20
Welding Robot BR20iA Pro-20 is an industrial robotic welding system designed for high-precision, efficient, and consistent automated welding operations.
DESCRIPTION
| Name | Welding robot | basic | J1 | ±173° | basic | J1 | 104.3°/S | |||||
| Type | Vertical joint 6 degrees | Range axis |
J2 | +85°-150° | Max
speed |
axis | J2 | 93.8°/S | ||||
| The main purpose | Weld | of | J3 | ±80° | J3 | 137.3°/S | ||||||
| specification | BR20iA Pro-20 | motion arm | J4 | ±150° | arm | J4 | 294.1°/S | |||||
| Max load weight | 10KG | axis | J5 | +130°-105° | axis | J5 | 294.1°/S | |||||
| Position repeatability | ±0.05mm | J6 | ±220° | J6 | 426.7°/S | |||||||

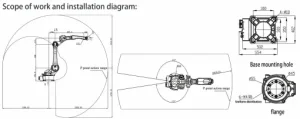

| Action range | Attached drawing | Maximum reach | 2156mm | Installation | Ground,ceiling wall mounted |
|||||||
| Battery capacity | 4.5KVA | Conditions | 0-45℃,20-80%RH(no condensation) | |||||||||
| Body weight | 250KG | Protection class | Equivalent to IP54 | |||||||||
