WC67K NC Hydraulic press brake bending machine with E21, Ball screw, guide linear

Share on facebook
Share on twitter
Share on linkedin

Description

WC67K NC Hydraulic press brake bending machine with E21, Ball screw, guide linear

Video link:

Main Features:

1,Totally EU streamlined design,Mono block by welding robots & aparatus and stress relief process by Annealing treatment.

2.Hydraulic synchronised positive stop design,and by Etsun NC programmable controller assuring accurate repeatability &ease of use.

3.Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.

4.Inverter with E21 NC System operated back gauge with quality support fingers also with vertical adjustment

5.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.

6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.

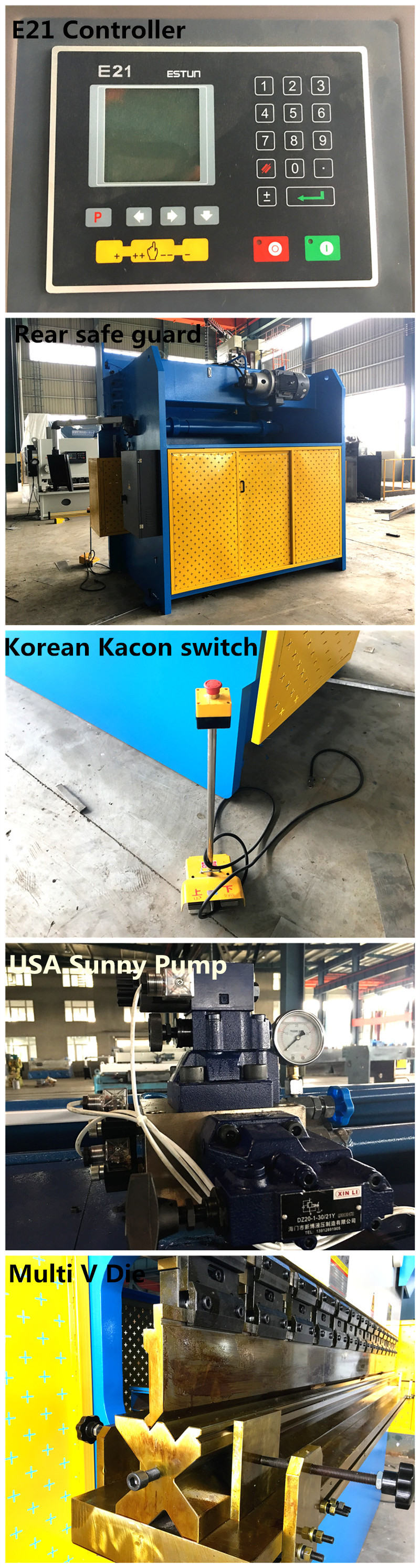

  1. Standard Equipment:
  • Estun E21NC control System
  • Powered Depth Y-axis&Back gaugeX-axis
  • DELTA Inverter controlled back gauge
  • HIWIN Ball screws & Polished rod with 0,05mm accuracy.
  • Plate Support Arms
  • Germany Bosch-Rexroth Hydraulic
  • Germany EMB Tubing connector
  • Germany Siemens Main Motor
  • Telemecanique/Schneider Electrics
  • Hydraulic &Electrical overload protection
  • Top and Bottom Tooling(86°,R0.6mm)
  • Safety Standards(2006/42/EC):
  1. Safety Equipment:

1.EN 12622:2009 A1:2013          2.EN ISO 12100:2010      3.EN 60204-1:2006 A1:2009

  • Front finger Protection(Safety light curtain)
  • South Korea Kacon Foot Switch(Level 4 of safety)
  • Back metal safe fence with CE standards
  • Safety relay with Monitor the pedal switch and safety protection

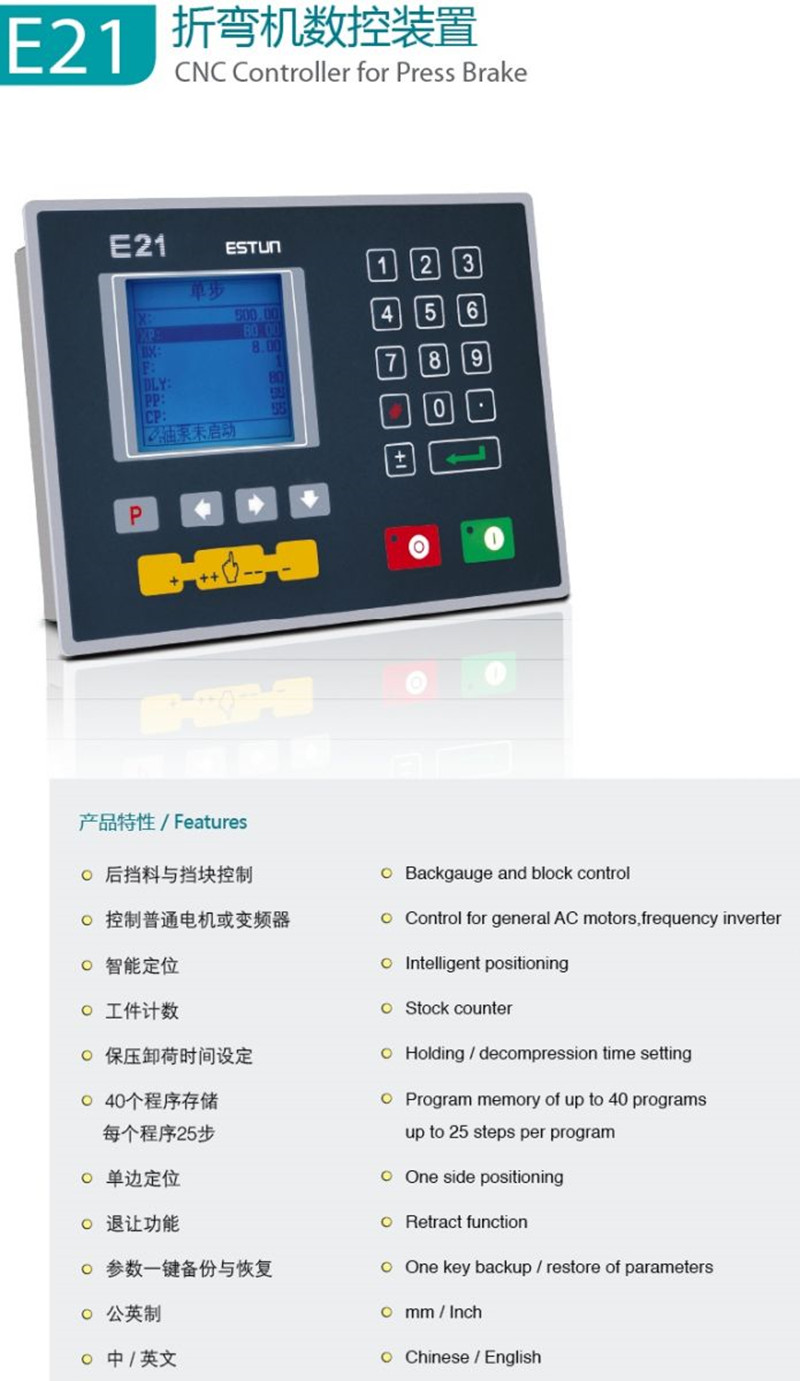

  1. Estun E21s NC Control system:
  • Monochrome LCD Box Panel.
  • Integral factor programmable freely
  • Automatic positioning control● Spindle allowance offset
  • Internal time relay● Stock counter
  • Backgauge position display, resolution in 0.05mm.
