W12 4 rolls plate bending machines, cnc sheet metal Cone plate rolling machines
Category Plate rolling machine
DESCRIPTION
W12 4 rolls plate bending machines, cnc sheet metal plate rolling machines
video link:
4 rollers hydraulic plate bending machine / CNC Rolling Machine

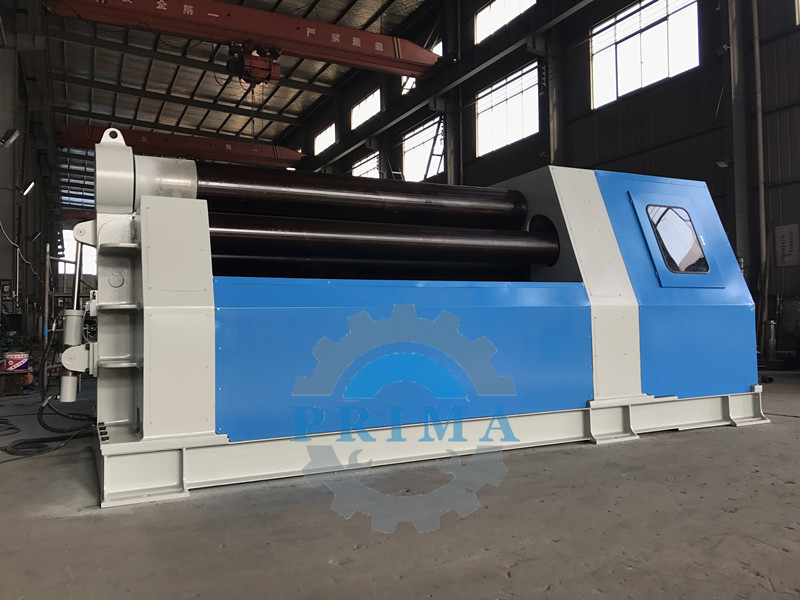

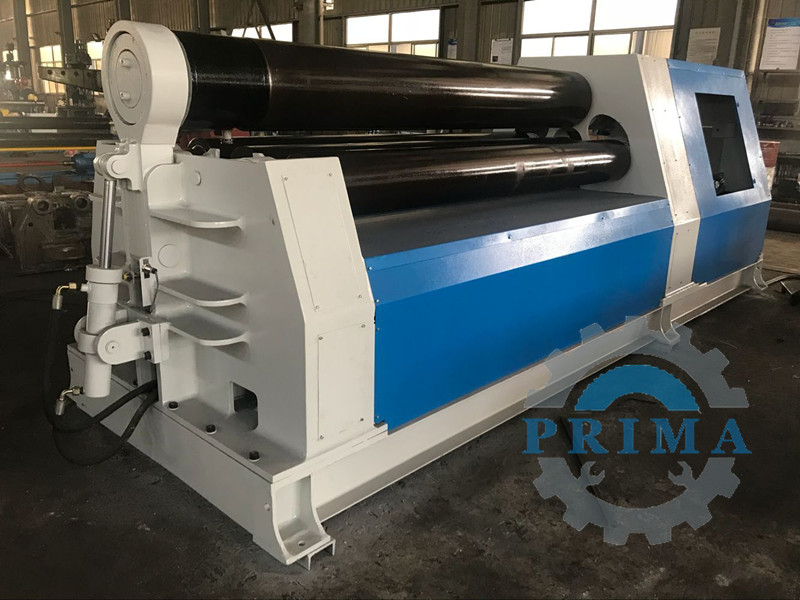

The machine belongs to hydraulic 4-rollers rolling machine, be used to roll plate sheet into cylinder shape, Up roller is fixed, the bottom roller and two side rollers can move up and down.
The up and down rollers are main driving rollers, the two side rollers are assisstant rollers.
The up and down rollers are used to pre-bend the plate sheet.
Upward and downward, the side rollers are forming the shape.
1, CNC Hydraulic Four Roller Rolling Machine, Four Roll Rolling Machine
2, CE certification
Feature of CNC Hydraulic Four Roller Rolling Machine, Four Roll Rolling Machine
1, CNC Hydraulic Four Roller Rolling Machine, Four Roll Rolling Machine, sheet metal can be expected to need a U-turn on the sheet to complete the end of pre-made bends and volume.
2, CNC Hydraulic Four Roller Rolling Machine, Four Roll Rolling Machine in the series, roll on-roll for initiative.Driven by the initiative:The next roller and side roller are driven by steel plate and the friction between the drive roller rotation, on the location of the fixed roller.
3, CNC Hydraulic Four Roller Rolling Machine, Four Roll Rolling Machine under the roller and side rollers are in their tanks at both ends of the parallel movement driven by movements, on the discharge side of the end roller body turner over and reset the drive from the fuel tank.
4, CNC Hydraulic Four Roller Rolling Machine, Four Roll Rolling Machine to enhance the stiffness of the next roll, the next roll of the central roller bearing installed and its movements driven by the fuel tank.
CNC Hydraulic Four Roller Rolling Machine, Four Roll Rolling Machine significant features:
1, the use of mill work roll bearings with self-aligning roller bearings, small frictional resistance, less power loss, long life, low energy consumption.

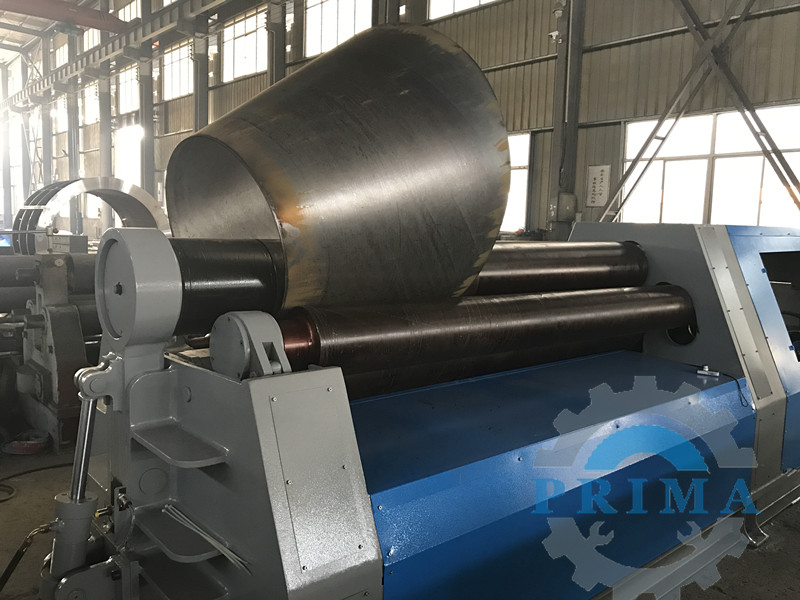

2, under the roller and side roller at both ends of the synchronous movements, tilted cone volume control and transfer the amount from an average of CNC automatic cintrol, control and high accuracy.

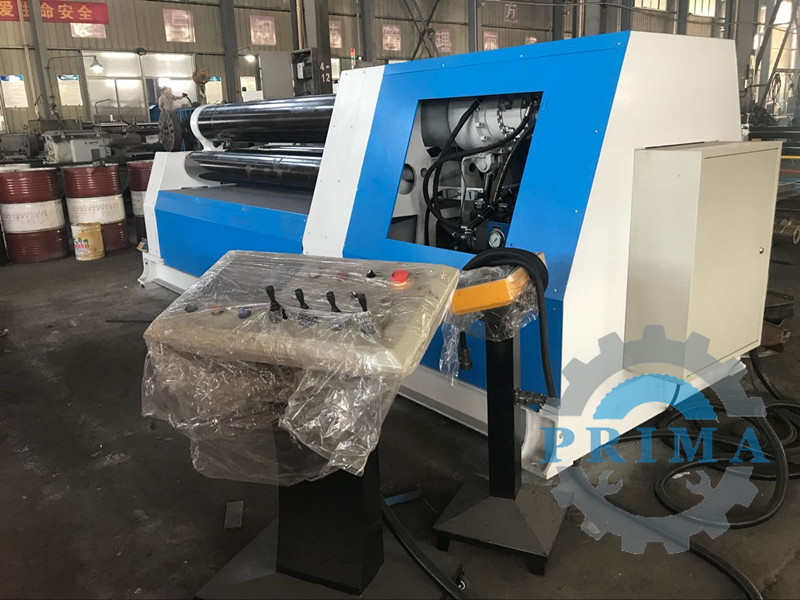

3, numerical control system is the leading domestic, with the screen display, Rolling basis, process control, process parameter storage, software protection and fault alarm, a number of functions such as human-computer dialogue.
Type | Max. Rolling Thickness | Max. Rolling Width | Yield Limit | Rolling Spped | Min. Diameter full-loaded | Up Roll Diameter | Down Roller Diameter | Max.Diameter of Side Roller | Max. Stroke of Side Roller | Adjustment Speed of Side Roller | Main Motor Power |
mm | mm | mm | m/min | mm | mm | mm | mm | mm | Kw | Kw | |
W12-25* 2000 | 25 | 2000 | 245 | 4 | 800 | 350 | 320 | 280 | 240 | 80 | 22 |

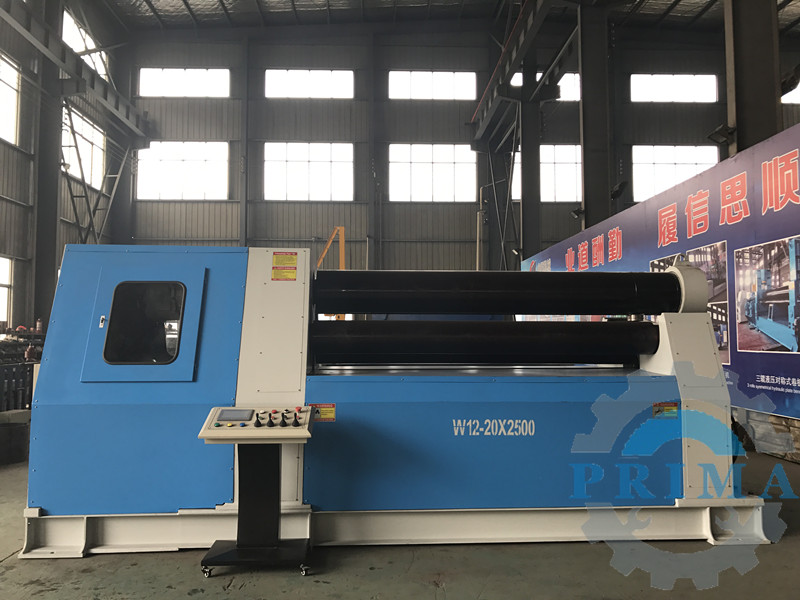

W12-20* 2500 | 20 | 2500 | 245 | 4 | 640 | 350 | 320 | 280 | 240 | 80 | 30 |
W12-30*2000 | 30 | 2000 | 245 | 4 | 1000 | 400 | 360 | 300 | 240 | 80 | 37 |
W12-25*2500 | 25 | 2500 | 245 | 4 | 800 | 400 | 360 | 300 | 240 | 80 | 37 |
W12-35*2000 | 35 | 2000 | 245 | 4 | 1200 | 420 | 380 | 330 | 210 | 80 | 37 |
W12-30*2500 | 30 | 2500 | 245 | 4 | 1000 | 400 | 360 | 320 | 230 | 80 | 37 |
W12-40*2000 | 40 | 2000 | 245 | 4 | 1400 | 480 | 400 | 340 | 420 | 80 | 45 |
W12-45*2000 | 45 | 2000 | 245 | 4 | 1600 | 500 | 450 | 400 | 380 | 80 | 45 |
W12-35*2500 | 35 | 2500 | 245 | 4 | 1200 | 480 | 400 | 340 | 420 | 80 | 45 |
W12-40*2500 | 40 | 2500 | 245 | 4 | 1400 | 500 | 450 | 400 | 380 | 80 | 45 |
W12-45*2500 | 45 | 2500 | 245 | 4 | 1600 | 530 | 480 | 420 | 450 | 80 | 63 |
W12-35*3000 | 35 | 3000 | 245 | 4 | 1200 | 500 | 450 | 400 | 380 | 80 | 45 |
W12-45*3000 | 45 | 3000 | 245 | 4 | 1600 | 560 | 500 | 450 | 450 | 80 | 63 |
W12-55*2500 | 55 | 2500 | 245 | 4 | 2000 | 600 | 550 | 480 | 500 | 78 | 75 |
W12-55*3000 | 55 | 3000 | 245 | 4 | 2000 | 620 | 560 | 490 | 500 | 78 | 75 |
W12-65*3000 | 65 | 3000 | 245 | 4 | 2400 | 670 | 600 | 530 | 550 | 78 | 110 |
