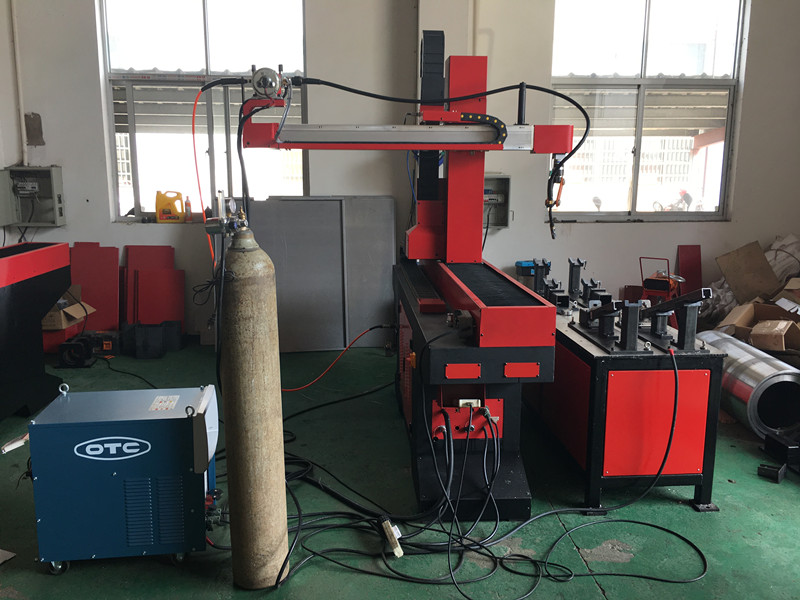

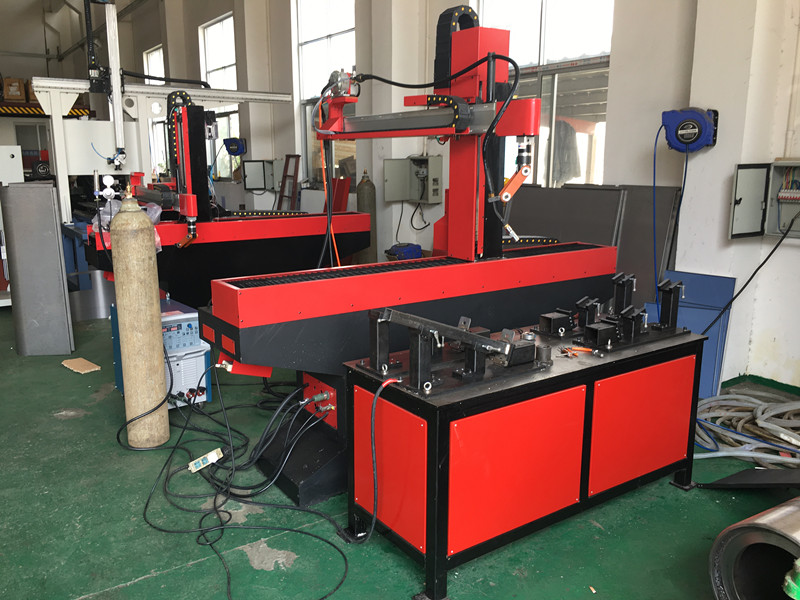

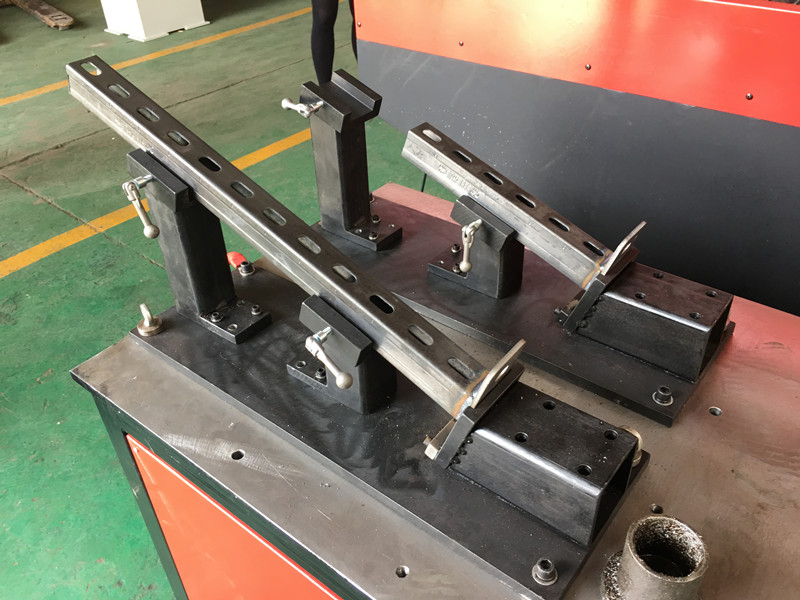

TIG or MIG 4 axis welding robot PM1700 with Panasonic Source
video link:
Features:
- The system also controls the four servo axes at the same time movement; 2. Arc starting arc time precise control; 3. Welding start position can be precisely controlled; 4. According to the product of any programming; 5. Weld uniform beautiful fully.
The main technical parameters:
| X effective(mm) | 1700mm | 2500mm |
| Y effective(mm) | 800mm | 800mm |
| Z effective(mm) | 500mm | 500mm |
| R effective(mm) | 0-400 degree | 0-400 degree |
| MAX SPEED | 400mm/S or 24m/min | 400mm/S or 24m/min |
| Repositioning accuracy | ±0.05mm | ±0.05mm |
| Programe | Teaching and manual | Teaching and manual |
| X、Y、Z、R motor | Taiwan Dongling Serbo | Taiwan Dongling Serbo |
| Transmission part | Taiwan TBI or HIWIN | Taiwan TBI or HIWIN |
| Controller | 4 Axis movement ,scalable | 4 Axis movement ,scalable |
| Input and output | 24 input，12output，scalable | 24 input，12output，scalable |
| Programme storage | USB 30M | USB 30M |
| Main power | 220V 50HZ | 220V 50HZ |
| Controller power | DC 24V | DC 24V |
| Welding way | MAG/MIG | MAG/MIG |
| Gas protection | CO2 or mixed gas | CO2 or mixed gas |
| Size | 2.5×0.6*2.3m | 3.5*0.8*2.3m |
| Weight | 750KG | 950KG |
The whole module uses a walking mechanism:
1, linear guide ball screw (Taiwan TBI),
2, electrical components (Schneider of France),
3, double valve solenoid valve (Taiwan Yadeke pneumatic hose (Japan), Yuan Long),
4, pneumatic components (Taiwan Yadeke),
5, cylinder (Taiwan Yadeke),
6, servo reducer (Taiwan East).
7, PLC (Korean LG),
8, intelligent man-machine interface touch screen (Wuxi xinje) .
