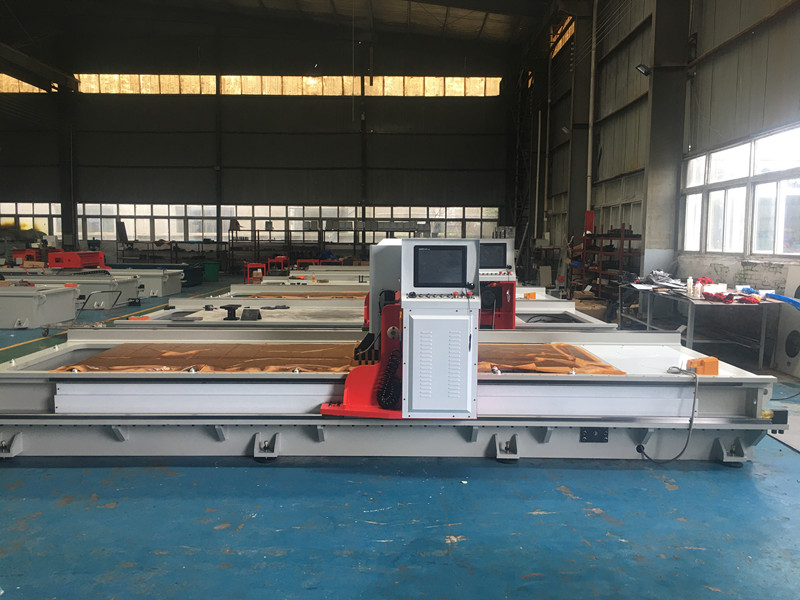

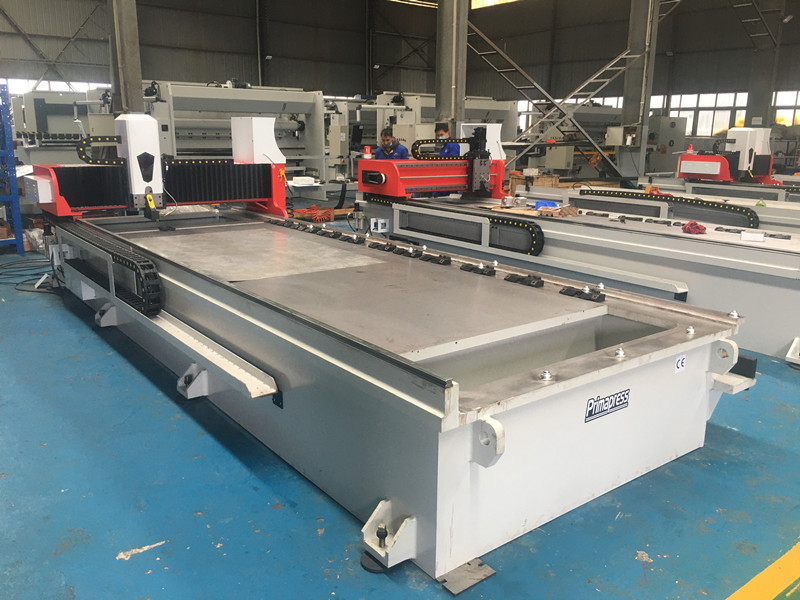

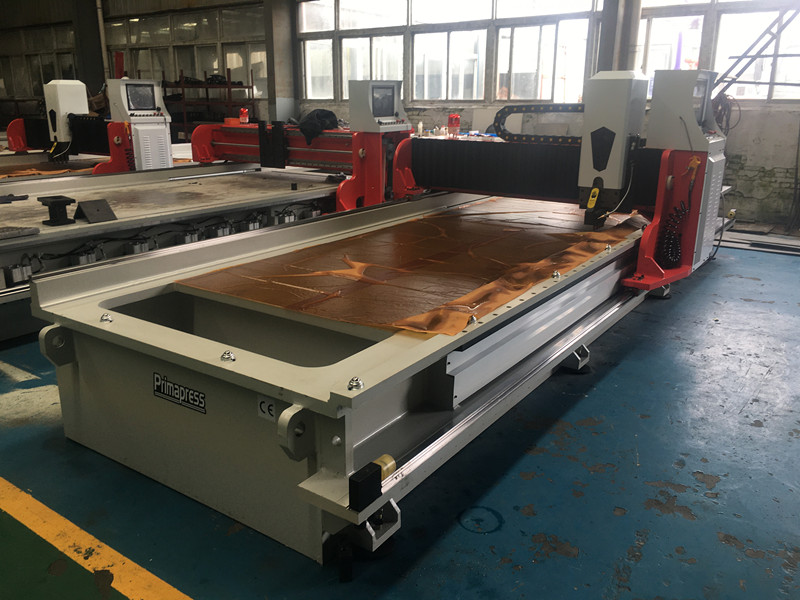

 stainless steel v groove Machine; V groover; metal grooving machine,V slotting machine for decorate

Product Features

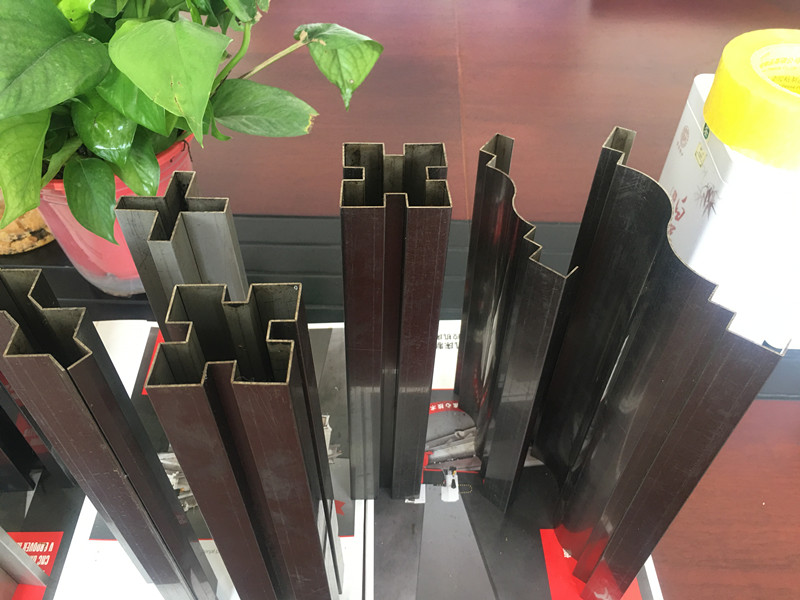

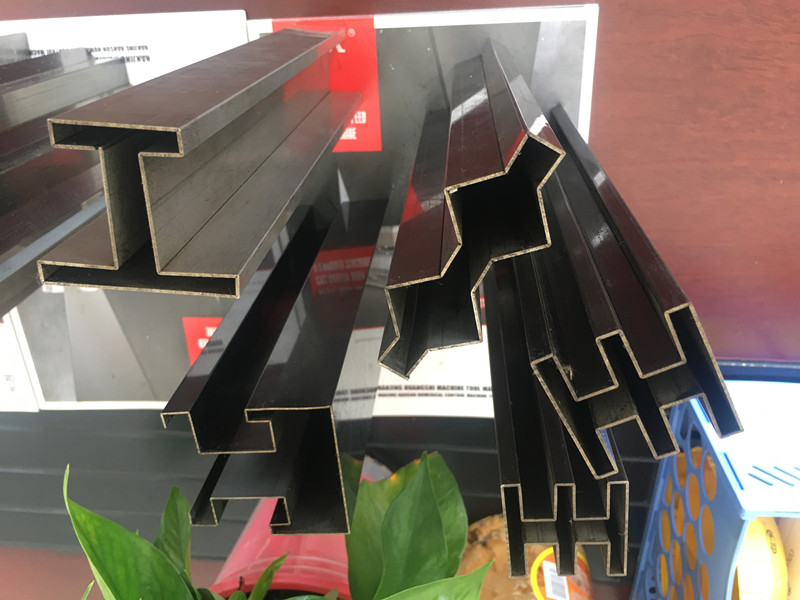

Advantages: conventional machine is clamps hold the sheet metal moving over the working table, so the sheet surface is very easy to be scratched. Now this machine’s biggest advantage is sheet metal fixed, has no relative motion. the work piece is protected perfectly, especially for use in mirror stainless steel plates on decoration, and so that the machine has a high processing speed.

1, Pneumatic v grooving machine

Frame structure with the overall table, mobile gantry beam also welded frame structure, the implementation of the overall welding, tempering after welding the whole, all to ensure the overall good rigidity, have to ensure that the future use is not deformed.

2, work: Overall table frame fixed and mobile gantry beam for cutting slotting, grooving speed frequency control, smooth and efficient cutting process, the cutting surface quality is good.

3, numerical control systems, slot machine adopts PLC touch screen CNC system

A color touch screen controller adopts special software, Chinese / English operation menu, simple and straightforward. Manual, automatic two working modes to choose from, fully meet the various processing requirements. Man-machine dialogue interface, easy to learn and operate, convenient processing size input, process real-time display, error alarm will automatically .

4, transmission parts

Machine is 4 axes control, the X-axis, Y1 axis, Y2 axis, Z axis. high positioning accuracy, where Y1, Y2 through the PLC synchronization system, guaranteed to always synchronized. X-axis is with inverter controlled AC gear motor. HIWIN brand high precision ball screw, helical rack and pinion driven sound small and precision.

5, press apparatus

Alone the working table, there is Pneumatic clamps. According to different material or thickness, clamping force can be adjusted.

6, efficient: 1), the machine uses three alloy knife while processing methods, thus cutting is more evenly, work piece deformation will be reduced, tool life will be longer, production costs cost will be lower.

2), according to different processing job, speed can be selected.

3), with use of square alloy blades, four cutting edges can be used, replacement convenient, greatly reducing tool change time, both to ensure the accuracy

MACHINE’S FEATURE
Sheet is fixed on worktable by clamps,so no sctatch on sheet surface and high processing speed .

Technical Data
项目
(ITEM) KCA3200 KCA4000
可加工长度 Cutting length 3200mm 4000mm
可加工宽度 Cutting width 1250mm 1250mm
加工件厚度 Sheet thickness 0.6-4mm 0.6-4mm
X轴刨槽最大速度 Max. Cutting speed 0-1000mm/sec 0-1000mm/sec
X轴台车最大返回速度 Max. X Dolly return speed 0-1000mm/sec 0-1000mm/sec
Y轴刀架最大左右移动速度 Y axis moving speed 20m/min 20m/min
Z轴刀架最大上下移动速度 Z axis moving speed 20m/min 20m/min
X轴控制方式 X axis control AC frequently driver control,Brand Delta AC frequently driver control,Brand Delta
Y轴、Z轴控制方式 Y、Z axis control Servo driver control,Brand Delta Servo driver control,Brand Delta
直线导轨和滚珠丝杠 Linear guide and ball screw Taiwan HIWIN Taiwan HIWIN
滚珠丝杠轴承 Bearing SKF SKF
X轴电机功率 X axis motor power 3.7KM 3.7KM
Y/Y1/Z轴电机功率 Y/Y1/Z axis motor power 1.0/1.0/1.0KM 1.0/1.0/1.0KM
油泵电机 Oil pump 4KW 4KW
控制系统 Control system Siemens PLC Siemens PLC
主要电缆和拖链 Cable Main Cable:Germany IGUS Main Cable:Germany IGUS
可输入加工步数 Max cutting step 15 cycle 15 cycle
机器尺寸 Machine dimension 5100*1800*1350(mm) 6100*1800*1350(mm)
机器重量 Machine weight 8.2TON 9.6TON
