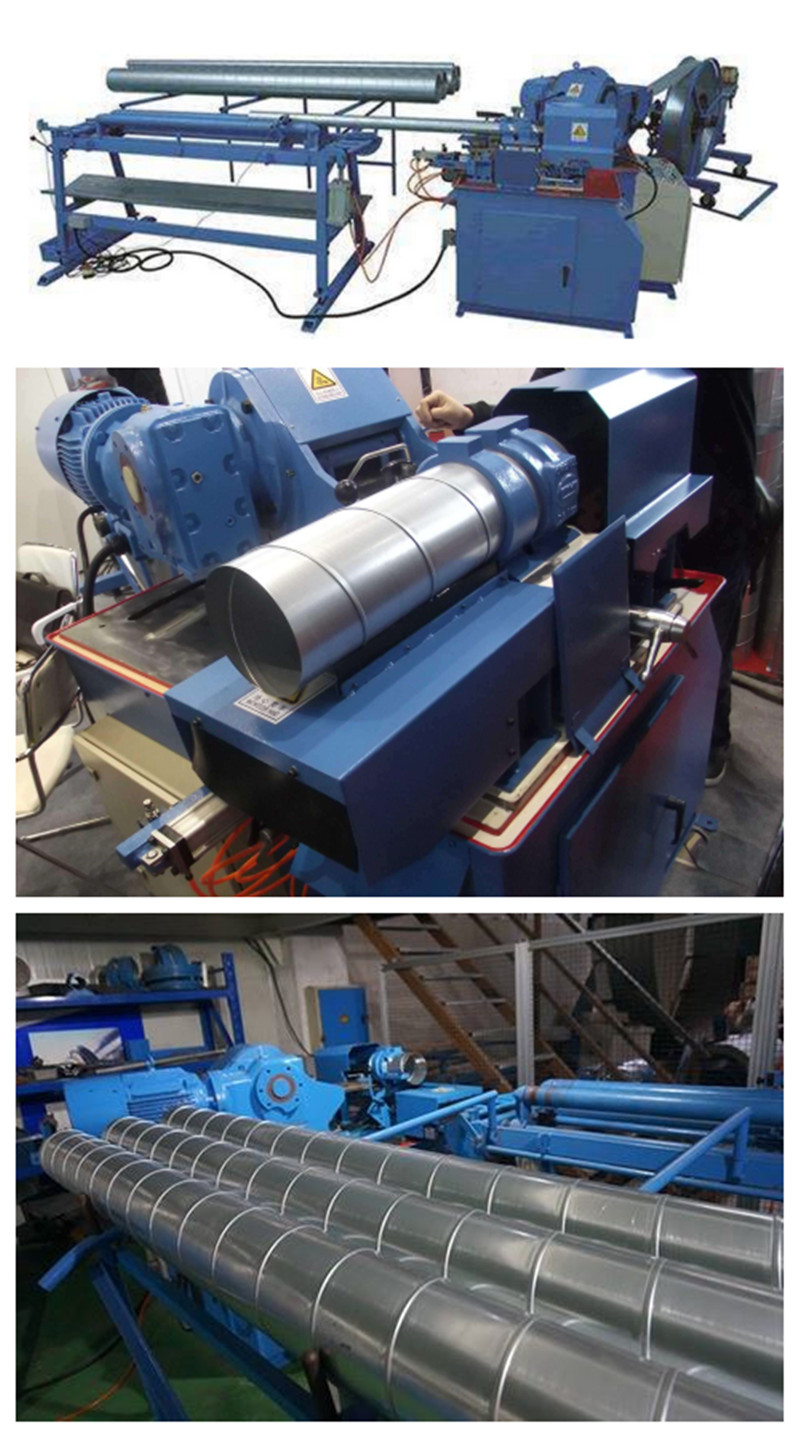

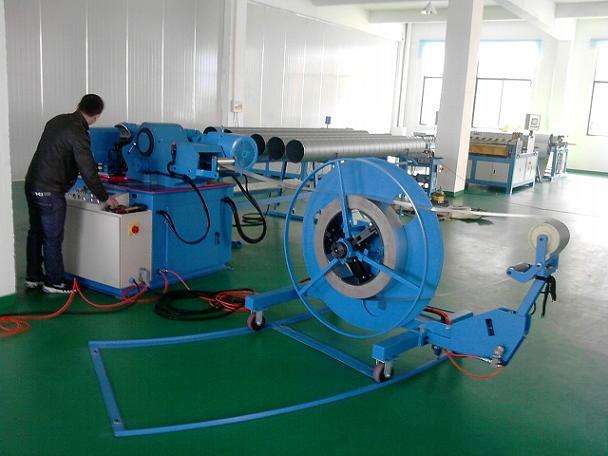

Spiral tube forming machine , spiro type tube former machine P1602

Video link in Youtube:

https://youtu.be/ckgVtWCxyIs
https://youtu.be/rZzTV_bwLCI
https://youtu.be/DTJHuMH83pQ
https://youtu.be/HvCSap18Hsg
https://youtu.be/N-RNqihBEzI



Product name:Spiral Tubeformer PM-1600
Item:
Details:
Description

The module technique gives the customer the possibility to choose

between a number of options, allowing him to create a machine a number of options, allowing him to create a machine for his specific needs.

The frequency controlled main drive ensures a smooth acceleration and an almost noiseless operation.

The outstanding patented flying slitter cuts the tubes to lengthwithout noise or hot sparks as known from the saws and provides smooth tube ends without deburring.

The design and options fulfill the needs in HVAC to produce in mild steel, galvanized steel, stainless steel or aluminum

The corrugation unit allows a reduction in material costs and makes the bigger diameter tubes more rigid.



Main Technical Specification:

Diameter range 80 – 1600mm
Thickness of strip 0.4 -1.3mm Glvanized steel
0.8mm Sinless steel
0.4-1.2mm Auminum
Strip Width standard 137mm up to 1mm

thickness, 140mm above. Other widths on request.

Lockseam Outside tube, on the inside on request.
Production speed Max. 60 meters/min. depending on material
Cutting system The pqtented flying slitter
Net weight 2900kg
Gross weight 3200kg
Machine dimension 3000mm*1950mm*1700mm,
Package dimension 3050mm*2000mm*1800mm
Options Automatic length control system, controlled corrugation unit.METU flange slitter Saw blade cutter
