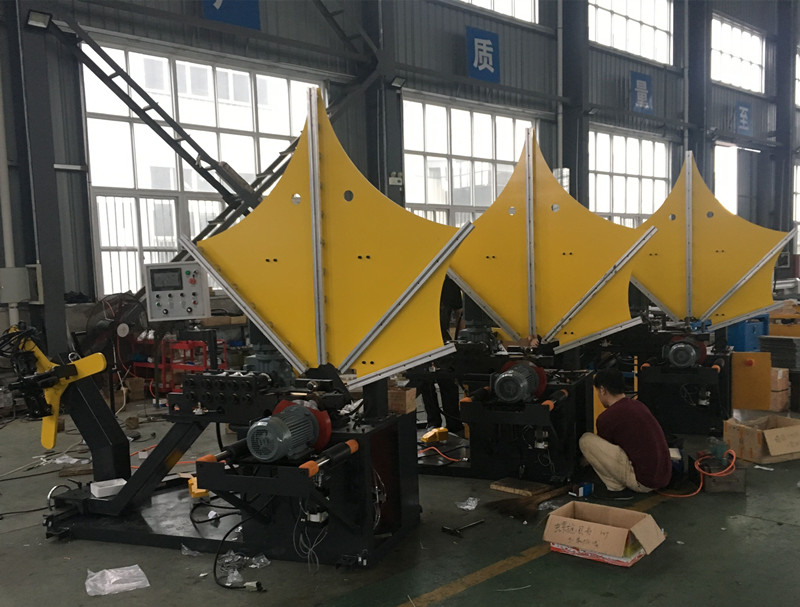

Spiral duct making machine , spiral duct forming machine P1500
Categories HVAC Duct Machine, Round Duct machine
DESCRIPTION
Spiral duct making machine , spiral duct forming machine P1500
video link:
Features:

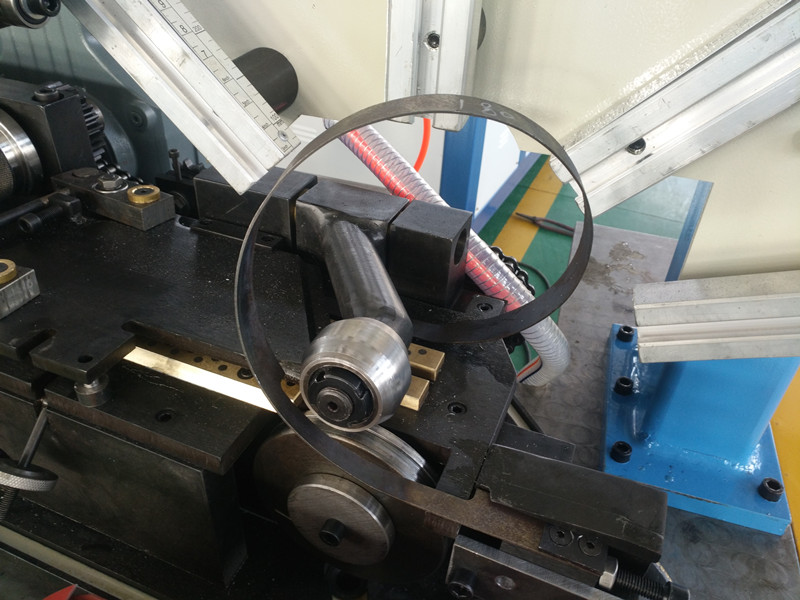

- Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower
- Large diameter range
- High speed synchro flying cutting system
- PLC control, convenient operation
- Light and small, site work

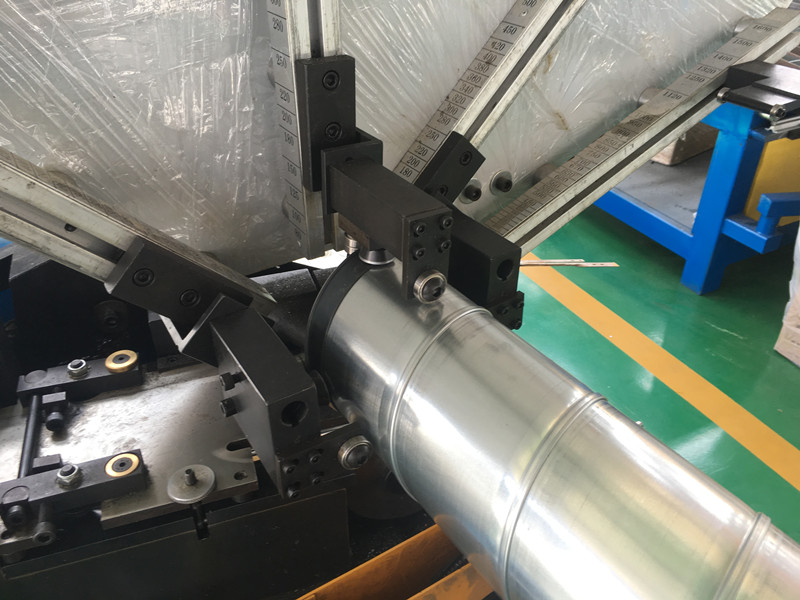

- Perfect swage, without leakage
Main Technical Data:
Diameter range | Φ80-Φ1500mm |
Tube Length | 120-8000mm |
Thickness of Strip | 0.4-1.2mm 0.8mm stainless steel |
Width of Strip | 137-140mm |
Strip Speed | 1-38/min |
Dimension (L x W x H): | 3450*2050*2720mm |
Lock seam | Outside tube, on the inside on request |
Weight | 1800kg |
Control System | PLC automatic control |
Compressed air power | 0.5-0.7kmp |
Electrical | 380V/3PH/50HZ(According to customer’s request) |
Main Motor Power | 5.5kw |
The power of cutting motor | 4kw |
Suitable Material | Aluminum, Stainless steel, Galvanized steel |
