Specially made press brake tooling , amada press brake molds

Share on facebook
Share on twitter
Share on linkedin
Category Punch Die Blades

Description

Specially made press brake tooling , amada press brake molds

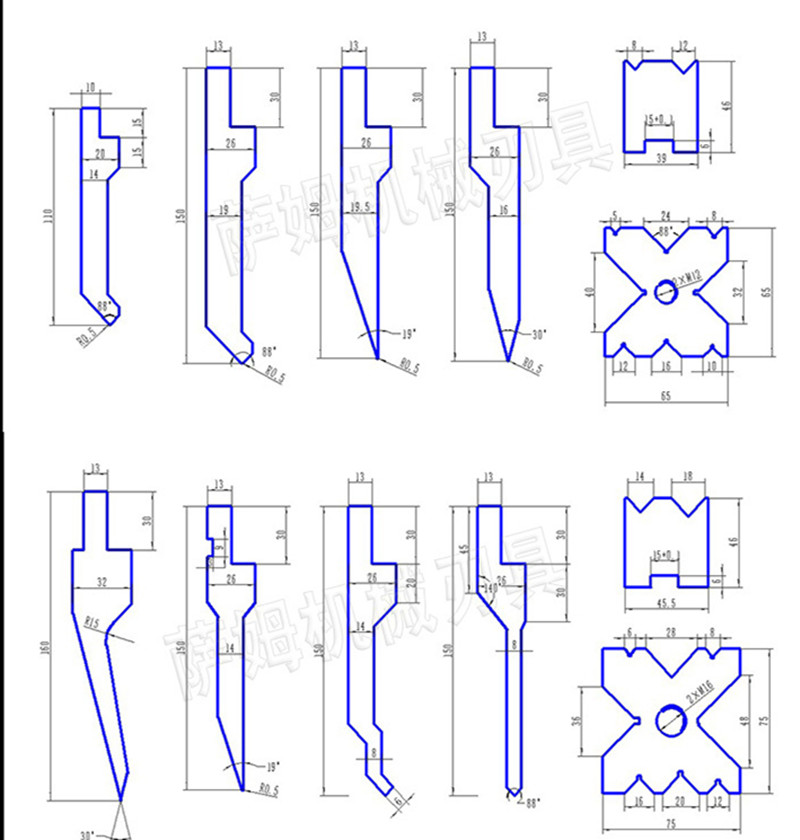

1,Drawing and details:

2, punch:material:42 CrMo (best), heating treatment, hardness 45-48.

Remark: 42CrMo = SCM440 = 42 CrMo4= 4140

The Chemical Composition of 42CrMo , HRC 47 /- 2°

C Si Mn Mo Cr S Ni Cu P
0.38-0.45 0.17-0.37 0.5-0.8 0.15-0.25 0.9-1.2 ≤0.035 ≤0.3 ≤0.3 ≤0.035

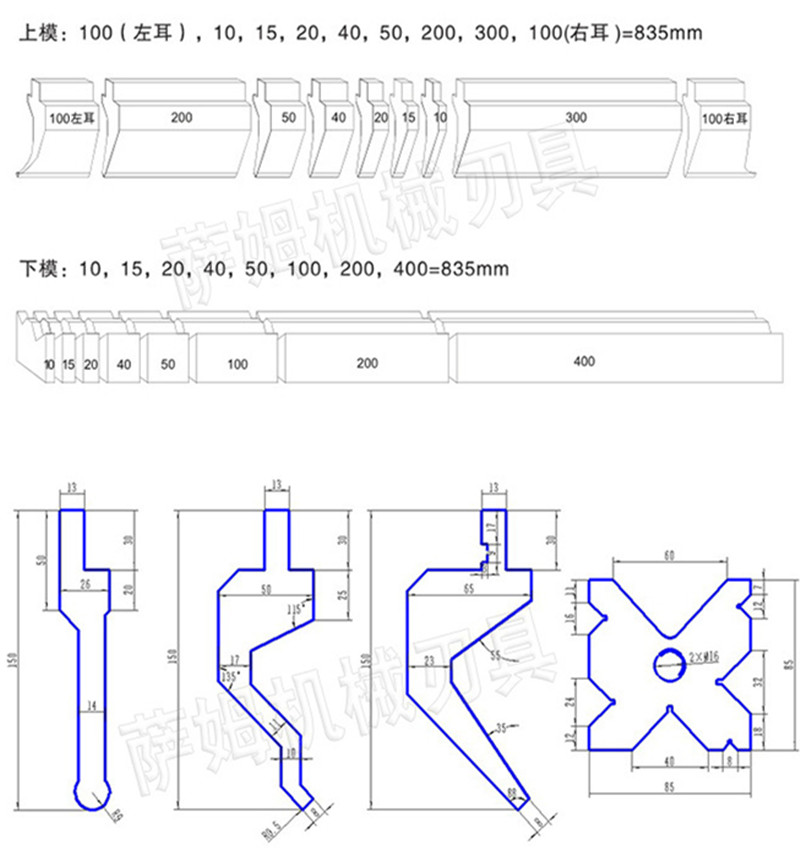

Advantage of sectional tools:

  1. Most tools can be easily loaded by a single operator.2. Easy to store
  2. All sectionalized tools come pre-cut in nine different pieces.
  3. Most sectionalized punches include two ear pieces (horns)
  4. Nitrex (HRC-70) is standard on every punch in the tooling line.6. Special tooling available.
