Special American Precision upper punch press brake V Die ,press brake down mold
Specially made press brake tooling , amada press brake molds

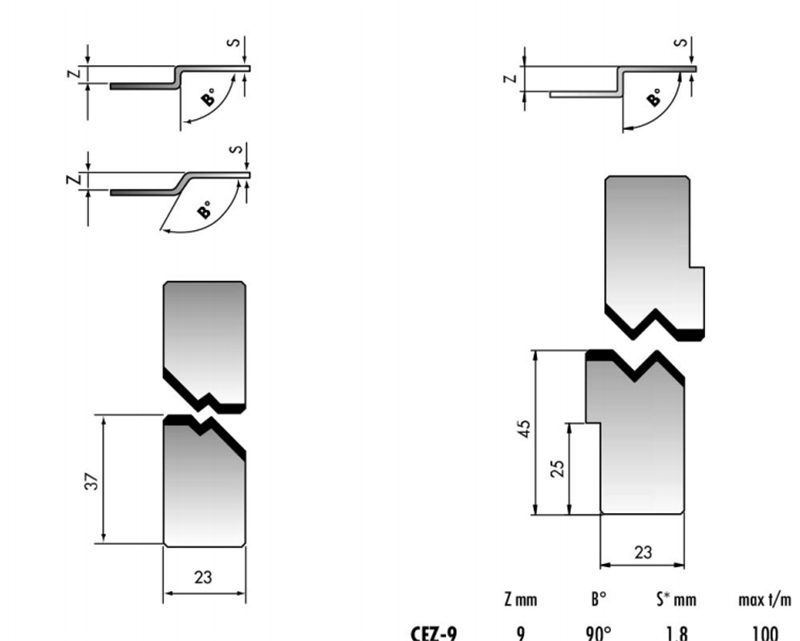

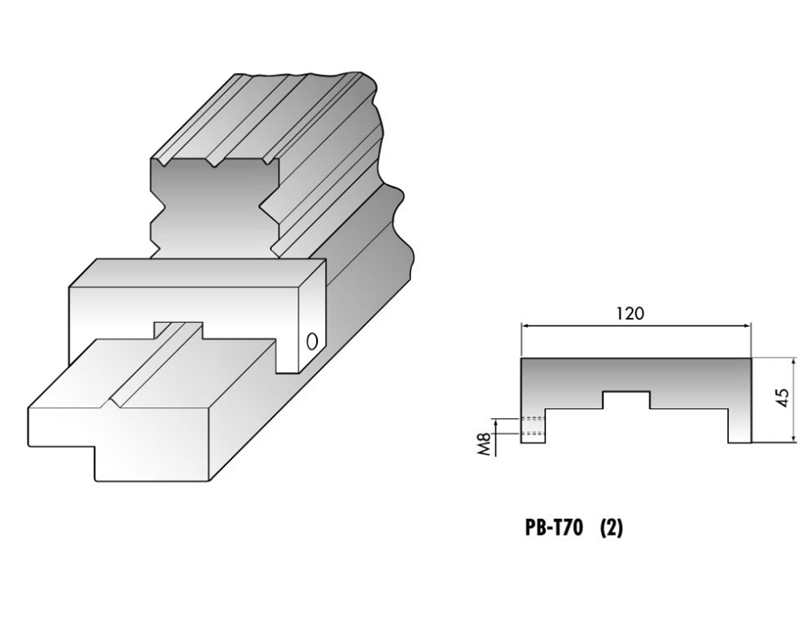

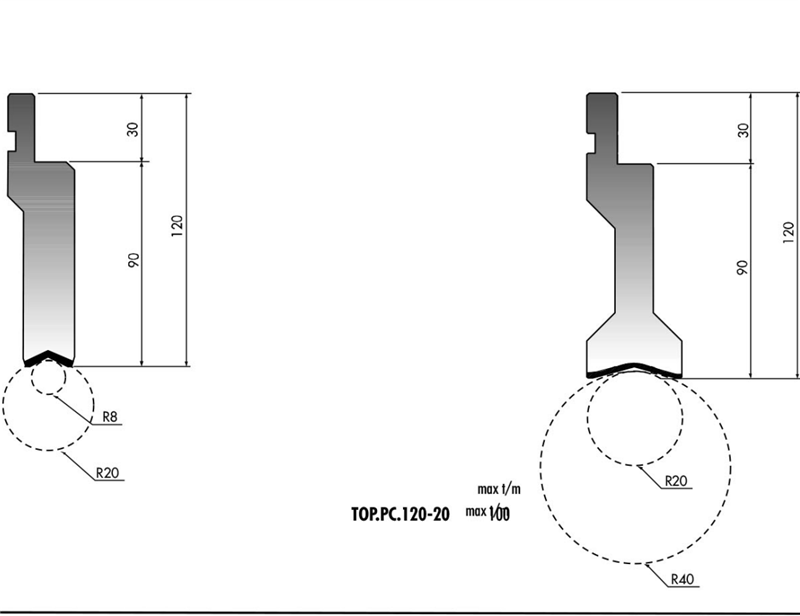

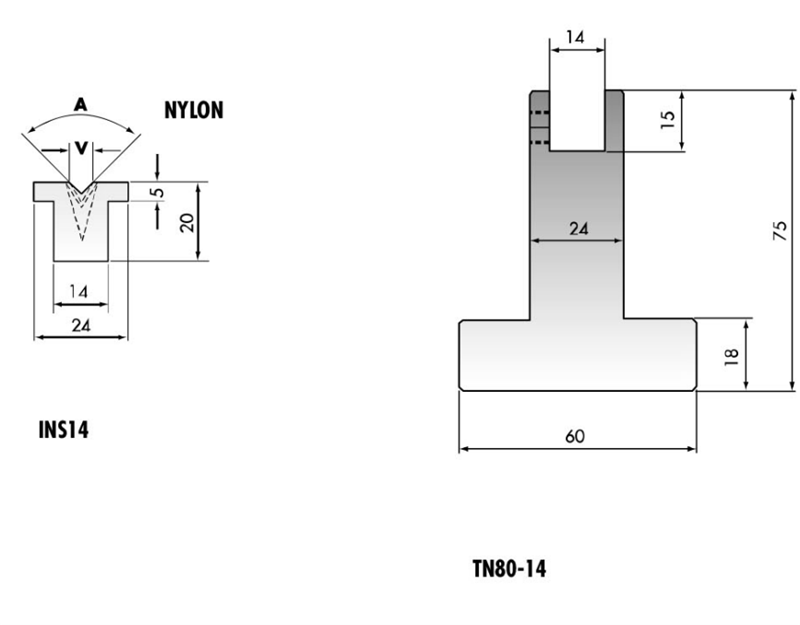

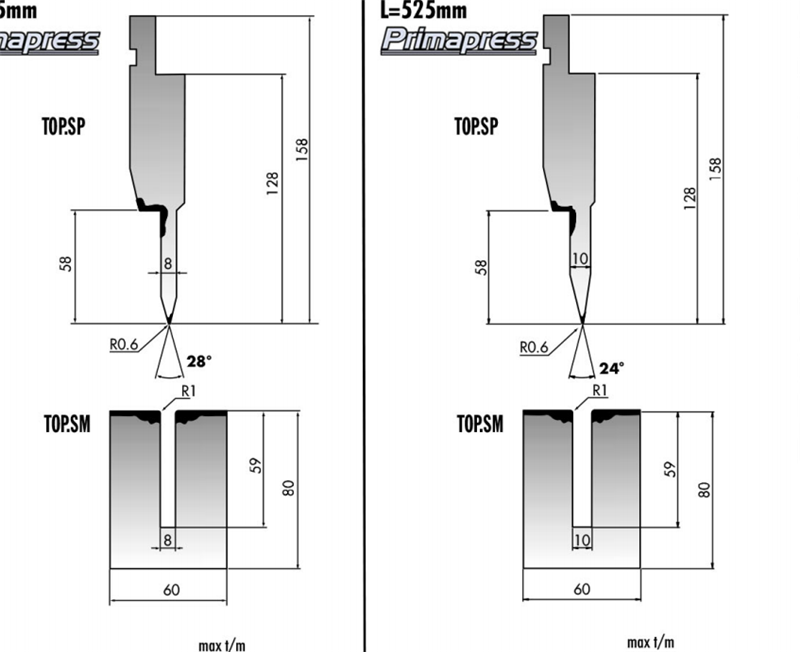

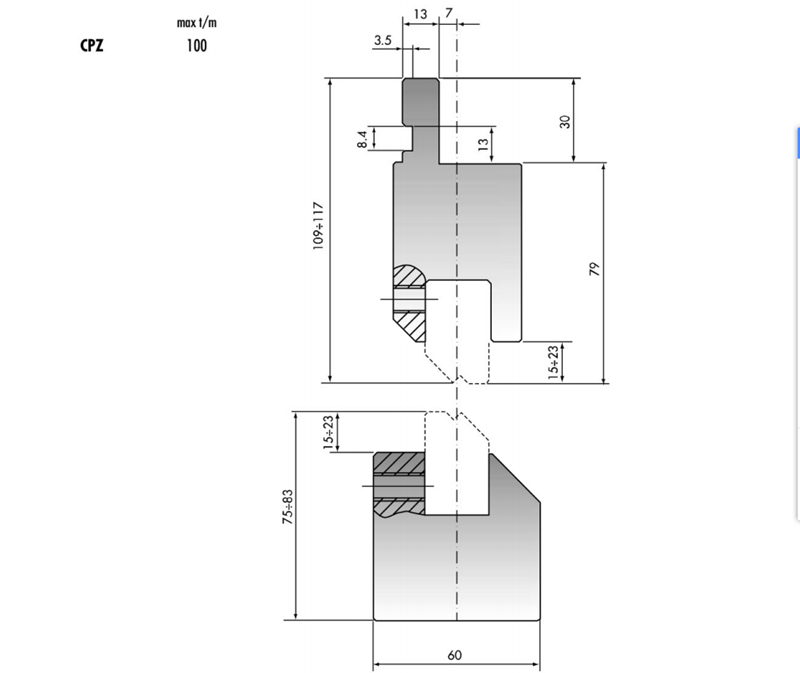

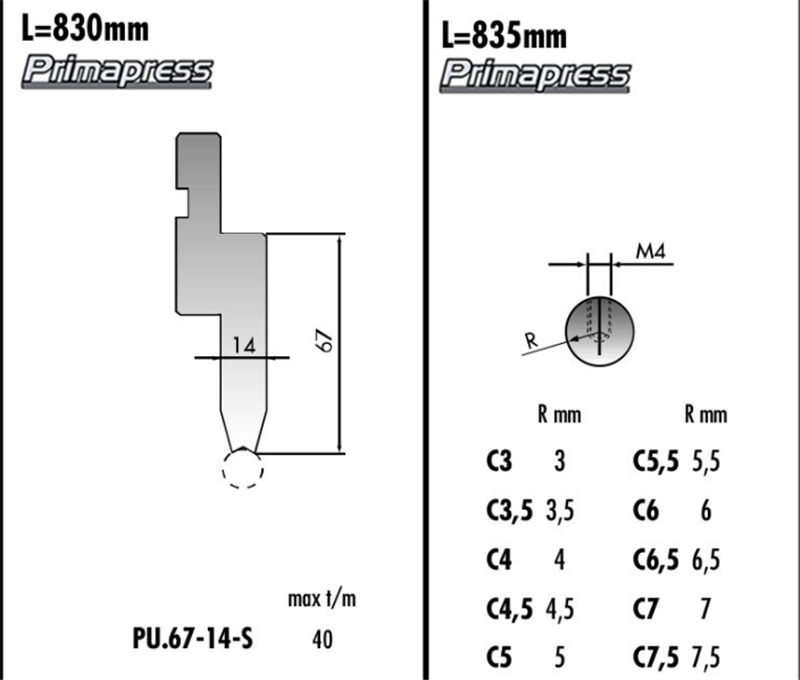

1,Drawing and details:
2, punch:material:42 CrMo (best), heating treatment, hardness 45-48.
Remark: 42CrMo = SCM440 = 42 CrMo4= 4140
The Chemical Composition of 42CrMo , HRC 47 /- 2°
Advantage of sectional tools:
- Most tools can be easily loaded by a single operator.2. Easy to store
- All sectionalized tools come pre-cut in nine different pieces.
- Most sectionalized punches include two ear pieces (horns)
- Nitrex (HRC-70) is standard on every punch in the tooling line.6. Special tooling available.
