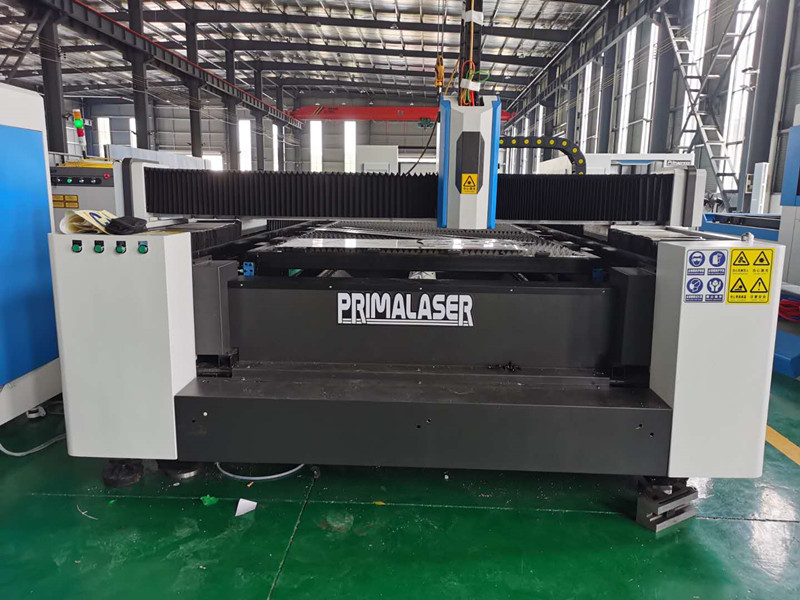

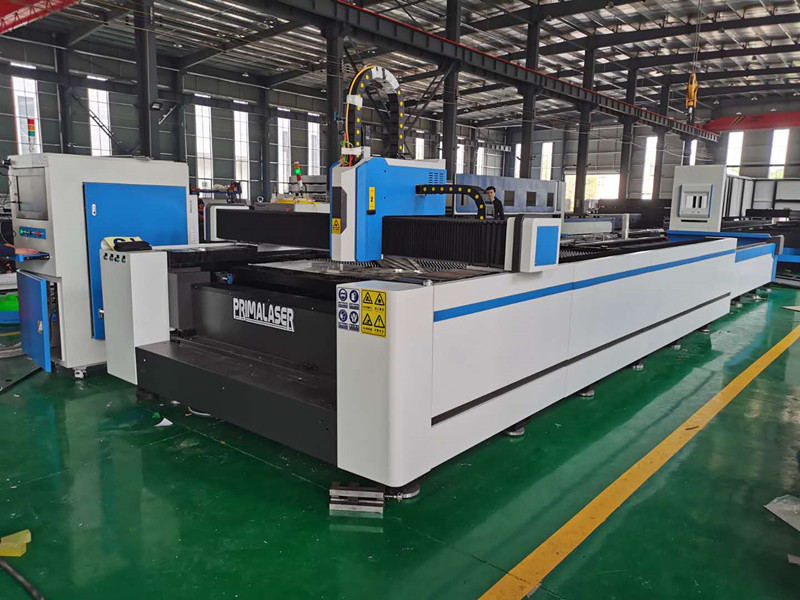

Shuttle Table fiber Laser Cutting Machine exchange table fiber laser cutting machine Product Details

The advantages of our laser cutting machine

1.    Air     conditioner room: with all electrical parts and laser source inside, which     will keep parts working stably even 24hours continued working, prolong     lifetime of electrical parts, dust isolation



2.    All     machine tested by interferometer, to ensure the machine accuracy

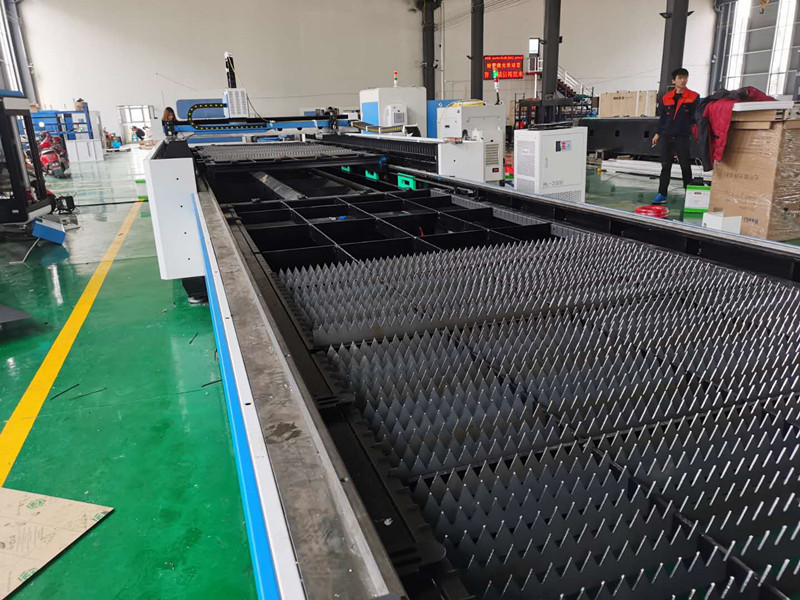

3.         Exchange table, frame with copper protection cover to protect the frame welded to machine main body not     burned during cutting (for more than 2Kw)



4.    Monitor:     during cutting it’ll monitor inside of cover enclosure for operator’s     safety



5.    All     table frames are produced by our own factory, strictly controlled, and     tempered



6.    Cylinder     controlled by solenoid, segmented dedusting



Technical Parameter

(一)、Main Electrical Collocation
Part Name   & Descriptions remark
3000W Laser Generator IPG(German) German Brand
Optical system Import Media diaphragm UK
Laser cutting head Quelle with Auto focus

Precitec(German brand)   autofocus Optional

Reducer Shimpo Japan
Water chiller Over-flow protection,   temperature stability ± 0.5 ℃, green two-cycle water-cooled machine, titanium   evaporation control cold Wuhan, China
Mechanical driving   system Rack and Pinion

Bevel type, Atlanta

German
Button Module Schneider German
AC Contactor Schneider German
Solenoid Valve Airtec Taiwan
High precision   auto-sensor Accuracy ±0.1mm China
PC System Industrial control EVOC, Taiwan
X axis servo unit 2.2Kw servo single   driving Yaskawa, Japan
Y axis servo unit 4.4Kw*2 servo dual driving Yaskawa, Japan
Z axis servo unit 750W for head with auto   focus Yaskawa or Fuji,   Japan
Electric Proportion Schneider German
Cutting Software Cypcut (loop model)

(support English   language, file formate .dxf, PLT, Gerber, AI and so on)

Shanghai, China
Table 1.     Extruded aluminum gantry   beam

2.     Strictly make table with   hardening, tempering treatment to ensure no deformation during long time   production

Body welded sheet   thickness 16mm for 2060

Primalaser, China



Technical Parameter
1 Laser Wavelength 1070nm
2 Maximum Power 3000W
3 Accelaration 1.5G
4 Power   Consumption 30Kw
5 Max Speed 170m/min(complex speed), 120m/m(single axis)
6 Min Linewidth 0.15mm (for   materials with thickness less than 0.4mm), depends on the sheet thickness
7 Cutting   Thickness MS: max 22mm,   mass production 18mm;                                                 SS: max 12mm, mass production 10mm;





8 Max.Cutting   Dimension Exchange Table

1500*3000mm

1500*6000mm

2000*4000mm

2000*6000mm

2500*6000mm

2000*6500mm

2500*8000mm(Fargo solution)

9 Cutting Table   Mechanical Accuracy:  ±0.05mm
10 X,Y,Z Repeated   Positioning Precision:±0.02mm
11 Power   Supply:Three-phase 5 wires AC 380V±5%,50Hz±1%



Cutting Parameter List

Material thickness/mm  speed mm/s Focus Pressure Nozzle Power Gas
SS 1 800 0 1.2Mpa 2.0单 100% N2
2 300 0.5 1.6Mpa 2.0单
3 130 2 1.8Mpa 2.0单
4 80 3 2.4Mpa 3.0单
5 60 3.5 2.4Mpa 3.0单
6 40 4 2.4Mpa 4.0单
8 25 4.5 2.4Mpa 4.0单
10 18 7 2.4Mpa 4.0单
1 600 0 9bar 1.0双 60% O2
2 160 -4 8bra 1.0双
3 100 -5 4bar 1.5双
4 80 -4 4bar 1.5双
5 50 -6 4bar 1.5双
6 30 -6 1.5bar 1.5双
8 20 -6 0.6bar 1.5双
10 15 -6 0.6bar 1.5双
12 12 -6 0.6bar 1.5双
Brass 1 400 1.5 1.2Mpa 2.0单 100% N2
2 200 1.5 1.6Mpa 2.0单
3 100 3 1.6Mpa 2.0单
4 60 3.5 1.8Mpa 2.0单
5 40 3 1.8Mpa 3.0单
6 30 4.5 2.0Mpa 3.0单
8 10 4.5 2.4Mpa 3.0单
Al. 1 700 0 1.2Mpa 2.0单
1.5 450 0 1.4Mpa 2.0单
2 330 0.5 1.6Mpa 2.0单
3 150 1 1.8Mpa 2.0单
4 60 2 1.8Mpa 3.0单
5 45 2.5 2.0Mpa 3.0单
6 35 2.5 2.4Mpa 3.0单
8 15 3.5 2.4Mpa 3.0单
10 10 4 2.4Mpa 4.0单
12 8 5 2.4Mpa 4.0单
CS 1 150 -0.5 9bar 2.0双 33% O2
2 100 -2.5 5bar 2.0双 35%
3 70 -3 1bar 1.0双 90%
4 55 -3 1bar 1.0双 90%
5 50 -2.5 1bar 1.0双 60%
6 40 -3 1bar 1.0双 98%
8 20 -3 0.6bar 2.0双 60%
8 36 -3 0.8bar 1.2双 100%
10 18 -3 0.6bar 3.0双 50%
12 15 -3 0.6bar 3.0双 50%
14 15 -3 0.8bar 3.0双 60%
16 12 -3 0.8bar 3.0双 70%
18 14 -3.5 0.8bar 4.5双 80%
20 11 -4 0.8bar 4.5双 80%
22 10 -4 0.8bar 4.5双 80%
