Sheet Metal Hydraulic Ironworker ,Iron worker machine

1.Introduction to the structure and properties:

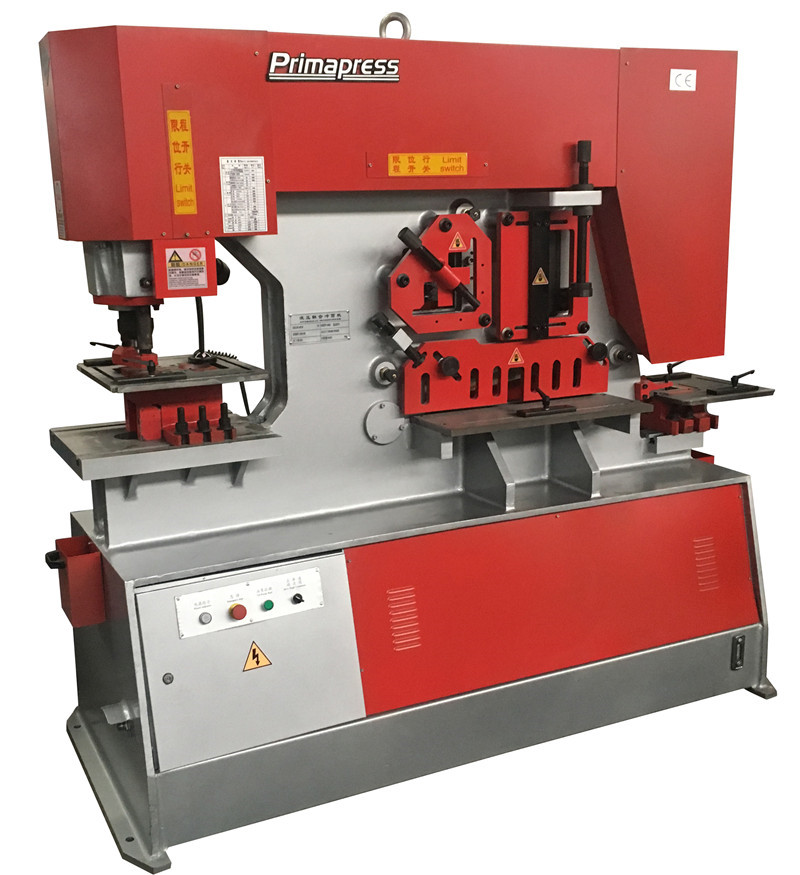

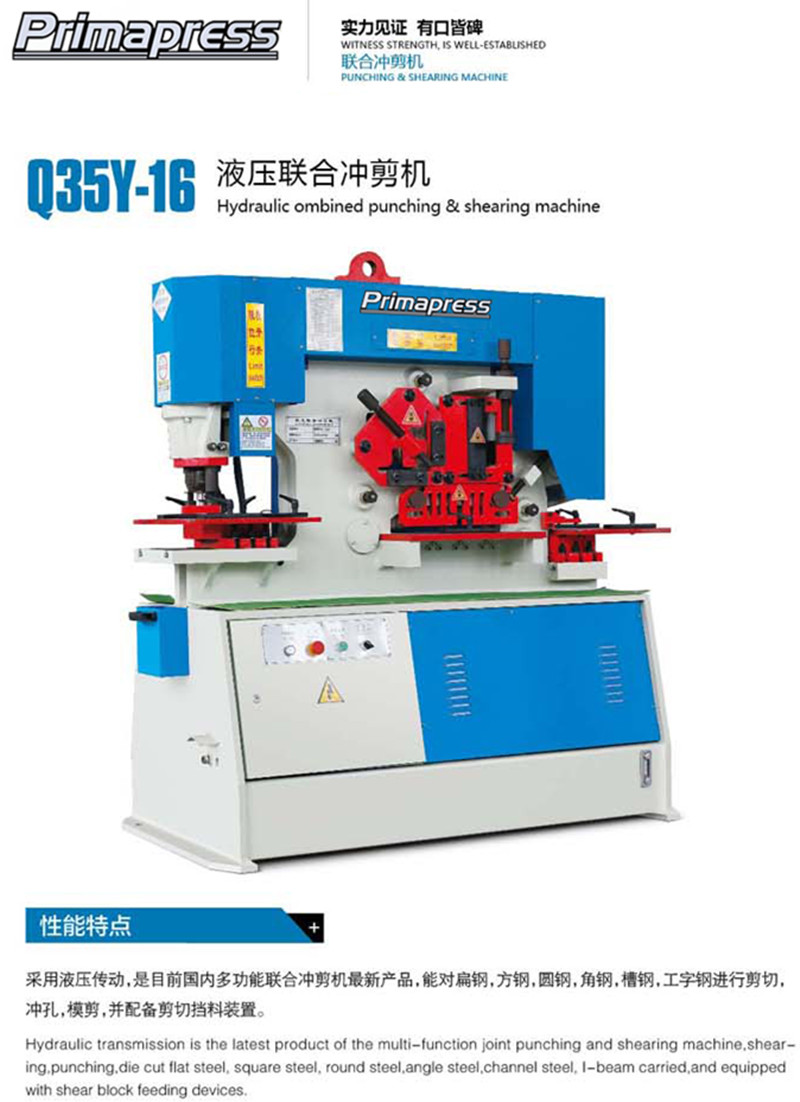

Q35Y Series hydraulic combined punching&shearing machine can cut and punch all kinds of materials such as plate, square bar, angle, round bar, channel and so on.Prima hydraulic ironworkers have been designed and built to the highest quality standards in the industry. This profitable machine will serve any grueling fabrication shop for decades to come. This machine is typically in stock for quick deliveries.

2.Equipment’s working environment:
1 Power supply:3Ph AC 220V/380/415 ± 10%, 50/60 HZ, optional to site.   2 ambient temperature:-10 ℃ ~ 45 ℃

3.Main functions:

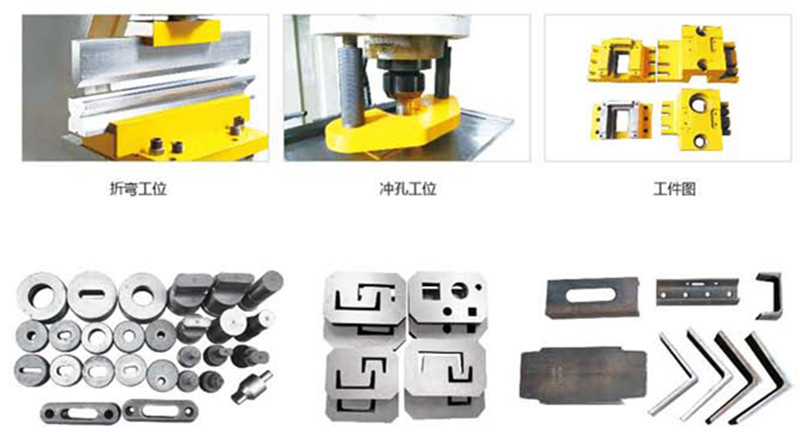

1)Punching: Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.

2)Shearing: Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.

3)Notching: Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.The notching section of this hydraulic ironworker is perfect for notching out metal plate, angle iron and much more. The notching station also has an over sized table with material stops. This section of the machine can also be outfitted with the optional vee notcher.

4)Bending: Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safety, function.

4.Main Components list:

1, Main motor: Siemens          2, Hydraulic valves and pump: Huader, Beijing, China best. Bosch optional.

2, Electrics:SCHNEIDER         4, Sealing:NOK, Japan          5,Tools:All heating treatment

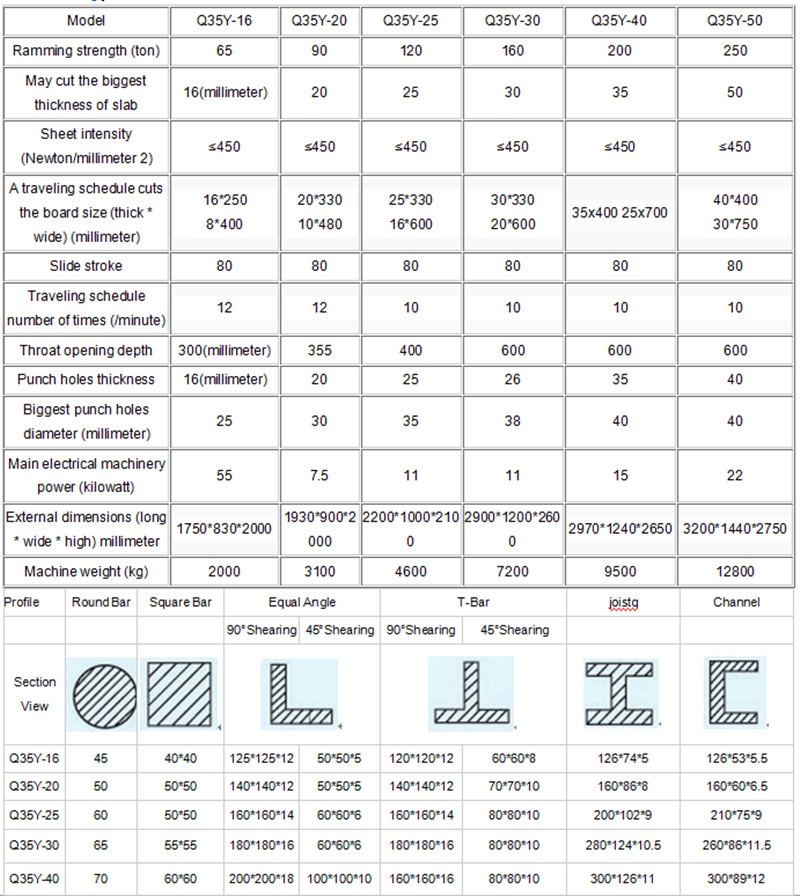

5.Technical specifications:

Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40 Q35Y-50
Ramming strength (ton) 65 90 120 160 200 250
May cut the biggest thickness of slab 16(millimeter) 20 25 30 35 50
Sheet intensity (Newton/millimeter 2) ≤450 ≤450 ≤450 ≤450 ≤450 ≤450
A traveling schedule cuts the board size (thick * wide) (millimeter) 16*250
8*400
20*330
10*480
25*330
16*600
30*330
20*600
35×400 25×700 40*40030*750
Slide stroke 80 80 80 80 80 80
Traveling schedule number of times (/minute) 12 12 10 10 10 10
Throat opening depth 300(millimeter) 355 400 600 600 600
Punch holes thickness 16(millimeter) 20 25 26 35 40
Biggest punch holes diameter (millimeter) 25 30 35 38 40 40
Main electrical machinery power (kilowatt) 55 7.5 11 11 15 22
External dimensions (long * wide * high) millimeter 1750*830*2000 1930*900*2000 2200*1000*2100 2900*1200*2600 2970*1240*2650 3200*1440*2750
Machine weight (kg) 2000 3100 4600 7200 9500 12800
