Raycus 1000w Fiber laser cutter machine, 1000w metal fiber laser cutting machines

video link:



1.Working area: 2500mm*1300mm/3000mm*1500mm/4000mm*1500mm
(8.2*4.26feet/9.8*4.9feet/13*4.9feet)
2.Fiber power: 500w/750w/1000w/1500w/2000w/3000w.

This fiber laser machine is manufactured in September,2017. With a beautiful appearance.

The working area is 2500mm*1300mm,3000mm*1500mm,4000mm*1500mm,fiber power can be 500w/750w/1000w/1500w/2000w/3000w,it is able to cut up to 20mm mild steel.

working area2500mm*1300mm/3000mm*1500mm/4000mm*1500mm laser power500w/750w/1000w/1500w/2000w/3000w
Maximum velocity of movement
100m/min
X/Y axis repeated positioning accuracy±0.02mm/m

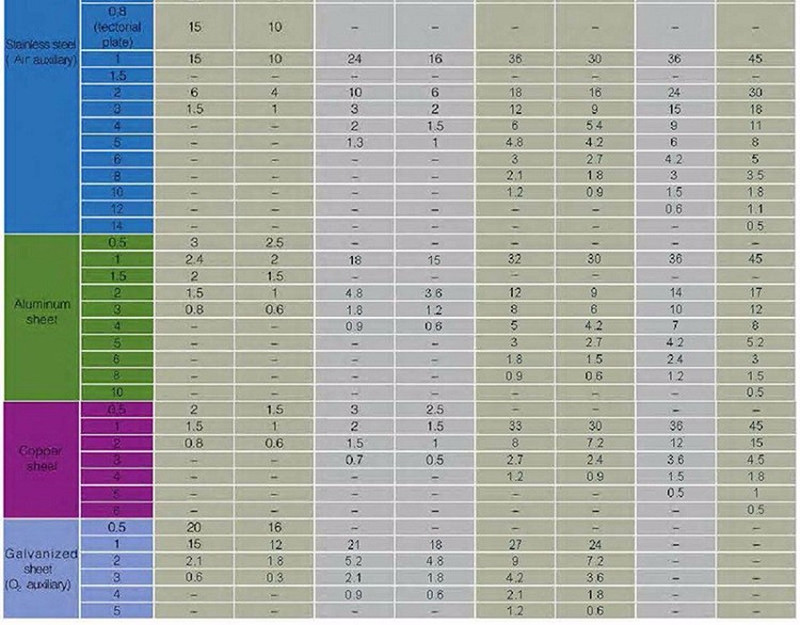

Cutting Materials and Thickness

Stainless Steel 0.4-3mm 0.4-4mm 0.4-5mm 0.4-6mm 0.4-8mm 0.4-10mm
Carbon Steel 0.4-6mm 0.4-10mm 0.4-12mm 0.4-14mm 0.4-16mm 0.4-20mm
Aluminum 0.4-2mm 0.4-3mm 0.4-3mm 0.4-4mm 0.4-6mm 0.4-8mm
Brass 0.4-3mm 0.4-3mm 0.4-3mm 0.4-8mm
Fiber Power 500W 750W 1000W 1500W 2000W 3000W

More details about other thin metal materials,just leave your message on line or send e-mail to [email protected] .

Features

  • Stable and reliable light path system and control system.
  • Imported original fiber laser generator with great and stable performance to have lifespan over 100,000 hours.
  • High cutting quality and efficiency with cutting speed up to 25m/min and beautiful,smooth cutting edge.
  • High performance reducer,gear and rack;guide rail and ball screw to guarantee stable running.

Application

The machine is specially used for cutting 0.4-20mm carbon steel;0.4-10mm stainless steel,galvanized steel;0.4-8mm aluminum alloy;0.4-6mm brass and various other thin metal.

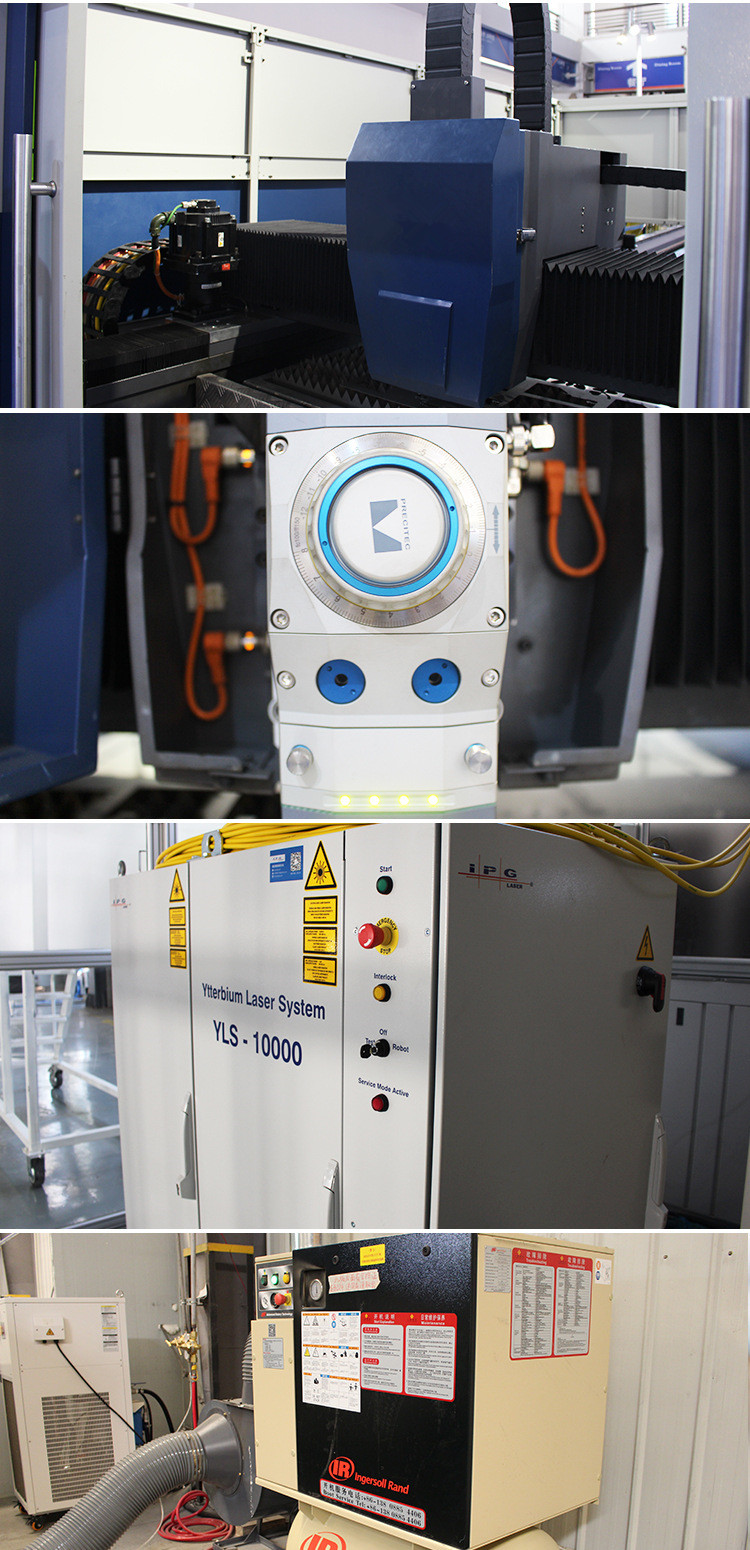

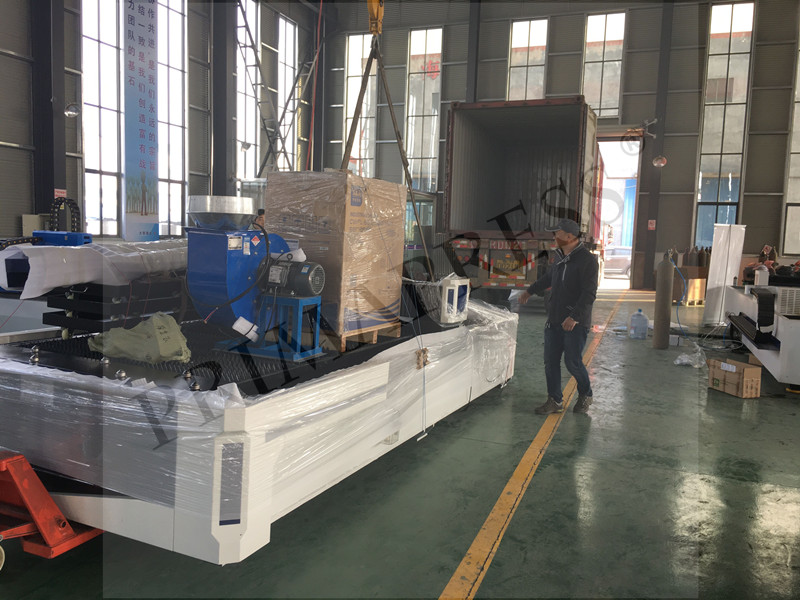

Real Life photos:



Our Services

Competitive Pricing

Due to our batch manufacturing, we will have a lower price with best quality machines.

Technical Support

When a breakdown occurs, our technicals are on call for both online & onsite correction.

Strict Quality Control

All machines are inspected by our quality control department before shipped out.

Spare Part Kits

Critical components & worn spare parts are offered to avoid unplanned stops.

Expert Solutions

We will provide you professional expert suggestions for your required machine.

Fast Delivery

All of the machine ordered by our customer will be delivered within 30 days.
