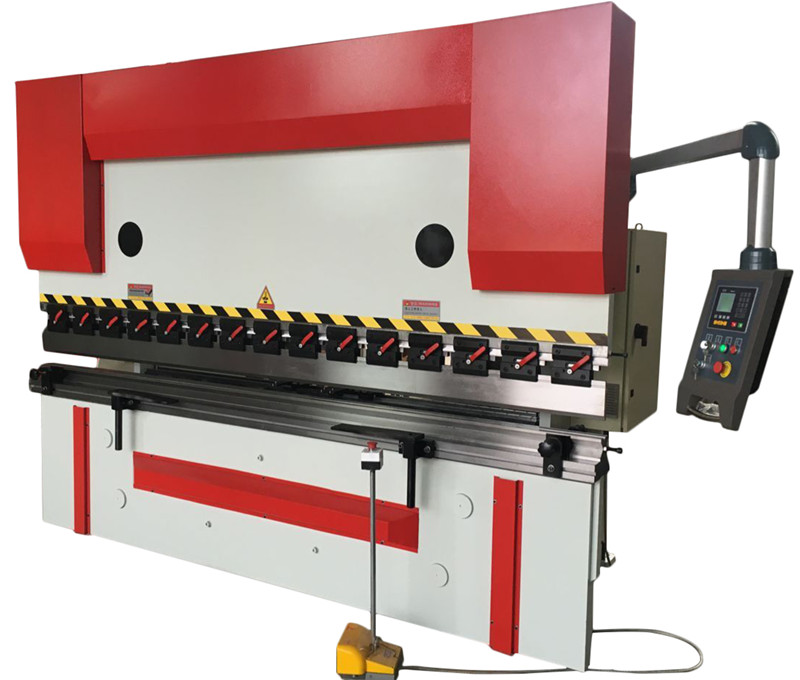

Metal sheet Hydraulic press brake, sheet metal hydraulic bending machine
video link:
- Main Features: Totally EU streamlined design,Monoblock by welding robots & aparatus andstress relief process by Annealing treatment.
2.Hydraulic synchronised positive stop design,and by Etsun NC programmable controller assuring accurate repeatability &ease of use.
3.Integrated hydraulic system(Bosch-Rexroth form Germany)allowing rapid approach switching automatically to slow bend.
4.Inverter with E21 NC System operated back gauge with quality support fingers also with vertical adjustment
5.Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays.
6.Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety.
- Standard Equipment:
- Estun E21NC controlSystem
- Powered Depth Y-axis&Back gaugeX-axis
- DELTAInvertercontrolled back gauge
- HIWIN Ball screws & Polished rodwith 0,05mm accuracy.
- Plate Support Arms
- Germany Bosch-Rexroth Hydraulic
- Germany EMB Tubing connector
- Germany Siemens Main Motor
- Telemecanique/SchneiderElectrics
- Hydraulic &Electrical overload protection
- Top and Bottom Tooling(86°,R0.6mm)
- Safety Standards(2006/42/EC):
- Safety Equipment:
1.EN 12622:2009 A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006 A1:2009
- Front finger Protection(Safety light curtain)
- South Korea Kacon Foot Switch(Level 4 of safety)
- Back metal safe fencewith CE standards
- Safety relay with Monitor the pedal switch and safety protection
- Estun E21s NC Control system:
- Monochrome LCD Box Panel.
- Integral factor programmable freely
- Automatic positioning control● Spindle allowance offset
- Internal time relay● Stock counter
- Backgauge position display, resolution in 0.05mm.
Technical specifications:
No | Model | Pressure
KN |
Bending
Leng (mm) |
Columns
Distance (mm) |
Open
Height (mm) |
Throat
Depth (mm) |
Slide
Stroke (mm) |
Motor
Power (kw) |
Machine
Size (mm) |
1 | 40T/2500 | 400 | 2500 | 1900 | 210 | 200 | 110 | 4 | 2600x1270x1980 |
2 | 63T/2500 | 630 | 2500 | 1900 | 235 | 250 | 120 | 5.5 | 2600x1360x2050 |
3 | 63T/3200 | 630 | 3200 | 2600 | 235 | 250 | 120 | 5.5 | 3300x1360x2050 |
4 | 80T/2500 | 800 | 2500 | 1900 | 320 | 320 | 150 | 7.5 | 2600x1400x2380 |
5 | 80T/3200 | 800 | 3200 | 2600 | 320 | 320 | 150 | 7.5 | 3300x1400x2380 |
6 | 80T/4000 | 800 | 4000 | 3100 | 320 | 320 | 150 | 7.5 | 4100x1400x2380 |
7 | 100T/2500 | 1000 | 2500 | 1900 | 330 | 320 | 150 | 7.5 | 2600x1400x2380 |
8 | 100T/3200 | 1000 | 3200 | 2600 | 330 | 320 | 150 | 7.5 | 3300x1400x2380 |
9 | 100T/4000 | 1000 | 4000 | 3100 | 330 | 320 | 150 | 7.5 | 4100x1400x2380 |
10 | 100T/5000 | 1000 | 5000 | 4100 | 330 | 320 | 150 | 7.5 | 5100x1400x2380 |
11 | 125T/2500 | 1250 | 2500 | 1900 | 330 | 320 | 150 | 7.5 | 2600x1400x2380 |
12 | 125T/3200 | 1250 | 3200 | 2600 | 330 | 320 | 150 | 7.5 | 3300x1400x2380 |
13 | 125T/4000 | 1250 | 4000 | 3100 | 330 | 320 | 150 | 7.5 | 4100x1400x2380 |
14 | 125T/5000 | 1250 | 5000 | 4100 | 330 | 320 | 150 | 7.5 | 5100x1400x2380 |
15 | 160T/2500 | 1600 | 2500 | 1900 | 400 | 320 | 200 | 11 | 2600x1550x2580 |
16 | 160T/3200 | 1600 | 3200 | 2600 | 400 | 320 | 200 | 11 | 3300x1550x2580 |
17 | 160T/4000 | 1600 | 4000 | 3100 | 400 | 320 | 200 | 11 | 4100x1550x2580 |
18 | 160T/5000 | 1600 | 5000 | 4100 | 400 | 320 | 200 | 11 | 5100x1550x2580 |
19 | 160T/6000 | 1600 | 6000 | 4800 | 400 | 320 | 200 | 11 | 6100x1550x2580 |
20 | 200T/2500 | 2000 | 2500 | 1900 | 435 | 320 | 200 | 15 | 2600x1650x2900 |
21 | 200T/3200 | 2000 | 3200 | 2600 | 435 | 320 | 200 | 15 | 3300x1650x2900 |
22 | 200T/4000 | 2000 | 4000 | 3100 | 435 | 320 | 200 | 15 | 4100x1650x2900 |
23 | 200T/5000 | 2000 | 5000 | 4100 | 435 | 320 | 200 | 15 | 5100x1650x2900 |
24 | 200T/6000 | 2000 | 6000 | 4800 | 435 | 320 | 200 | 15 | 6100x1650x2900 |
25 | 250T/2500 | 2500 | 2500 | 1900 | 435 | 320 | 200 | 18.5 | 2600x1750x3070 |
26 | 250T/3200 | 2500 | 3200 | 2600 | 435 | 320 | 200 | 18.5 | 3300x1750x3070 |
27 | 250T/4000 | 2500 | 4000 | 3100 | 435 | 320 | 200 | 18.5 | 4100x1750x3070 |
28 | 250T/5000 | 2500 | 5000 | 4100 | 435 | 320 | 200 | 18.5 | 5100x1750x3070 |
29 | 250T/6000 | 2500 | 6000 | 4800 | 435 | 320 | 200 | 18.5 | 6100x1750x3070 |
30 | 300T/3200 | 3000 | 3200 | 2600 | 435 | 350 | 200 | 22 | 3300x1850x3285 |
31 | 300T/4000 | 3000 | 4000 | 3100 | 435 | 350 | 200 | 22 | 4100x1850x3285 |
32 | 300T/5000 | 3000 | 5000 | 4100 | 435 | 350 | 200 | 22 | 5100x1850x3285 |
33 | 300T/6000 | 3000 | 6000 | 4800 | 435 | 350 | 200 | 22 | 6100x1850x3285 |
34 | 400T/3200 | 4000 | 3200 | 2600 | 520 | 400 | 250 | 37 | 3300x2000x3230 |
35 | 400T/4000 | 4000 | 4000 | 3100 | 520 | 400 | 250 | 37 | 4100x2000x3230 |
36 | 400T/5000 | 4000 | 5000 | 4100 | 520 | 400 | 250 | 37 | 5100x2000x3230 |
37 | 400T/6000 | 4000 | 6000 | 4800 | 520 | 400 | 250 | 37 | 6100x2000x3230 |
38 | 400T/7000 | 4000 | 7000 | 5600 | 520 | 400 | 250 | 37 | 7100x2000x3230 |
39 | 500T/4000 | 5000 | 4000 | 3100 | 600 | 400 | 300 | 45 | 4100x2400x3710 |
40 | 500T/5000 | 5000 | 5000 | 4100 | 600 | 400 | 300 | 45 | 5100x2400x3710 |
41 | 500T/6000 | 5000 | 6000 | 4800 | 600 | 400 | 300 | 45 | 6100x2400x3710 |
42 | 500T/7000 | 5000 | 7000 | 5600 | 600 | 400 | 300 | 45 | 7100x2400x3710 |
43 | 500T/8000 | 5000 | 8000 | 6200 | 600 | 400 | 300 | 45 | 8100x2400x3710 |
44 | 600T/4000 | 6000 | 4000 | 3100 | 600 | 400 | 300 | 45 | 4100x2650x3750 |
45 | 600T/5000 | 6000 | 5000 | 4100 | 600 | 400 | 300 | 45 | 5100x2650x3750 |
46 | 600T/6000 | 6000 | 6000 | 4800 | 600 | 400 | 300 | 45 | 6100x2650x3750 |
47 | 600T/7000 | 6000 | 7000 | 5600 | 600 | 400 | 300 | 45 | 7100x2650x3750 |
48 | 600T/8000 | 6000 | 8000 | 6200 | 600 | 400 | 300 | 45 | 8100x2650x3750 |
49 | 700T/4000 | 4000 | 4000 | 3100 | 640 | 500 | 300 | 55 | 4100x2850x3970 |
50 | 700T/5000 | 5000 | 5000 | 4100 | 640 | 500 | 300 | 55 | 5100x2850x3970 |
51 | 700T/6000 | 6000 | 6000 | 4800 | 640 | 500 | 300 | 55 | 6100x2850x3970 |
52 | 700T/7000 | 7000 | 7000 | 5600 | 640 | 500 | 300 | 55 | 7100x2850x3970 |
53 | 700T/8000 | 7000 | 8000 | 6200 | 640 | 500 | 300 | 55 | 8100x2850x3970 |
54 | 800T/4000 | 8000 | 4000 | 3100 | 800 | 500 | 400 | 2×37 | 4100x3200x4400 |
55 | 800T/5000 | 8000 | 5000 | 4100 | 800 | 500 | 400 | 2×37 | 5100x3200x4400 |
56 | 800T/6000 | 8000 | 6000 | 4800 | 800 | 500 | 400 | 2×37 | 6100x3200x4400 |
57 | 800T/7000 | 8000 | 7000 | 5600 | 800 | 500 | 400 | 2×37 | 7100x3200x4400 |
58 | 800T/8000 | 8000 | 8000 | 6200 | 800 | 500 | 400 | 2×37 | 8100x3200x4400 |
59 | 1000T/5000 | 10000 | 5000 | 4100 | 800 | 600 | 400 | 2×45 | 5100x3500x4950 |
60 | 1000T/6000 | 10000 | 6000 | 4800 | 800 | 600 | 400 | 2×45 | 6100x3500x4950 |
61 | 1000T/7000 | 10000 | 7000 | 5600 | 800 | 600 | 400 | 2×45 | 7100x3500x4950 |
62 | 1000T/8000 | 10000 | 8000 | 6200 | 800 | 600 | 400 | 2×45 | 8100x3500x4950 |
63 | 1200T/5000 | 12000 | 5000 | 4100 | 900 | 600 | 400 | 2×45 | 5100x3800x5200 |
64 | 1200T/6000 | 12000 | 6000 | 4800 | 900 | 600 | 400 | 2×45 | 6100x3800x5200 |
65 | 1200T/7000 | 12000 | 7000 | 5600 | 900 | 600 | 400 | 2×45 | 7100x3800x5200 |
66 | 1200T/8000 | 12000 | 8000 | 6200 | 900 | 600 | 400 | 2×55 | 8100x3800x5200 |
