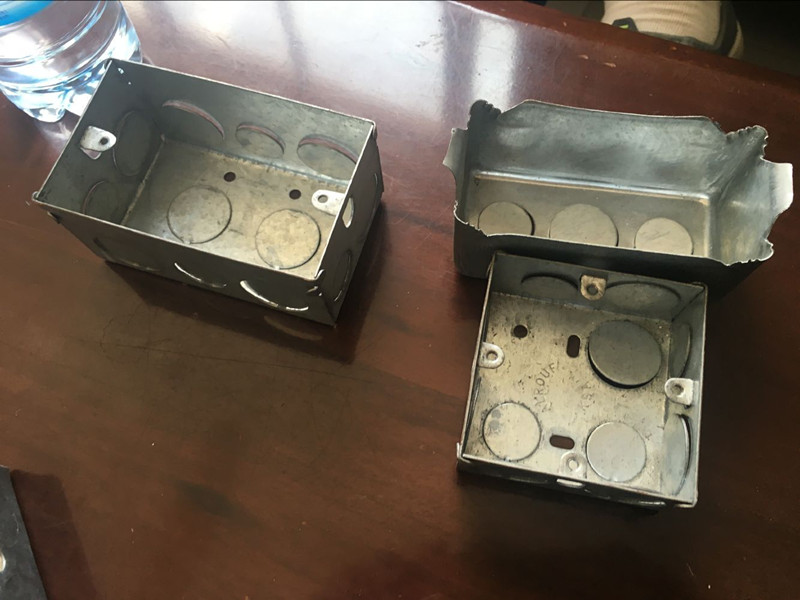

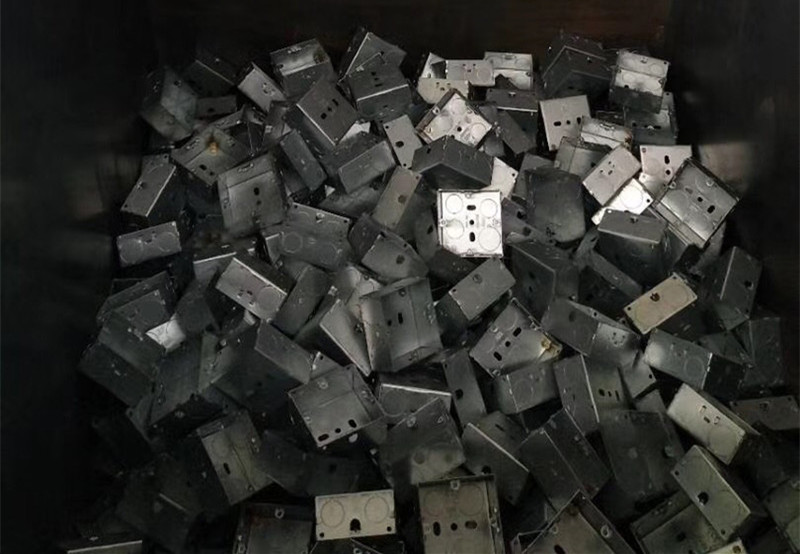

JH25 Double point press machine for electric box making pressing machines

Share on facebook
Share on twitter
Share on linkedin

Description

JH25 Double point press machine for electric box making pressing machines

video link:

https://youtu.be/oCgiR7QD6t0

Technical sheets

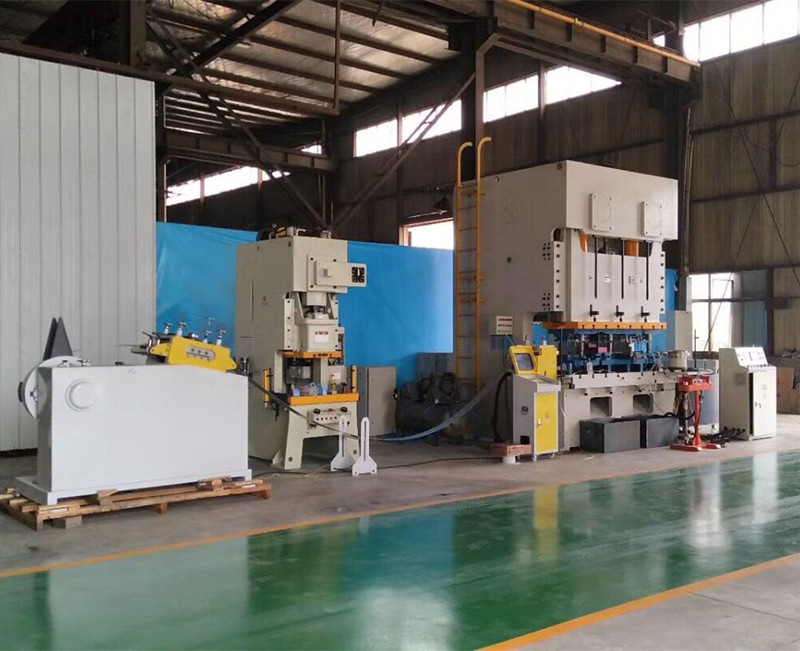

Metal Box Stamping Machine line:

Components for Automatic metal box production line:

(1) One Decoiler

(2) One leveling machine

(3) One NC feeder

(4) One punching press machine

(5) One product collecting table

(6) One Elcetrical control panel

(7) One punching mold

Production steps of automatic production line:

Decoil roll material—–Leveling material—–Feeding—–Punching—–Collecting product

Meeting respective usage and functions:

(1)  Making multi grips of stainless steel

(2)  Making sheet brace straps

(3)  Making suspended ceiling hanger and connector

(4)  Making various hardware fitting product

(5)  Making metal spare parts

(6)  Perforating metal roll material

Our advantage:

♦ It is widely used in punching,cutting,bending,droping,forming,shallow stretching and other pressing processes.

♦ It can realize full range brake for more safety of operator.

♦ It is easy to operate for new user. No matter it is used for manual or automatic production line

♦ It can design various size of product according to customer request.

♦ Automatic Production can improve production capacity,could save time,could save worker.

♦ We can provide 10 years technican support to you strong and timely support

Main features:

  1. This production line can work automatically. Worker control and regulate this production line through electric control equipment.Feeding,punching,cutting,bending automatically.
  2. Very reliable and steady as the controlling ststem complete with Siemens CPU 224 programmable logic controller (PLC)3. It’s integration of Gas & Electrical,centralized control.So feeding length,speed and other parameters are easy to set.We can design and manufacture different machines on request.J25/JH25series open back double point press with high performance◆    Welded body with steel plate and high intensity.

    ◆    Suitable for multiple dies automatic line and multi level dies continuous punching.

    ◆    Double crankshaft pitmen totally eliminating side forces by reverse rotation.

    ◆    Combined wet multi discs friction clutch and brake.

    ◆    Cluster gear adopts the flooding oil lubrication.

    ◆    Six-face rectangle lengthen guide.

    ◆    Equipped with hydraulic overload protecting device.

    ◆    Adopts electric shut height adjustment with digital display.

    ◆    Equipped with lifting balance cylinder.

    ◆    Duplex valves imported.

    ◆    Electric compelling grease lubrication system.

    ◆    Balancing cylinder adopts manual lubrication system.

    ◆    One set of blowing device.

    ◆    Controlled by PLC with international brand.

    ◆    Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.

    ◆    Equipped with optional air cushion device , photoelectric protector,which can used to work with various automatic equipments.

    ◆    Ⅰtype specifications is for standard product, Ⅱtype specifications is for customized  product.

    ◆    JH25 series adopts combined dry friction clutch and brake, fixed stroke , the other specifications are the same as J25 series.
