JH21 pneumatic Power press with wet clutch and hydraulic overload protector
Open Back Press with Fixed Bed, a kind of thin sheet metal processing universal press imported advanced technology of AIDA company in Japan, which is suitable for shearing, punching, blanking, bending and shallow drawing. The structural feature is as follows:
BRIEF INTRODUCTION OF STRUCTURE
1,The frame is welding with whole steel plate which has high rigidity, reasonable structure and beautiful design.
2,The press adopts the vertical crankshaft structure. The distance of fulcrum is short and the crank is rigid.
Driving gear is installed into the frame and gear is immersed in oil reservoir. Customer could choose Electromagnetic governor(Wannan motor factory), which is stepless speed regulation within a certain range and enlarge the area of craft.
3,The press adopts Italy low inertia combined wet friction clutch and brake made in Shanghai OMPI, which has little passive inertia, low energy consumption, reliable interlock of clutch and brake and long longevity.
4,The slide is a whole cast form construction which adopts hydraulic overload protector made in Showa, Japan with agile and reliable action. After overload, it can reset automatically to reduce the down time and improve the availability of press. High pressure oil seal which is imported from German is installed in slide high pressure cylinder.
5,The shut height adopts electric adjustment, which has digital display. Its display is 0.10mm.
The press adopts hexahedral rectangle lengthen gib, which has high guiding precision and steady precision.
The press has pneumatic balancer, which reduce the second stroke. It runs smoothly to improve the dynamic precision of press.
6,The control part adopts PLC from Mitsubishi, which is efficient to guarantee the reliability of control part.
7,The press adopts dual valve from TACO, Japan, which can guarantee the safety and reliability of clutch.

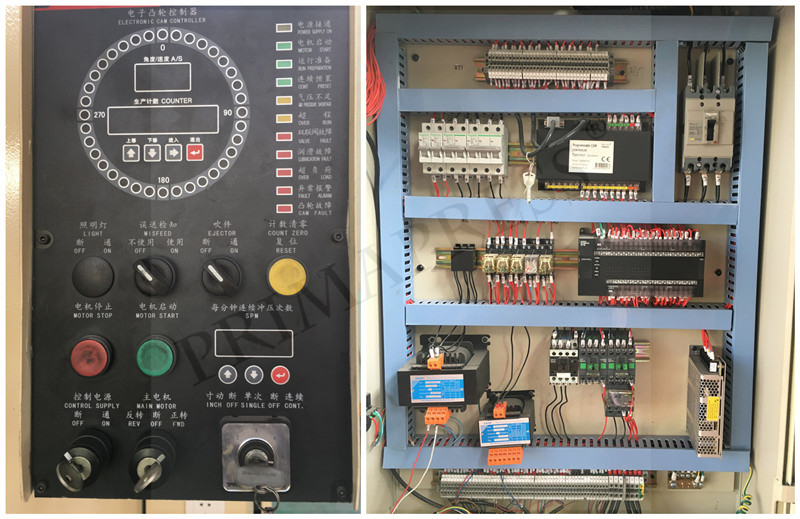

8,The press adopts cam controller which be combined with proximity switch. It can send signal exactly within the range of 360°and control the criterion of various actions and the harmony of assist machine to improve the reliability of press. Besides, the press has two-hand operating button and foot pedal switch, which can realize Continuous, Single and Inch mode.
JH21-25B |
JH21-25 |
JH21–45 |
JH21-63 |
JH21-80 |
JH21-110 |
JH21-125 |
|||
Capacity |
kN |
250 |
250 |
450 |
630 |
800 |
1100 |
1250 |
|
Nominal Stroke |
mm |
3 |
3 |
4 |
4 |
5 |
6 |
6 |
|
Slide Stroke |
mm |
60 |
80 |
100 |
120 |
140 |
160 |
160 |
|
SPM |
Fixed |
min-1 |
100 |
100 |
80 |
70 |
60 |
50 |
50 |
Variable |
80-120 |
80-120 |
70-90 |
60-80 |
50-70 |
40-60 |
40-60 |
||
Max. Die Height |
mm |
200 |
250 |
270 |
300 |
320 |
350 |
350 |
|
Die Height Adjustment |
mm |
50 |
50 |
60 |
80 |
80 |
80 |
80 |
|
Between Slide Center & Frame |
mm |
160 |
210 |
230 |
300 |
300 |
350 |
350 |
|
Bolster (FB×LR) |
mm |
300×680 |
400×700 |
440×810 |
580×900 |
580×1000 |
680×1150 |
680×1150 |
|
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) |
mm |
130×260 |
φ170×20×φ150 |
φ180×30×φ160 |
φ200×40×φ180 |
φ200×40×φ180 |
φ260×50×φ220 |
φ260×50×φ220 |
|
Bolster Thickness |
mm |
70 |
80 |
110 |
110 |
120 |
140 |
140 |
|
Bolster Opening (Dia./FB×LR) |
mm |
200×270 |
260×250 |
300×300 |
390×460 |
390×520 |
420×540 |
420×540 |
|
Slide Area (FB×LR) |
mm |
270×330 |
300×360 |
340×410 |
400×480 |
420×560 |
500×650 |
540×680 |
|
Shank Hole (Dia.×Dpth) |
mm |
φ40×60 |
φ40×60 |
φ40×60 |
φ50×80 |
φ50×80 |
φ60×80 |
φ60×80 |
|
Between Columns |
mm |
448 |
450 |
550 |
560 |
640 |
760 |
760 |
|
Main Motor Power |
kW |
3 |
3 |
5.5 |
5.5 |
7.5 |
11 |
11 |
|
Outline Size (FB×LR×H) |
mm |
1150×1050×2050 |
1300×1050×2050 |
1390×1200×2400 |
1580×1210×2520 |
1640×1280×2700 |
1850×1450×3060 |
1850×1490×3060 |
|
Net Weight |
kg |
2200 |
2600 |
3450 |
5400 |
7000 |
9340 |
9900 |
JH21-160B |
JH21-200 |
JH21-200B |
JH21-250 |
JH21-250B |
JH21-315 |
JH21-315B |
|||
Capacity |
kN |
1600 |
2000 |
2000 |
2500 |
2500 |
3150 |
3150 |
|
Nominal Stroke |
mm |
6 |
6 |
6 |
8 |
8 |
8 |
8 |
|
Slide Stroke |
mm |
160 |
180 |
200 |
200 |
250 |
200 |
250 |
|
SPM |
Fixed |
min-1 |
40 |
35 |
35 |
30 |
30 |
30 |
30 |
Variable |
35-50 |
30-40 |
30-40 |
25-35 |
25-35 |
25-35 |
25-35 |
||
Max. Die Height |
mm |
350 |
390 |
450 |
430 |
500 |
430 |
550 |
|
Die Height Adjustment |
mm |
110 |
110 |
110 |
120 |
120 |
120 |
120 |
|
Between Slide Center & Frame |
mm |
380 |
390 |
390 |
420 |
420 |
420 |
460 |
|
Bolster (FB×LR) |
mm |
740×1300 |
760×1400 |
760×1400 |
800×1400 |
800×1400 |
800×1400 |
880×1600 |
|
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) |
mm |
φ300×50×φ260 |
φ300×50×φ260 |
φ300×50×φ260 |
φ320×50×φ280 |
φ320×50×φ280 |
φ320×50×φ280 |
φ320×50×φ280 |
|
Bolster Thickness |
mm |
150 |
160 |
160 |
170 |
170 |
170 |
200 |
|
Bolster Opening (Dia./FB×LR) |
mm |
φ470 |
φ470 |
φ470 |
370×570 |
370×570 |
440×580 |
440×580 |
|
Slide Area (FB×LR) |
mm |
580×770 |
600×800 |
600×800 |
650×850 |
650×850 |
650×850 |
700×950 |
|
Shank Hole (Dia.×Dpth) |
mm |
φ65×85 |
φ65×90 |
φ65×90 |
φ70×90 |
φ70×90 |
φ70×90 |
φ70×90 |
|
Between Columns |
mm |
850 |
870 |
870 |
960 |
960 |
920 |
920 |
|
Main Motor Power |
kW |
15 |
18.5 |
18.5 |
22 |
22 |
30 |
30 |
|
Outline Size (FB×LR×H) |
mm |
2280×1550×3240 |
2500×1580×3320 |
2500×1580×3420 |
2730×1640×3550 |
2770×1700×4060 |
2770×1650×3550 |
2850×1700×4450 |
|
Net Weight |
kg |
14500 |
17000 |
17350 |
23500 |
24500 |
25000 |
28000 |
JH21-400 |
JH21-400B |
|||
Capacity |
kN |
4000 |
4000 |
|
Nominal Stroke |
mm |
10 |
10 |
|
Slide Stroke |
mm |
200 |
250 |
|
SPM |
Fixed |
min-1 |
25 |
25 |
Variable |
20-30 |
20-30 |
||
Max. Die Height |
mm |
430 |
550 |
|
Die Height Adjustment |
mm |
120 |
120 |
|
Between Slide Center & Frame |
mm |
420 |
490 |
|
Bolster (FB×LR) |
mm |
760×1400 |
940×1800 |
|
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) |
mm |
φ320×50×φ280 |
φ320×50×φ280 |
|
Bolster Thickness |
mm |
180 |
200 |
|
Bolster Opening (Dia./FB×LR) |
mm |
440×580 |
440×580 |
|
Slide Area (FB×LR) |
mm |
690×900 |
720×1000 |
|
Shank Hole (Dia.×Dpth) |
mm |
φ70×90 |
φ70×90 |
|
Between Columns |
mm |
960 |
960 |
|
Main Motor Power |
kW |
37 |
37 |
|
Outline Size (FB×LR×H) |
mm |
2830×1680×3890 |
3100×1900×4600 |
|
Net Weight |
kg |
29500 |
34000 |

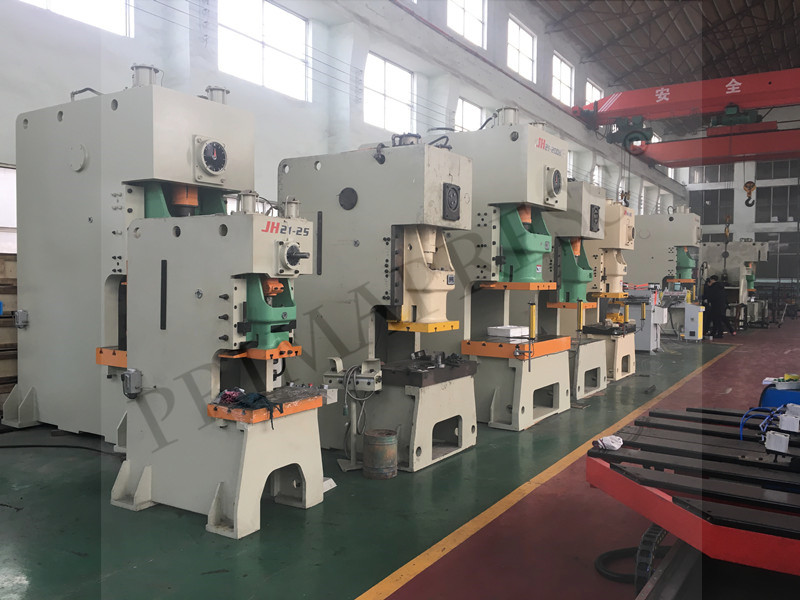

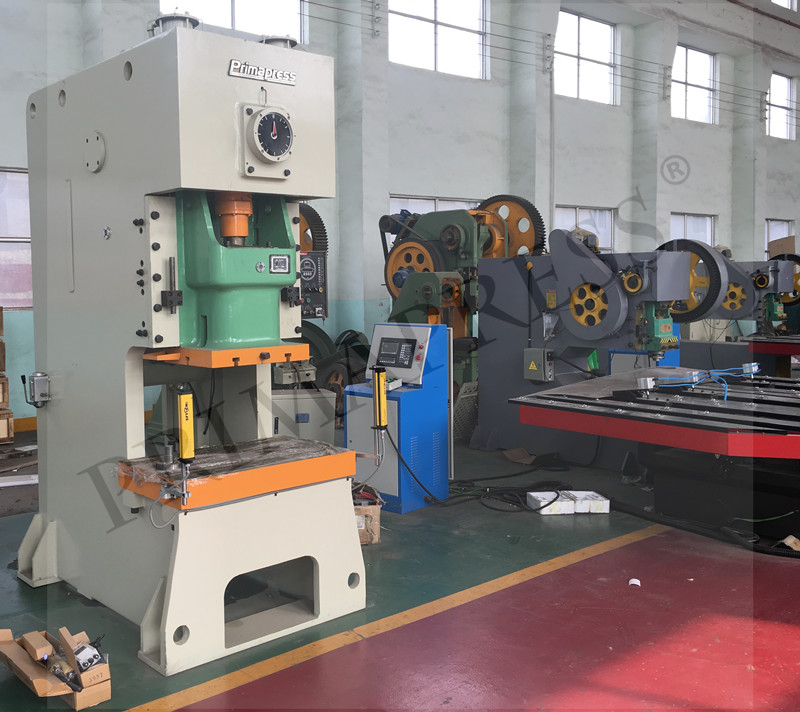

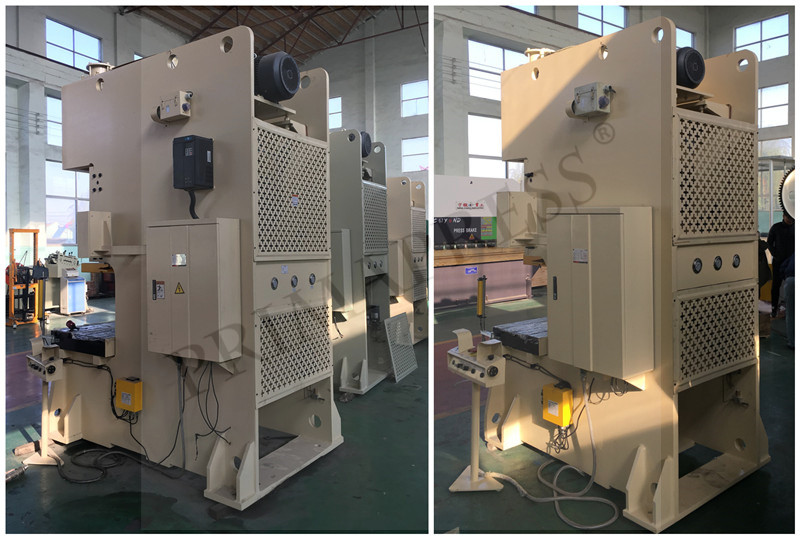

Real life photos:
