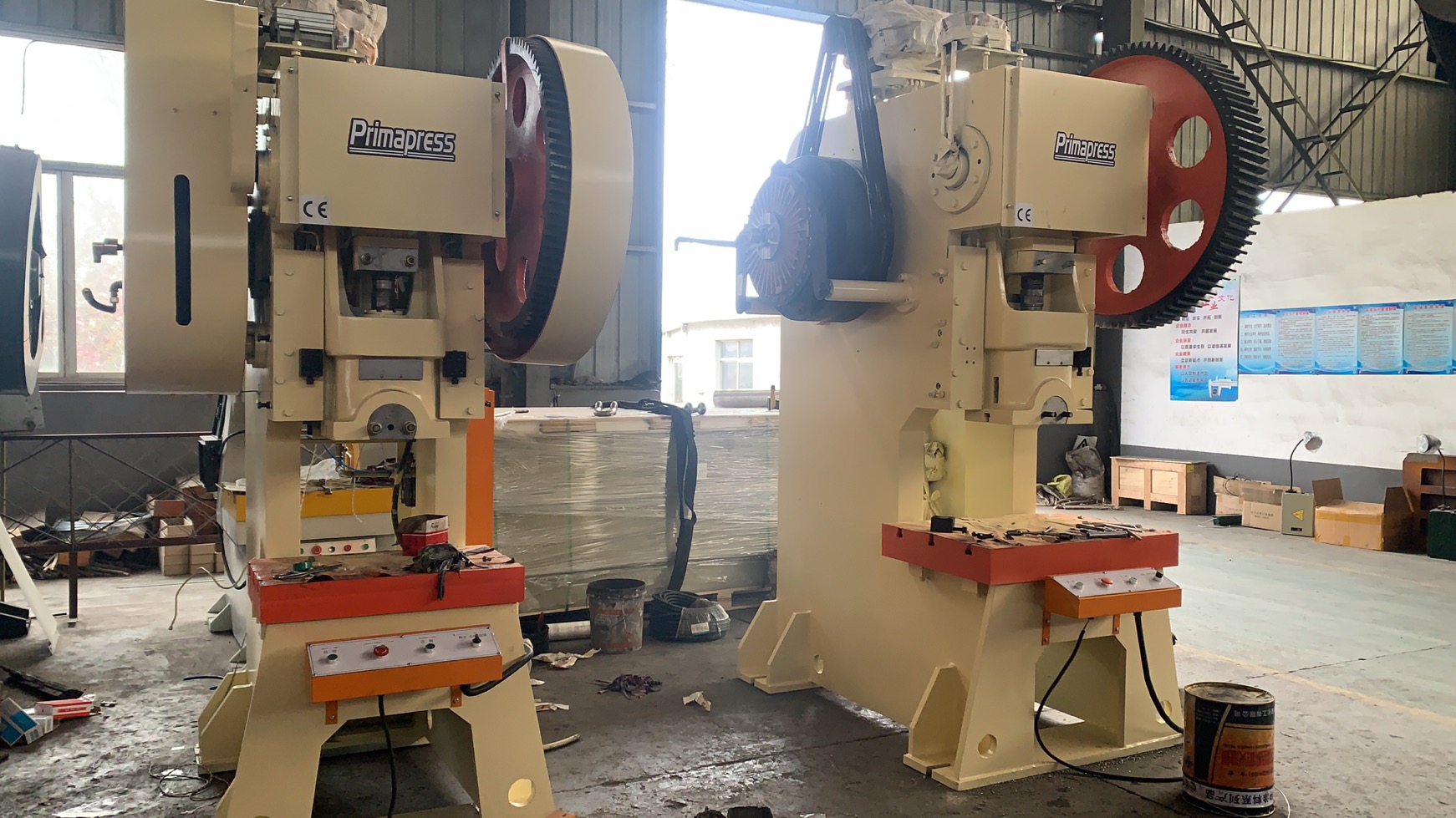

JE21 series open back power press punching machine with pneumatic clutch
Categories Power Press Machine, Press Machine
DESCRIPTION
JE21 series open back power press punching machine with pneumatic clutch
JE21 series economic open back press with fixed bed
◆ Adopts horizontally placed crankshaft.
◆ Combined dry type pneumatic friction clutch and brake.
◆ Manual shut height adjustment with scale display.
◆ JE21-100 and above adopts lifting balance device
◆ Safety Duplex valves.
◆ Control by PLC with international brand.
JE21-16D | JE21-25D | JE21-40D | JE21-63D | JE21-80D | JE21-100D | JE21-125D | ||
Capacity | kN | 160 | 250 | 400 | 630 | 800 | 1000 | 1250 |
Nominal Force | mm | 2 | 2.5 | 4 | 4 | 5 | 6 | 6 |
Slide Stroke | mm | 0-70 | 0-80 | 20-120 | 20-120 | 10-130 | 16-140 | 16-140 |
SPM | min-1 | 130 | 100 | 70 | 60 | 53 | 40 | 40 |
Max. Die Height | mm | 170 | 180 | 220 | 290 | 330 | 320 | 320 |
Die Height Adjustment | mm | 30 | 70 | 80 | 80 | 100 | 100 | 100 |
Between Slide Center & Frame | mm | 170 | 210 | 250 | 300 | 300 | 380 | 380 |
Bolster (FB×LR) | mm | 320×480 | 400×600 | 480×710 | 570×760 | 580×860 | 710×1100 | 720×1200 |
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) | mm | φ100 | φ120 | φ220×25×φ180 | φ200×45×φ180 | φ200×45×φ180 | φ260×50×φ220 | φ260×50×φ220 |
Bolster Thickness | mm | 60 | 70 | 80 | 90 | 100 | 120 | 120 |
Bolster Opening(Dia.×FB×LR) | mm | 160×160 | 180×180 | 220×220 | Steel220×250 | Steel220×260 | 260×290 | 260×290 |
Castingφ280×220
×320 |
Castingφ280×220
×380 |
|||||||
Slide Area (FB×LR) | mm | 180×200 | 210×250 | 270×320 | 280×320 | 280×380 | 420×560 | 420×560 |
Shank Hole (Dia.×Dpth) | mm | φ40×60 | φ40×70 | φ50×70 | φ50×80 | φ60×75 | φ60×80 | φ60×80 |
Between Columns | mm | 250 | 330 | 410 | Steel470 | Steel450 | 630 | 620 |
Casting320 | Casting410 | |||||||
Motor Power | kW | 2.2 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Outline Size (FB×LR×H) | mm | 1050×1175×1830 | 1560×1300×2210 | 1620×1450×2350 | 1700×1550×2640 | 1720×1630×2720 | 2200×1850×3050 | 2200×1850×3050 |
Net Weight | kg | 1600 | 2204 | 3286 | Steel4550 | Steel5500 | 9000 | 11000 |
Casting5000 | Casting6412 |
