Hydraulic Swing Beam Metal shearing machine, swing arm shear machine
Categories Cutting Machine, Guillotine Shear Machine
High strength, high rigidity box type welding machine frame, high precision linear guide and rack driving and bilateral drive system to strengthen the accuracy and stability of the machine running ; Integrally cast aluminum beam, strong rigidity, light weight, small inertia, fast response, machine acceleration of 0.6 G, empty moving speed of 72 m/s, improving the processing ability of the equipment. Equipment machining accuracy for a long time to keep within / – 0.05 mm.
DESCRIPTION

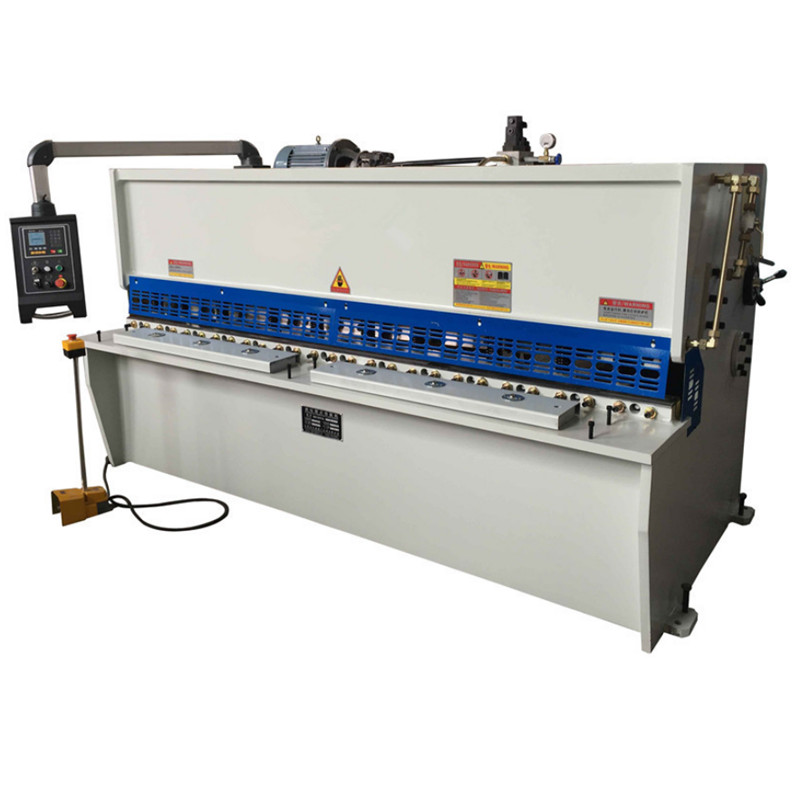

Hydraulic Swing Beam Metal shearing machine
Main Features
- Totally EU streamlined design,Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
- Adopt integrated hydraulic system, more reliable and easy for maintenance.and the hydraulic system from Bosch-Rexroth,Germany.
- The Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity.
- The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21with Delta inverter.
- Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
- Safe fence and the electric inter locker have been designed for the machine to ensure the operation safety to CE regulation.

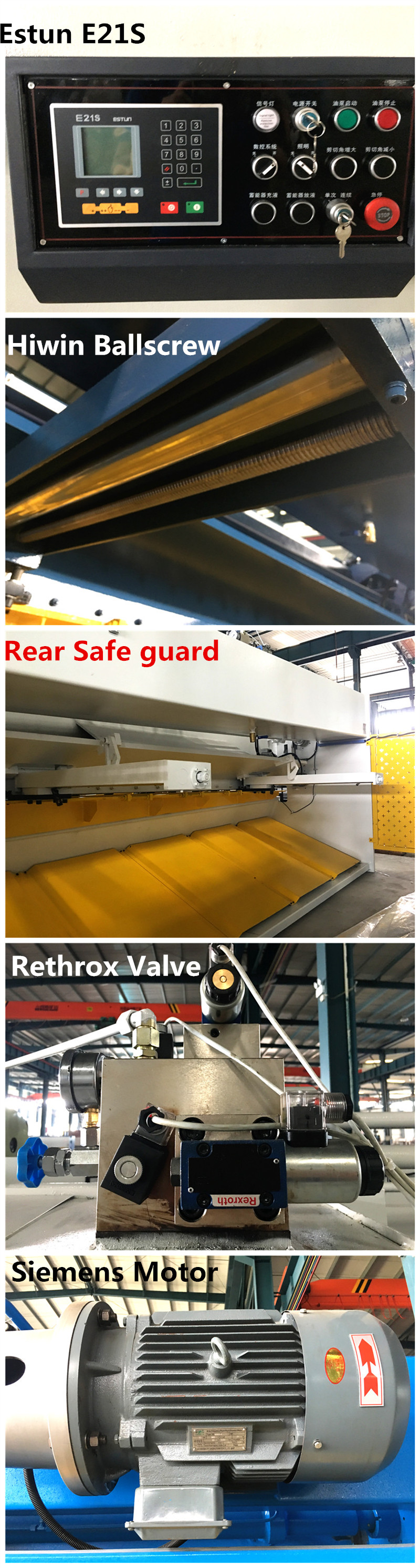

Standard Equipment
- Estun E21sNC controlSystem
- PoweredBack gaugeX-axis
- DELTAInvertercontrolled back gauge
- HIWIN Ball screws & Polished rodwith 0,05mm accuracy.
- Squaring Arm and Front Support Arms
- Germany Bosch-Rexroth Hydraulic
- Germany EMB Tubing connector
- Germany Siemens Main Motor
- Telemecanique/SchneiderElectrics
- Hydraulic &Electrical overload protection
- Cutting Line Illumination and wire for shadow line cutting
- Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)
Safety Equipment
- Safety Standards(2006/42/EC):1.EN 12622:2009 A1:2013 2.EN ISO 12100:2010 3.EN 60204-1:2006 A1:2009
- Front finger Protection(Safety light curtain)
- South Korea Kacon Foot Switch(Level 4 of safety)
- Back metal safe fencewith CE standards
- Safety relay with Monitor the pedal switch and safety protection4,
Main Configuration
Serial No. | Part Description | Brief instruction/ Orignal | Other | |||||
1- | NC Control system | ■E21s NC System□E10s NC System | ||||||
2- | Electrical components | Schneider Electrical from French | Travel switch & Limit switch | |||||
3- | Main Motor | Siemens from Germany Brand | ||||||
4- | BackGauge & RAM Drive | Inverter from Taiwan delta | Accurate positioning control | |||||
5- | Foot switch | KACON from South Korea | ||||||
6- | Hydraulic System | Bosch-Rexroth form Germany | ||||||
Sealing Element | PARKER from U.S.A Brand | |||||||
7- | Tubing connector | EMB form Germany Brand | ||||||
8- | Ball screw/ Polished rod | HIWIN from TaiWan Brand | ||||||
2.Equipment | ||||||||
1- | Pneumatic sheet support system | □Yes■No | ||||||
2- | Rear sheet sliding plates | ■Yes □No | Fixed type(metal) | |||||
3- | Angle Gauge | □Yes■No | ||||||
4- | Squaring Arm(800mm) | ■Yes □No | ||||||
5- | Inverter accurate control | ■Yes □No | ||||||
6- | Light curtains for finger Protection | □Yes■No | Reset button | |||||
7- | Back safety Sensors | □Yes■No | ||||||
8- | Back metal fence Safety | ■Yes □No | ||||||
9- | Safety standards | ■CE □CSA □NR-12 □OSHA |
Main specifications
Shearing thickness | Shearing width | Number of stroke mm | Backgauge range mm | Shearing angler | Backgauge range mm | Motor power KW | |
6×2500 | 6 | 2500 | 16~35 | 20-600 | 30’-1°30 | 600 | 7.5 |
6×3200 | 6 | 3200 | 14~35 | 20-600 | 30’-1°30 | 600 | 7.5 |
6×4000 | 6 | 4000 | 10~30 | 20-600 | 30’-1°30 | 600 | 7.5 |
6×5000 | 6 | 5000 | 10~30 | 20-800 | 30’-1°30 | 800 | 11 |
6×6000 | 6 | 6000 | 8~25 | 20-800 | 30’-1°30 | 800 | 11 |
8×2500 | 8 | 2500 | 14~30 | 20-600 | 30’-1°30 | 600 | 11 |
8×3200 | 8 | 3200 | 12~30 | 20-600 | 30’-2° | 600 | 11 |
8×4000 | 8 | 4000 | 10~25 | 20-600 | 30’-2° | 600 | 11 |
8×5000 | 8 | 5000 | 10~25 | 20-800 | 30’-2° | 800 | 15 |
8×6000 | 8 | 6000 | 8~20 | 20-800 | 30’-2° | 800 | 15 |
12×2500 | 12 | 2500 | 12~25 | 20-800 | 30’-2° | 800 | 15 |
12×3200 | 12 | 3200 | 12~25 | 20-800 | 30’-2° | 800 | 15 |
12×4000 | 12 | 4000 | 8~20 | 20-800 | 30’-2° | 800 | 15 |
12×5000 | 12 | 5000 | 8~20 | 20-800 | 30’-2° | 800 | 22 |
12×6000 | 12 | 6000 | 6~20 | 20-1000 | 30’-2° | 1000 | 30 |
16×2500 | 12 | 2500 | 12~20 | 20-800 | 30’-1°30 | 800 | 22 |
16×3200 | 16 | 3200 | 12~20 | 20-800 | 30’-1°30 | 800 | 22 |
16×4000 | 16 | 4000 | 8~15 | 20-800 | 30’-1°30 | 800 | 22 |
16×5000 | 16 | 5000 | 8~15 | 20-1000 | 30’-1°30 | 1000 | 30 |
16×6000 | 16 | 6000 | 6~15 | 20-1000 | 30’-1°30 | 1000 | 37 |
20×2500 | 20 | 2500 | 10~20 | 20-800 | 30’-3° | 800 | 30 |
20×3200 | 20 | 3200 | 10~20 | 20-800 | 30’-3° | 800 | 30 |
1, photoelectric conversion efficiency can reach 30%, two times that of CO2;
2, less consumption of power source, CO2 is 20% ~ 30%;
3, no laser working gas, can save a lot of laser maintenance cost;
4, optical fiber transmission, without reflection lens, do not need to adjust the light path.
Serial No. | Name | Unit | QC12K 6×6000 | |
1- | Cutting Capacity | <450N/mm2 | mm | 6 |
<700N/mm2 | mm | 4 | ||
2- | Cutting Length | ( A ) | mm | 6000 |
3- | Throat depth | mm | 100 | |
4- | Cutting Angle | degree | 2’ | |
5- | Blade length | mm. | 6100 | |
6- | Stroke per minute | Cuts/min | 10~12 | |
7- | Back gauge | Travel | mm | 600 |
Speed | mm / sec | 180 | ||
8- | Sliding Front Arms | Number | Pcs. | 8 |
Length | mm | 800 | ||
9- | Motor Power | kw | 11 | |
10- | Length | ( L ) | mm | 6480 |
11- | Width | ( E ) | mm | 2100 |
12- | Height | ( H ) | mm | 2300 |
13- | Weight | kg | 16500 |
Features
- Backgauge control
- Control for general AC motors, frequency inverter
- Intelligent positioning
- Double programmable digital output
- Stock counter
- Program memory of up to 40 programs up to 25 steps per program
- One side positioning
- Retract function
- One key backup/ restore of parameters
- mm/ Inch
- Chinese /English
