DESCRIPTION

Hydraulic Guillotine shear , Sheet metal Guillotine shearing machines

Video link:

Prima can supplier heavy duty guillotine shearing machine from 6-12m length, thickness from 1-60mm .

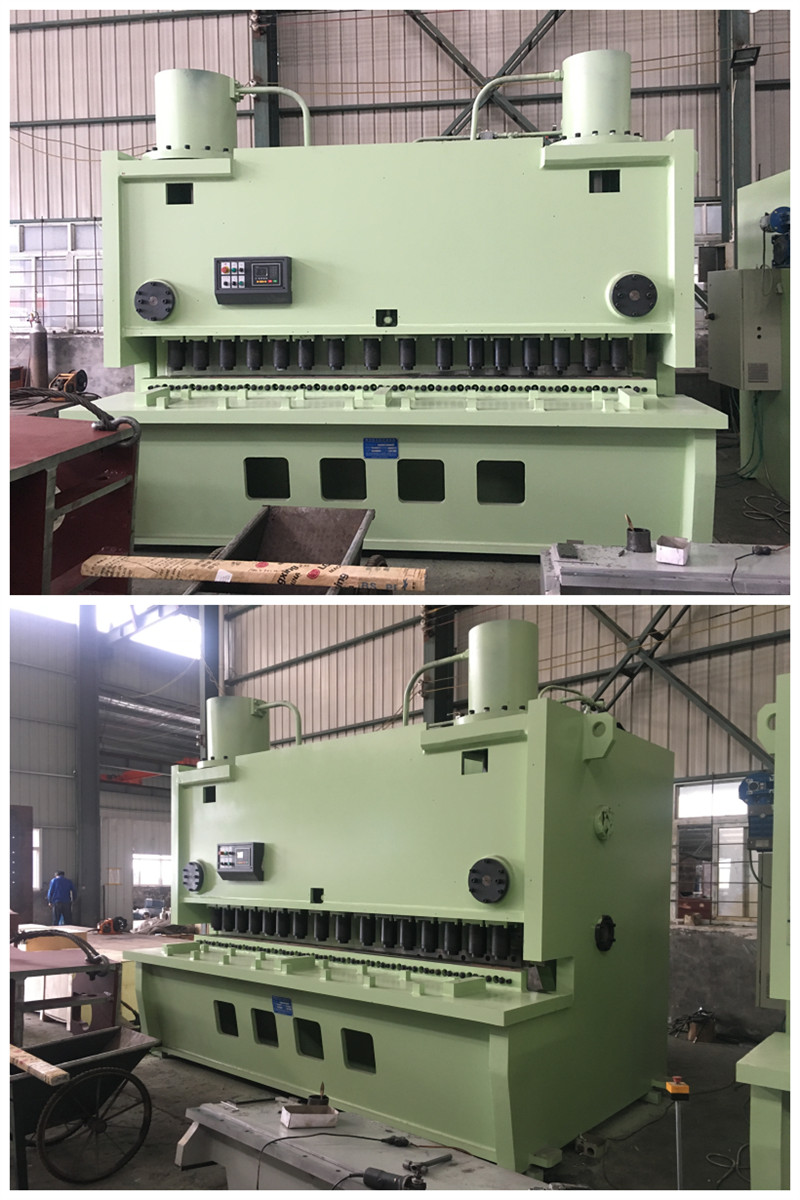

(1),Introduction of the hydraulic guillotine shearing machine:

1,This machine adopts steel plate welding structure , have high strength and good durability.
2,The frame is entirely welded with steel plates,and treated to relive stress by tempering.
3,Hydraulic drive, return of knife beam is smooth and prompt by nitrogen cylinder.
4,The portable and prompt adjusment of the blades gap and the value of gap are indicated by digital, convenient and fast.
5, Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6,Protection fence to ensure the operation safety.
7,Digital display device for size of back gauge and shearing times available.
8,The rectangular monoblock blades featuring long life with 4 cutting edges,quality high-carbon high-chrome blades D2 quality.
9, European key electrics and Hydraulic Valves Advanced integral hydraulic system with good reliablity-Imported from Germany.

(2),Standard Equipment:

1,Estun E21s NC control System

2,Powered Back gaugeX-axis

3,DELTA Inverter controlled back gauge

4,HIWIN Ball screws & Polished rod with 0,05mm accuracy.

5,Squaring Arm and Front Support Arms

6,Germany Bosch-Rexroth Hydraulic

7,Germany EMB Tubing connector

8,Germany Siemens Main Motor

9,Tele mecanique/Schneider Electrics

10,Hydraulic &Electrical overload protection

11,Cutting Line Illumination and wire for shadow line cutting

12,Top blade with two cutting edges and bottom blade with four cutting edges.(6CrW2Si)

Features :

  1. Hydraulic individual sheet material clamping system with nylon inserts to protect material from indentation from the clamping cylinders along full length of machine.
    2. Simplified blade gap adjustments to allow for a wide range of material types
    3. Transfer balls inserted into work table allowing material to be easily moved to the cut position and squaring arm.
No Model Max cut thickness

mm

 Max cut length

mm

 Ram Stroke

n/min

 Cutting angle

°

 Motor

kw

 Machine Szie

mm
1 4×2500 4 2500 20-40 0.5-1.5 5.5 3100x1600x1700
2 4×3200 4 3200 20-40 0.5-1.5 7.5 3800x1800x1700
3 6×2500 6 2500 16-35 0.5-1.5 7.5 3150x1650x1700
4 6×3200 6 3200 14-35 0.5-1.5 7.5 3860x1810x1750
5 6×4000 6 4000 10-30 0.51.5 7.5 4630x2030x1940
6 6×5000 6 5000 10-30 0.5-1.5 11 5660x2050x1950
7 6×6000 6 6000 8-25 0.5-1.5 11 6680x2200x2500
8 8×2500 8 2500 14-30 0.5-1.5 11 3170x1700x1700
9 8×3200 8 3200 12-30 0.5-1.5 11 3870x1810x1780
10 8×4000 8 4000 10-25 0.5-1.5 11 4680x1900x1860
11 8×5000 8 5000 10-25 0.5-1.5 15 5680x2250x2200
12 8×6000 8 6000 8-20 0.5-1.5 15 6800x2350x2700
13 10×2500 10 2500 10-25 0.5-2.0 15 3270x1730x1800
14 10×3200 10 3200 9-25 0.5-2.0 15 3990x2250x2200
15 10×4000 10 4000 6-20 0.5-2.0 15 4720x2490x2500
16 10×5000 10 5000 7-20 0.5-2.0 22 5720x2600x2800
17 10×6000 10 6000 6-20 0.5-2.0 30 6720x2500x2550
18 12×2500 12 2500 10-25 0.5-2.0 15 3270x1730x1800
19 12×3200 12 3200 9-25 0.5-2.0 15 3990x2250x2200
20 12×4000 12 4000 6-20 0.5-2.0 15 4720x2490x2500
21 12×5000 12 5000 7-20 0.5-2.0 22 5720x2600x2800
22 12×6000 12 6000 6-20 0.5-2.0 30 6720x2500x2550
23 12×7000 12 7000 6-20 0.5-2.0 37 7800x2600x3200
24 12×8000 12 8000 6-20 0.5-2.0 45 9100x2800x3400
25 12×10000 12 10000 4-18 0.5-2.0 55 11100x3200x3900
26 12×12000 12 12000 4-18 0.5-2.0 2×37 13200x3950x4800
27 16×2500 16 2500 9-20 0.5-2.5 22 3320x2100x2200
28 16×3200 16 3200 8-20 0.5-2.5 22 4120x2150x2300
29 16×4000 16 4000 8-15 0.5-2.5 22 4760x1900x2560
30 16×5000 16 5000 7-15 0.5-2.5 30 5760x2200x2750
31 16×6000 16 6000 6-15 0.5-2.5 37 6880x2480x3000
32 16×8000 16 8000 5-15 0.5-2.5 55 9120x3000x3800
33 16×10000 16 10000 4-15 0.5-3.0 2×37 11200x3400x4000
34 16×12000 16 12000 3-12 0.5-3.0 2×45 13300x4300x5800
35 20×2500 20 2500 7-20 0.5-3.0 30 3300x2050x2440
36 20×3200 20 3200 6-20 0.5-3.0 30 4000x2160x2540
37 20×4000 20 4000 5-15 0.5-3.0 30 4930x2300x2710
38 20×5000 20 5000 4-15 0.5-3.0 55 5860x2400x3150
39 20×6000 20 6000 4-15 0.5-3.0 55 6100x2650x3375
40 20×8000 20 8000 4-15 1.0-2.5 2×37 9120x3400x3800
41 20×10000 20 10000 4-14 1.0-2.5 2×45 11200x4300x5800
42 20×12000 20 12000 3-12 1.0-2.5 2×55 13380x4500x6100
43 25×2500 25 2500 6-15 1.0-3.5 37 3300x2000x2650
44 25×3200 25 3200 5-15 1.0-3.5 37 3970x2100x2865
45 25×4000 25 4000 4-12 1.0-3.5 45 4780x2500x3150
46 25×5000 25 5000 4-12 1.5-3.5 55 6100x2880x3550
47 25×6000 25 6000 3-12 1.5-3.0 55 7200x3000x3850
48 25×8000 25 8000 3-12 1.5-3.0 2×37 9300x3500x4300
49 30×2500 30 2500 4-12 1.5-3.5 55 3500x2300x3200
50 30×3200 30 3200 4-12 1.5-3.5 55 4380x2600x3450
51 30×4000 30 4000 3-12 1.5-3.5 55 5300x3000x3600
52 30×6000 30 6000 3-12 1.5-3.0 2×37 7300x3800x4200
53 40×2500 40 2500 4-10 2.0-4.0 55 3900x2550x3500
54 40×3200 40 3200 3-10 2.0-4.0 55 4600x2900x3750
55 40×4000 40 4000 3-10 2.0-4.0 2×45 5380x3300x4200
56 50×2500 50 2500 3-10 2.0-4.0 2×55 4000x3300x4200
57 50×3200 50 3200 3-10 2.0-4.0 3×90 4700x3600x4500
58 60×3200 60 3200 2-8 2.0-4.0 4×90 4900x3800x4900
