High speed deep drawing Hydraulic press machine, single column hydraulic press

Categories Hydraulic press machine, Press Machine

DESCRIPTION

Video link:

Performance, Features Overview:

CNC hydraulic press is a replacement for mechanical punch, which combines the advantages of punch and single column hydraulic press. Can be punching, cutting angle, cutting, pressing, can also do stretching, forming. Truly realized a machine multi-purpose.

CNC hydraulic presses used plc centralized control, full touch screen operation. Can be manual and automatic free control, the machine running more stable, low noise, high precision. The hazard coefficient is zero.

If coupled with automatic feeding without manual operation, the real realization of a multi-machine operation, but also network using computer remote operation.

Equipment All technology is used program operation, travel, speed, pressure, stretching, the number of times, without manual adjustment.

Applicable to the following:

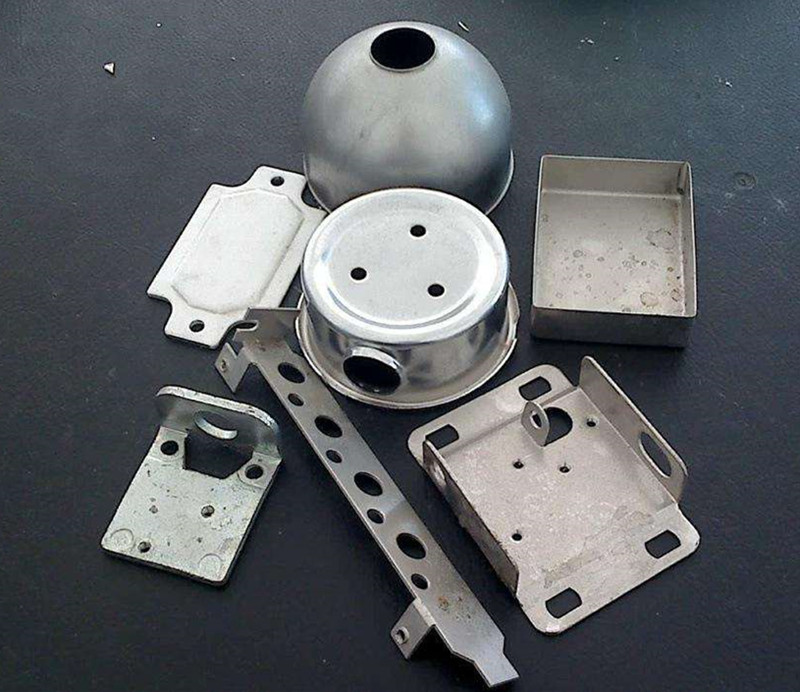

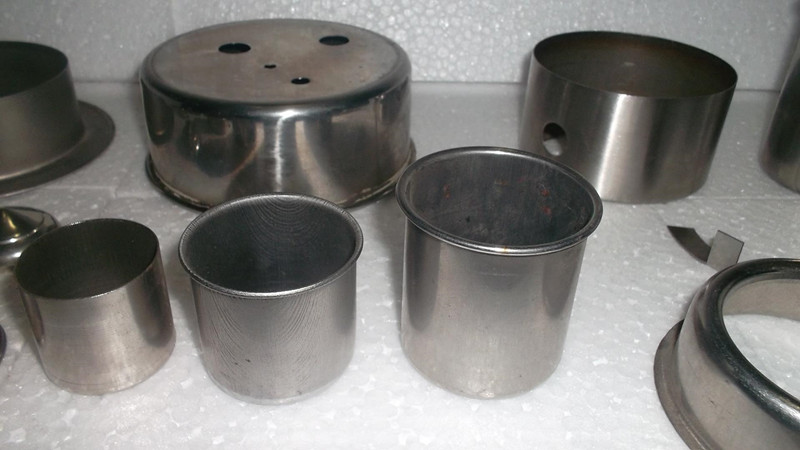

Automotive metallurgy aviation ship daily hardware household appliances building materials LED lighting screen punching signs

Accessories: pressure display, counting display, travel display, speed display, time display, fault display

Action sequence: ordinary punch use

Fast down — pressure punching – quick return — restore far point

Ordinary press used

Fast down —- fast turn slowly —- start to suppress — packing —– fast return —- restore the origin .

Technical Specifications:

Model		25T	40T	63T	80T	100T	125T	160T	200T	250T	315T	400T
Force KN		250	400	630	800	1000	1250	1600	2000	2500	3150	4000
Stroke mm		10-100	10-120	10-120	10-140	10-150	10-150	10-180	10-200	10-200	10-200	10-200
Max stroke mm		120	120	130	140	180	180	180	200	200	200	200
Mold adding height mm		100-200	140-200	160-270	180-280	200-320	220-320	260-420	280-430	280-440	300-480	350-500
Stroke times l/min		40-70	30-65	30-60	30-60	20-50	20-50	20-50	20-45	20-45	20-35	18-30
Air force Mpa		25	25	25	25	25	25	25	25	25	25	25
Down speed m/s		225	230	220	220	210	250	230	240	240	240	230
Work speed m/s		10	10	8	8	8	8	8	8	6	6	5
Back speed m/s		180	180	180	160	160	150	150	140	130	130	130
Worktable	L-R	500	590	650	760	820	840	940	940	1000	1100	1100
	F-B	390	440	450	500	580	580	700	750	800	900	1000
	Hole	100	150	150	180	180	200	220	250	250	300	300
Throat depth		200	250	260	260	300	310	380	400	400	450	500
Stroke	L-R	220	280	320	560	400	400	420	600	700	800	840
	Mold bar	40	50	50	60	60	60	70	70	70	80	80
	Hole	330	440	320	350	610	610	720	720	800	900	920
Worktable height mm		500	550	550	600	660	680	700	750	750	800	840
Motor KV		5.5	5.5	5.5	7.5	11	11	15	15	22	30	37
Dimensions	L-R	1100	1100	1250	1370	1350	1600	1700	1800	1900	2000	2200
	F-B	1150	1260	1450	1630	1630	1850	2000	2100	2200	2300	2500
	Height	1800	1960	2270	2500	2600	3400	3500	3600	3750	3900	4000
NotesL we can costomerise the request，including stroke, throat depth,and cushion device and so on.
