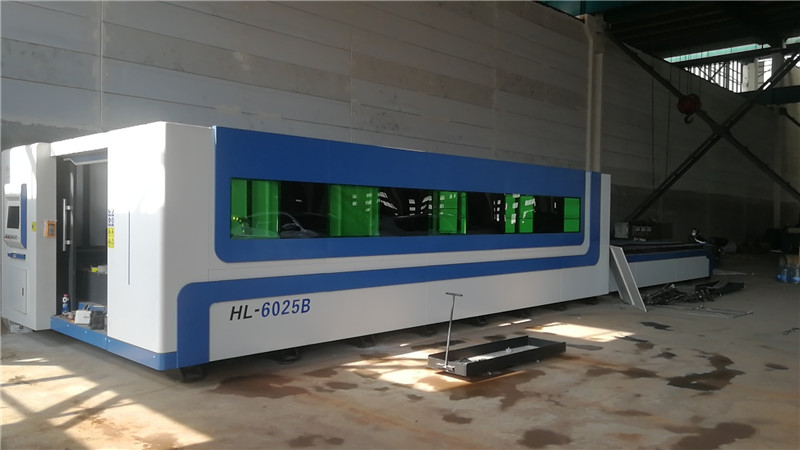

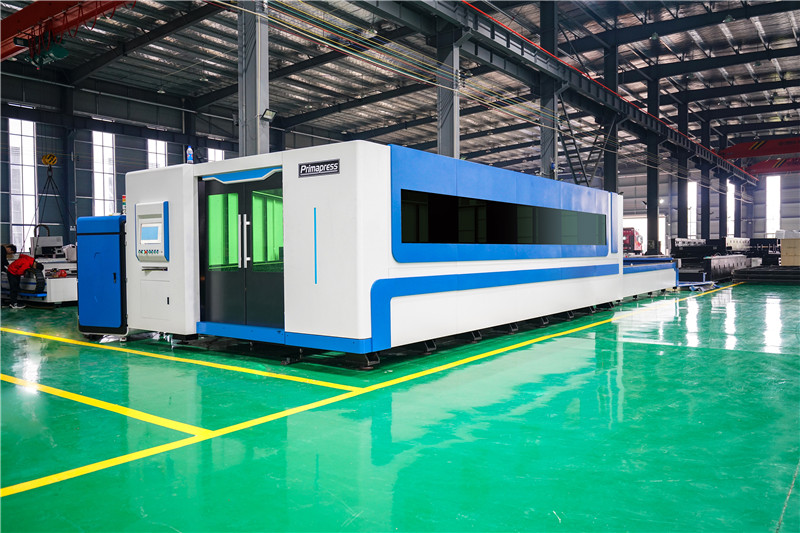

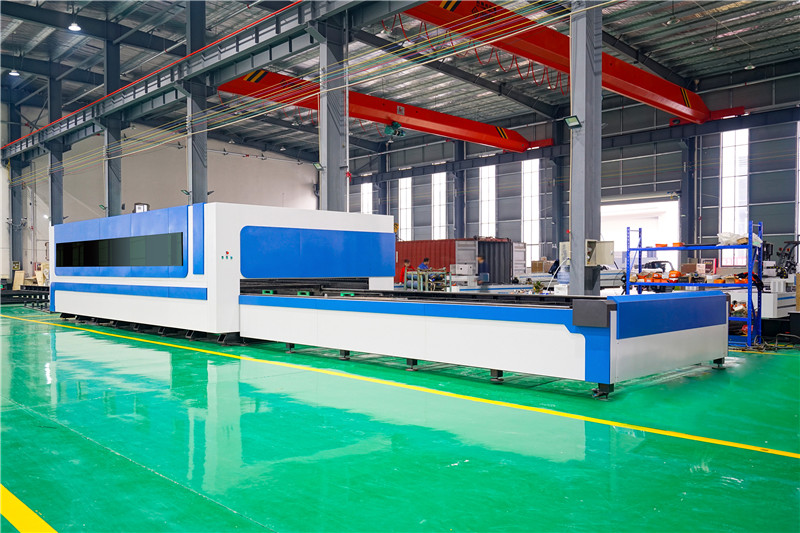

Heavy duty type High Power Metal Laser Cutting Machine 10kw 12Kw and 15Kw cnc laser cutter

Share on facebook
Share on twitter
Share on linkedin

Description

Heavy duty type High Power Metal Laser Cutting Machine 10kw 12Kw and 15Kw cnc laser cutter

for thick metal sheet cutting, high efficiency and less production cost the machine is available for 10Kw, 12Kw and 15Kw

Technical   Parameter
1 Laser   Wavelength 1070nm
2 Maximum   Power 15000W
3 Accelaration 1.5G
4 Power   Consumption 81Kw
5 Max   Speed 160m/min(complex   speed), 100m/m(single axis)
6 Min   Linewidth 0.15mm   (for materials with thickness less than 0.4mm), depends on the sheet   thickness
7 Cutting   Thickness MS:  max 50mm, mass production 40mm;                                                 SS:  max 50mm, mass production 35mm;
8 Max.Cutting   Dimension Cutting   Table Optional: Exchange Table

2000*6000mm,   2000*8000mm

2500*6000mm,   2500*8000mm

2500*12000mm

9 Cutting   Table Mechanical Accuracy:±0.05mm
10 X,YRepeated   Positioning Precision:±0.02mm
11 Power   Supply: Three-phase 5 wires AC 380V±5%,50Hz±1%

Technical   Parameter
1 Laser   Wavelength 1070nm
2 Maximum   Power 15000W
3 Accelaration 1.5G
4 Power   Consumption 81Kw
5 Max   Speed 160m/min(complex   speed), 100m/m(single axis)
6 Min   Linewidth 0.15mm   (for materials with thickness less than 0.4mm), depends on the sheet   thickness
7 Cutting   Thickness MS:  max 50mm, mass production 40mm;                                                 SS:  max 50mm, mass production 35mm;
8 Max.Cutting   Dimension Cutting   Table Optional: Exchange Table

2000*6000mm,   2000*8000mm

2500*6000mm,   2500*8000mm

2500*12000mm

9 Cutting   Table Mechanical Accuracy:±0.05mm
10 X,YRepeated   Positioning Precision:±0.02mm
11 Power   Supply: Three-phase 5 wires AC 380V±5%,50Hz±1%
