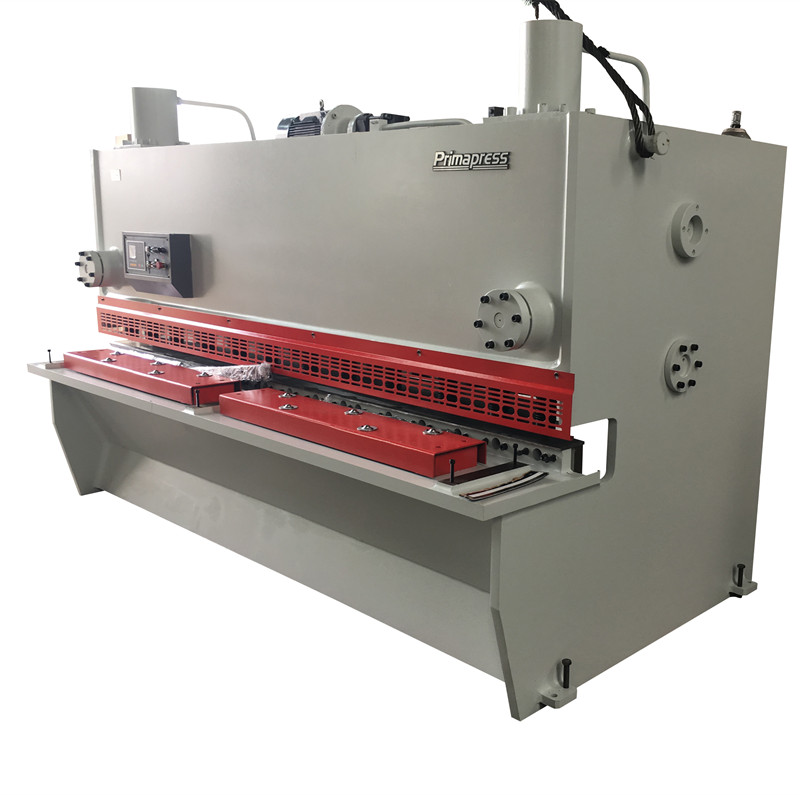

Heavy duty Sheet metal hydraulic guillotine Shearing Machine, plate Guillotine Shear
Categories Cutting Machine, Guillotine Shear Machine
DESCRIPTION
Sheet metal hydraulic guillotine Shearing Machine plate Guillotine Shear
video link:
1,Technical specification
No | Model | Max cut thicknessmm | Max cut lengthmm | Ram Stroken/min | Cutting angle° | Motorkw | Machine Sziemm |
1 | 4×2500 | 4 | 2500 | 20-40 | 0.5-1.5 | 5.5 | 3100x1600x1700 |
2 | 4×3200 | 4 | 3200 | 20-40 | 0.5-1.5 | 7.5 | 3800x1800x1700 |
3 | 6×2500 | 6 | 2500 | 16-35 | 0.5-1.5 | 7.5 | 3150x1650x1700 |
4 | 6×3200 | 6 | 3200 | 14-35 | 0.5-1.5 | 7.5 | 3860x1810x1750 |
5 | 6×4000 | 6 | 4000 | 10-30 | 0.51.5 | 7.5 | 4630x2030x1940 |
6 | 6×5000 | 6 | 5000 | 10-30 | 0.5-1.5 | 11 | 5660x2050x1950 |
7 | 6×6000 | 6 | 6000 | 8-25 | 0.5-1.5 | 11 | 6680x2200x2500 |
8 | 8×2500 | 8 | 2500 | 14-30 | 0.5-1.5 | 11 | 3170x1700x1700 |
9 | 8×3200 | 8 | 3200 | 12-30 | 0.5-1.5 | 11 | 3870x1810x1780 |
10 | 8×4000 | 8 | 4000 | 10-25 | 0.5-1.5 | 11 | 4680x1900x1860 |
11 | 8×5000 | 8 | 5000 | 10-25 | 0.5-1.5 | 15 | 5680x2250x2200 |
12 | 8×6000 | 8 | 6000 | 8-20 | 0.5-1.5 | 15 | 6800x2350x2700 |
13 | 10×2500 | 10 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
14 | 10×3200 | 10 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
15 | 10×4000 | 10 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
16 | 10×5000 | 10 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
17 | 10×6000 | 10 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
18 | 12×2500 | 12 | 2500 | 10-25 | 0.5-2.0 | 15 | 3270x1730x1800 |
19 | 12×3200 | 12 | 3200 | 9-25 | 0.5-2.0 | 15 | 3990x2250x2200 |
20 | 12×4000 | 12 | 4000 | 6-20 | 0.5-2.0 | 15 | 4720x2490x2500 |
21 | 12×5000 | 12 | 5000 | 7-20 | 0.5-2.0 | 22 | 5720x2600x2800 |
22 | 12×6000 | 12 | 6000 | 6-20 | 0.5-2.0 | 30 | 6720x2500x2550 |
23 | 12×7000 | 12 | 7000 | 6-20 | 0.5-2.0 | 37 | 7800x2600x3200 |
24 | 12×8000 | 12 | 8000 | 6-20 | 0.5-2.0 | 45 | 9100x2800x3400 |
25 | 12×10000 | 12 | 10000 | 4-18 | 0.5-2.0 | 55 | 11100x3200x3900 |
26 | 12×12000 | 12 | 12000 | 4-18 | 0.5-2.0 | 2×37 | 13200x3950x4800 |
27 | 16×2500 | 16 | 2500 | 9-20 | 0.5-2.5 | 22 | 3320x2100x2200 |
28 | 16×3200 | 16 | 3200 | 8-20 | 0.5-2.5 | 22 | 4120x2150x2300 |
29 | 16×4000 | 16 | 4000 | 8-15 | 0.5-2.5 | 22 | 4760x1900x2560 |
30 | 16×5000 | 16 | 5000 | 7-15 | 0.5-2.5 | 30 | 5760x2200x2750 |
31 | 16×6000 | 16 | 6000 | 6-15 | 0.5-2.5 | 37 | 6880x2480x3000 |
32 | 16×8000 | 16 | 8000 | 5-15 | 0.5-2.5 | 55 | 9120x3000x3800 |
33 | 16×10000 | 16 | 10000 | 4-15 | 0.5-3.0 | 2×37 | 11200x3400x4000 |
34 | 16×12000 | 16 | 12000 | 3-12 | 0.5-3.0 | 2×45 | 13300x4300x5800 |
35 | 20×2500 | 20 | 2500 | 7-20 | 0.5-3.0 | 30 | 3300x2050x2440 |
36 | 20×3200 | 20 | 3200 | 6-20 | 0.5-3.0 | 30 | 4000x2160x2540 |
37 | 20×4000 | 20 | 4000 | 5-15 | 0.5-3.0 | 30 | 4930x2300x2710 |
38 | 20×5000 | 20 | 5000 | 4-15 | 0.5-3.0 | 55 | 5860x2400x3150 |
39 | 20×6000 | 20 | 6000 | 4-15 | 0.5-3.0 | 55 | 6100x2650x3375 |
40 | 20×8000 | 20 | 8000 | 4-15 | 1.0-2.5 | 2×37 | 9120x3400x3800 |
41 | 20×10000 | 20 | 10000 | 4-14 | 1.0-2.5 | 2×45 | 11200x4300x5800 |
42 | 20×12000 | 20 | 12000 | 3-12 | 1.0-2.5 | 2×55 | 13380x4500x6100 |
43 | 25×2500 | 25 | 2500 | 6-15 | 1.0-3.5 | 37 | 3300x2000x2650 |
44 | 25×3200 | 25 | 3200 | 5-15 | 1.0-3.5 | 37 | 3970x2100x2865 |
45 | 25×4000 | 25 | 4000 | 4-12 | 1.0-3.5 | 45 | 4780x2500x3150 |
46 | 25×5000 | 25 | 5000 | 4-12 | 1.5-3.5 | 55 | 6100x2880x3550 |
47 | 25×6000 | 25 | 6000 | 3-12 | 1.5-3.0 | 55 | 7200x3000x3850 |
48 | 25×8000 | 25 | 8000 | 3-12 | 1.5-3.0 | 2×37 | 9300x3500x4300 |
49 | 30×2500 | 30 | 2500 | 4-12 | 1.5-3.5 | 55 | 3500x2300x3200 |
50 | 30×3200 | 30 | 3200 | 4-12 | 1.5-3.5 | 55 | 4380x2600x3450 |
51 | 30×4000 | 30 | 4000 | 3-12 | 1.5-3.5 | 55 | 5300x3000x3600 |
52 | 30×6000 | 30 | 6000 | 3-12 | 1.5-3.0 | 2×37 | 7300x3800x4200 |
53 | 40×2500 | 40 | 2500 | 4-10 | 2.0-4.0 | 55 | 3900x2550x3500 |
54 | 40×3200 | 40 | 3200 | 3-10 | 2.0-4.0 | 55 | 4600x2900x3750 |
55 | 40×4000 | 40 | 4000 | 3-10 | 2.0-4.0 | 2×45 | 5380x3300x4200 |
56 | 50×2500 | 50 | 2500 | 3-10 | 2.0-4.0 | 2×55 | 4000x3300x4200 |
57 | 50×3200 | 50 | 3200 | 3-10 | 2.0-4.0 | 3×90 | 4700x3600x4500 |
58 | 60×3200 | 60 | 3200 | 2-8 | 2.0-4.0 | 4×90 | 4900x3800x4900 |
2,Features of this machine
1.The second generation of shear.
2.Welded steel plate construction, heating to eliminate stress,with high strength and good rigidity.
3.Advanced integrated hydraulic system with and excellent reliabitity quality.
4.Rapidly,accurately and conveniently adjusting the blade clearance by motor
5.The adjustable rake angle can minimize plate deformation.
6.As the cutting beam has been designed in inner-inclined structure,it is easy for plates to fall down and the accuracy of products can be also guaranteed.
7.Shearing in sections,shadow-line cutting.
8.Counter for the motorized back gauge.
9.Back support device (optional).
3.Machine key components list
No. | Name | Brand | Location |
1 | Motor | Siemens | Germany |
2 | Electrics | SCHNEIDER | France |
3 | Oil Cylinder | Wuyang | Anhui, China |
4 | Seal ring | NOK | Japan |
5 | Pump | Lifeng | China |
6 | Hydraulic system | Bosch | Germany |
7 | Valves | Bosch | Germany |
8 | Controller | Estun E21 | China Estun |
9 | Blade | 6CrW2Si | Jinshan, Shanghai |
Equipment’s working environment: 2.1 Power supply:3Ph AC 220V ± 10% 60HZ ± (optional to site) 2.2 ambient temperature:-10 ℃ ~ 45 ℃ 2.3 Relative Humidity: ≤ 85%The back gauge structure(our patent) |
We can also change the components according to your demand.
4.Attachment With the machine
No | Items | parameters | remarks |
1 | Upper Down blade | 2 | set |
3 | Bolt &Nut | 8 | |
4 | feet nut washer | 4 | |
5 | Allen wrench&Grease Gun | 1 set | 3 to 14 mm (maintenance tool) |
6 | technical documents | certificate of the product, including operation and maintenance manual, electrical, hydraulic schematics, purchased parts inventory, basic maps, packing list. |
