Half hydraulic Angle steel 3 Roller Twist Hydraulic Profile bending machine section bender machines

Share on facebook
Share on twitter
Share on linkedin

Description

Angle steel 3 Roller Twist Hydraulic Profile bending machine section bender machines

WYQ24-16 Section Bending Machine

Technical Document

  1. Overview

This section bending machine is high-efficient process equipment used to bend angle steel, channel steel, I-steel, flat steel, side steel, round steel and so on. One time feeding can complete rolling round and corrective round working procedure, it is widely used in the petroleum, chemical industry, water and electricity, shipbuilding and machine manufacture and other business lines.

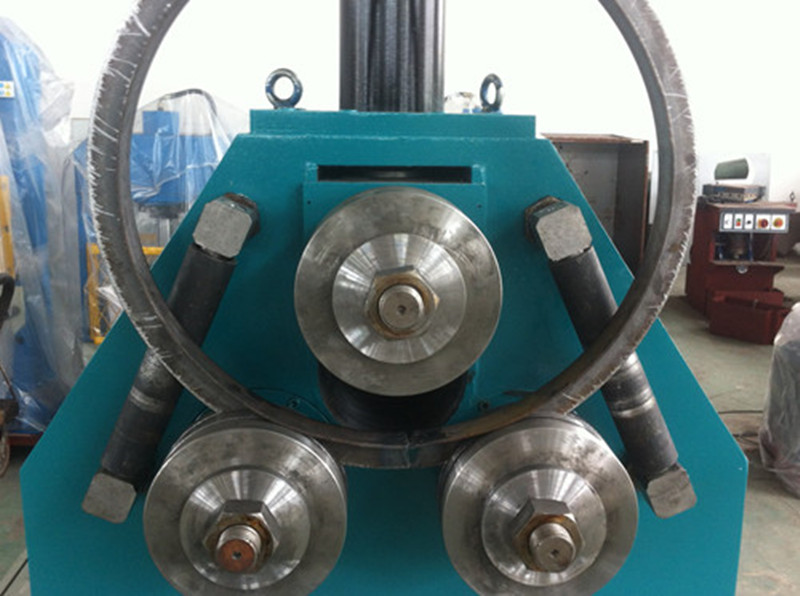

Two lower rollers of the machine are main drive roller, also the three work rollers as main drive roller, support roller are set on the two sides, which is helpful for ensuring the bending quality of asymmetrical section.

This machine which is of advanced structure, reliable operation and complete in function is sophisticated section form equipment in domestic and abroad.

  1. 2.Our Business concept of Company
    1. No unqualified products, only best quality products
    2. General Manager is hired on contract, mainly in charge of quality,

If any quality problem existed, he will be fired at any time.

  1. Any plate rollingmachine sold in the any place of world,

Our company will be responsible for it forever.

  1.  Keep innovating to offer the customer the best productsandmake 1% progress everyday.  .
  1. The top team creates the top products.
  2. Technique software

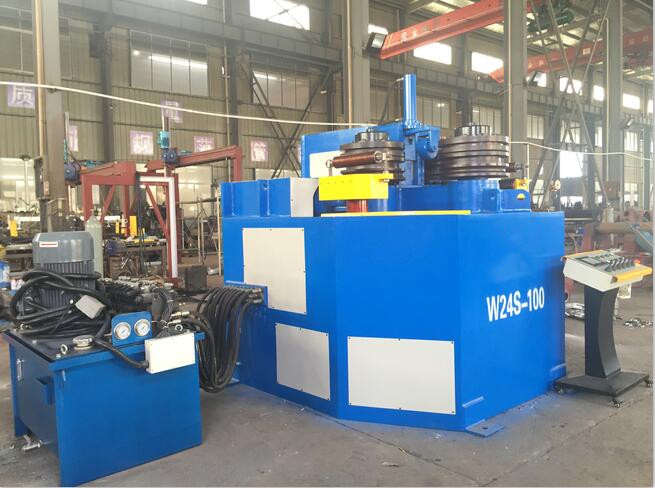

This machine adopts hydraulic-type press, being of huge press, hydraulic motor, reliable performance and low noise. The operation table is set with each indication button, being of automatic, easy operation, safety and low error rate.

  1. Main Technical parameterand technical sheets

1, Specifications:

Technical Parameter WYQ24 SECTION BENDING MACHINE
WYQ24-6 WYQ24-16 WYQ24-30 WYQ24-45 WYQ24-75 WYQ24-100
Maximum bending section modulus profiles 6 16 30 45 75 100
Plate speed(m/min) 6 5
Profiles yield limit(mpa) 250
Angle leg-out maximum cross-section(mm) 40*5 70*8 80*8 90*10 100*10 120*12
Minimum bending diameter(mm) 800 1000 1200 1500 2000 2500
Minimum cross-section(mm) 20*3 30*3 35*3 36*5 38*4 40*5
Minimum bending diameter(mm) 400 550 560 600 600 720
Angle leg-in maximum cross-section(mm) 50*5 80*8 90*10 100*10 120*12 140*16
Minimum bending diameter(mm) 800 1000 1100 1300 1600 1800
Minimum cross-section(mm) 20*3 30*3 35*3 36*5 38*4 45*5
Minimum bending diameter(mm) 400 550 500 600 700 760
Channel steel bent outward Channel model 8 12 16 20 25 28
Minimum bending diameter(mm) 600 800 800 1000 1100 1700
Within the curved channel steel maximum cross-section(mm) 8 12 16 20 25 28
Minimum bending diameter(mm) 700 900 1000 1150 1600 1700
Flat-along face maximum cross-section(mm) 100/18 150*25 180*25 200*30 220*40 250*40
Minimum bending diameter(mm) 600 700 800 900 1000 1200
Flat-along edge maximum cross-section(mm) 50*12 75*16 90*20 100*25 110*40 120*40
Minimum bending diameter(mm) 500 760 800 1000 1100 1300
Round tube bending maximum cross-section(mm) 42*4 76*4.5 89*5 89*8 114*5 159*5
Minimum bending diameter(mm) 500 750 900 900 1200 2000
Round steel bending maximum cross-section(mm) 38 52 62 75 85 90
Minimum bending diameter(mm) 450 600 600 800 1000 1100
Square tube bending maximum cross-section(mm) 45*3 60*4 70*4 80*6 90*8 100*10

Our Services

Competitive Pricing

Due to our batch manufacturing, we will have a lower price with best quality machines.

Technical Support

When a breakdown occurs, our technicals are on call for both online & onsite correction.

Strict Quality Control

All machines are inspected by our quality control department before shipped out.

Spare Part Kits

Critical components & worn spare parts are offered to avoid unplanned stops.

Expert Solutions

We will provide you professional expert suggestions for your required machine.

Fast Delivery

All of the machine ordered by our customer will be delivered within 30 days.
