Good Price mechanical cnc turret punch ,cheap cnc punching machine
Categories CNC Turret Punch, Press Machine
DESCRIPTION
Good Price mechanical cnc turret punch ,cheap cnc punching machine
Video link: https://youtu.be/EHmBHzV2uYw

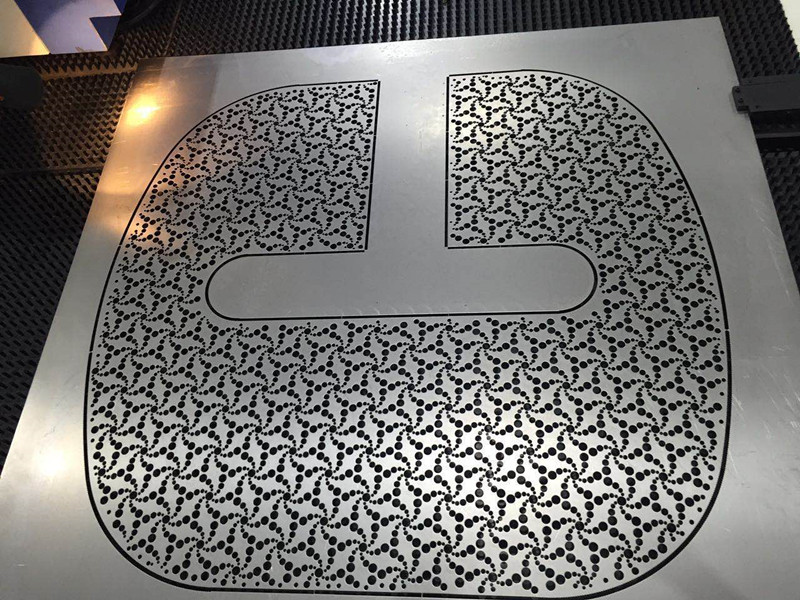

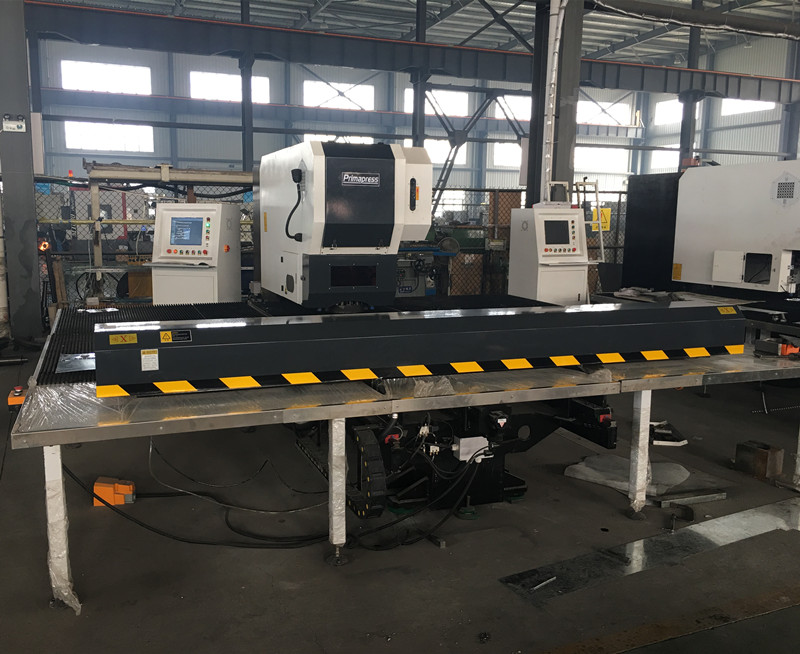

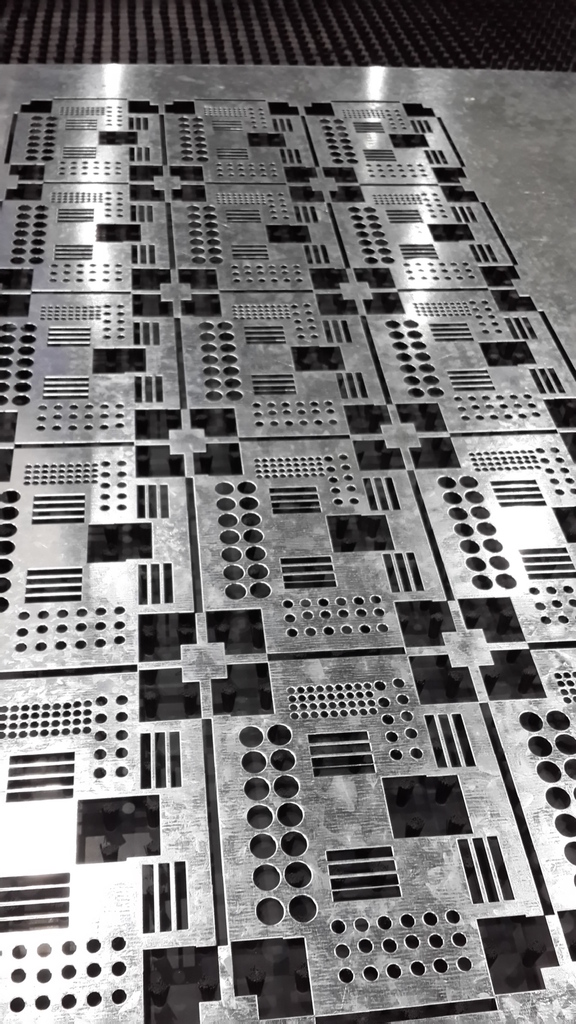

CNC turret punching machine 10 station machine used to punch inlet/outlet water hole of electric water heater. And also used to punch flanges holes and many other holes need on electric water heater.
There are 10 (8 or 12 optional ) station in this machine and the DIE can be changed easily.
- Punchhousing: Adopt strengthened rib plate (80mm), strong housing, not easy to bedeformed.
6.CNC Feeding machine housing: feeding part whole set has been drawing temper treated at fireplace; internal stress has been eliminated completely. Housing adopts widened lever double rail design, more stable.
7.Clutch: Pneumatic rubbing clutch, adopting safe double values control,
8.Turret/Die: Adopt international common die. Die setup height 660mm, AMADA thick turret long guiding construction. Die material is Japan High-speed tool steel SKH-9. The dies supplied are compatible with AMADA AE255NT and AE2510NT machines.
9.Guide screw/linear guide rail: Adopt Taiwan Hiwin product, long distance precise ball screw: 5 degree accuracy. Linear guide rail adopts widened flange type slider.
10.Motor/Driver: Panasonic AC servo motor
11.Main electric component: Whole set Schneider electric component. Proximity switches are from
Japan OMRON. Contactor is from Siemens.
12.Control Unit: Siemens system
13.Coupler: Italy SIT Coupler, to ensure driving and correcting/adjustment accuracy.
14.Pliers: Pneumatic floating pliers. Can avoid sheet damage during punching
15.Work table: Good quality flexible brush, running stable, no resistance, will not scratch sheet.INFORMATION
Specification | ZH-1325 | ZH-1530 | |
Machine Pressure (KN) | 300 KN (30 Tons) | ||
Machine Punching Diameter (mm) | 50.8 (Option: 88.9) | ||
Max Thickness Workpiece (mm) | 6.35 | ||
Precision Punching (mm) | /- 0.1 | ||
Repeatability (mm) | /- 0.05 | ||
Punching Frequency (stamp/min) | 200 | ||
Processing Size (mm) | 1,250×2500 | 1,250×3,000 | |
Tool Change (set) | 12 | ||
Number Clamp (set)/Axis (set) | 2 / 2 | ||
Dimension (mm) | 4,850x3300x2,100 | 4,850×5,300×2,100 | |
Weight (kg) | 8,000 | 9,000 |
