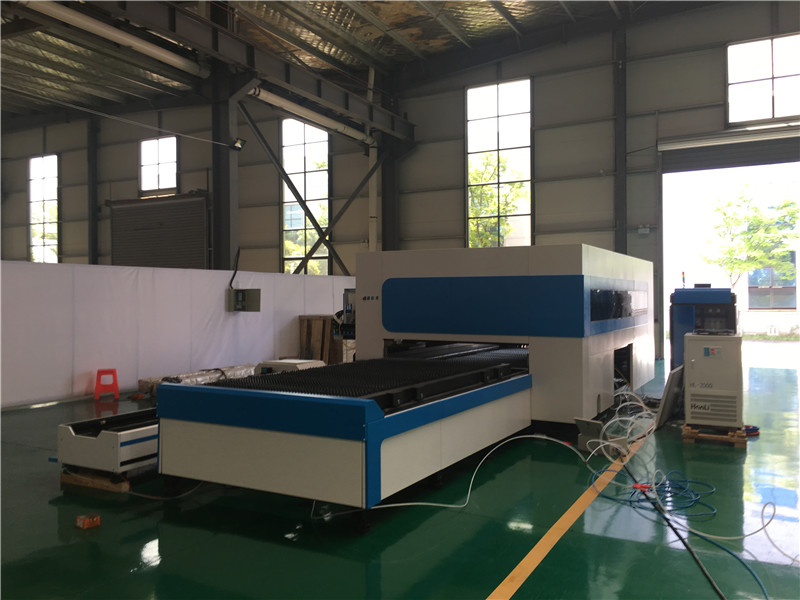

Full cover Exchangeable fiber laser cutting machine 4000x1500mm with pipe cutting

Video link:

Technical sheets: 1000W fiber laser cutting machine adopts IPG or Raycus fiber laser device which has international advanced laser technology. With Germany imported Precitec or other Raytools brand laser cutting head. Equipped with efficient transmission system by Taiwan high-precision gear rack after grinding process and high-precision linear guide. Advanced automatic CNC system, group into high precised CNC fiber laser cutting machine.

Mainly applicable for carbon steel, stainless steel and aluminum alloy etc such metals’ cutting and molding.With advantage of High speed, High precision, High efficiency and High cost performance. This model is metal processing industry’s first considering metal cutting machine.

Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry.

Components:

Japanese YASKAWA servo motors system

Germany ATLANTA gears

Taiwan TBI ball screw drive

Japan SMC /Airtac pneumatic parts

French Schneider electronic parts

French Motoreducer reducer

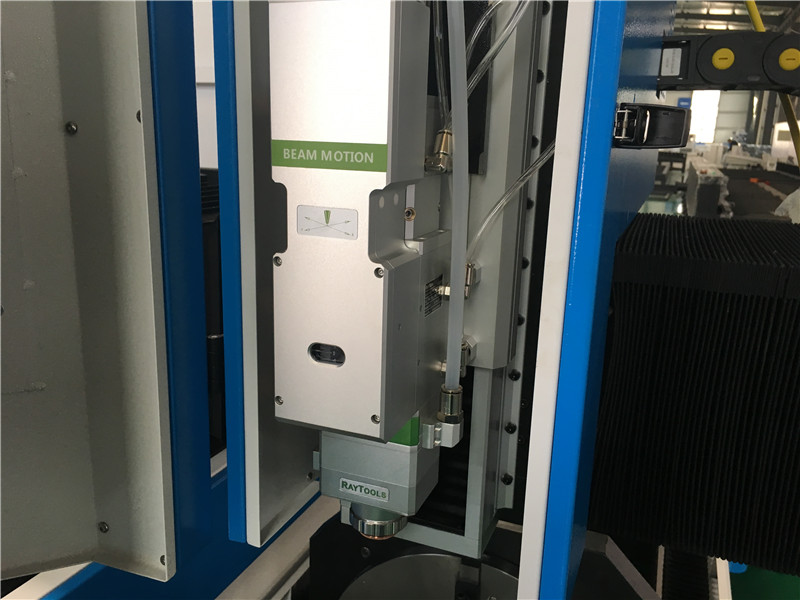

WSX or Raytools laser head

Integrated cast aluminum beam

Taiwan HIWIN square rail

Smoke purify system

Water cooling machine Hanli

Three years warranty

3year (the laser generator 2 years)

5150*2225*2125mm

Standard wooden case for international trading

Parameters:

Machine Model PMFiber-4020
Max. working area 2000mm x 4000mm

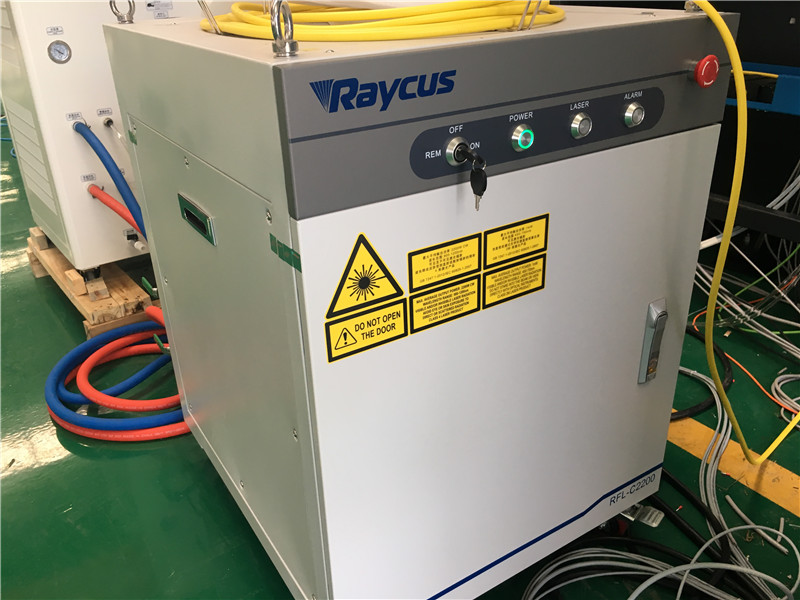

Laser Raycus 2000 watt fiber laser
Cutting thickness 0.1-16 mm/metals
Pipe length 0.1-6meters
Pipe diameter 20-200mm(if bigger, we can design specially)

(can load square , round, rectangle pipe, and so on )

Laser wavelength 1080 nm
Rated power 10-100%
Water chiller power 5.6 Kw
X,Y-axis location accuracy 0.01mm
X,Y-axis repeat location accuracy 0.01mm
X,Y-axis fast moving speed 80 m/min
X,Y-axis max. cutting speed 45 m/min
Min. cutting line width 0.02-0.08 mm
Max. cutting speed 45 m/min
Machine occupy space 8.5 m x 3 m
Machine weight 8500 KG
Voltage 380 V or optional to site
