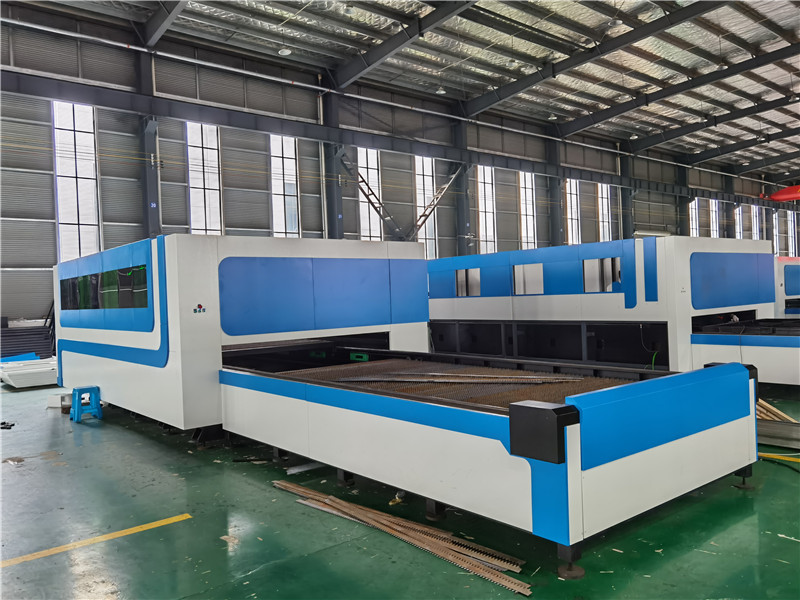

Sheet metal high power 8000w 6000w full cover exchange table cnc fiber laser cutting machine

Share on facebook
Share on twitter
Share on linkedin

Description

Sheet metal high power 8000w 6000w full cover exchange table cnc fiber laser cutting machine

8000W Raycus brand Cypcut control system with exchangeable table and Germany Precitec head

Voltage stablizer

Japanese Yaskawa servo motors system

Germany ROR gears

Japan SMC /Airtac pneumatic parts

French Schneider electronic parts

French Motoreducer reducer

Auto exchangeable working table

Integrated cast aluminum beam

Taiwan HIWIN square rail

Laser head automatically adjust system.

Smoke purify system

Water cooling machine

Three years warranty

Model PM 8000W Fiber Laser cutting machine
Laser Type Raycus
Laser Wavelength 1070nm
Laser Maximum Power 8000W
Max. Cutting thickness Carbon steel 28mm

Stainless steel 16mm

Brass 12mm

Total Power Consumption <60KW
Working Size 3000X1500mm
Max.cutting speed 0-80m/min(Depending on the material and thickness)
X, Y, Z Axis Orientation Precision ≤±0.05mm/m
X, Y, Z Axis Repeat Precision ≤±0.03mm /m
Min line width ≤0.15mm
Maximum Empty Running Speed 120m/min
Driving way Japanese Yaskawa servo motors system
Transmission way Y-axis imported gear rack double driver,

X-axis imported ball screw

Cooling System Water Cooling
Continous working time 24 Hours
Environment temperature 0-35°C
Power requirements 220V/380V /50Hz or 60Hz
