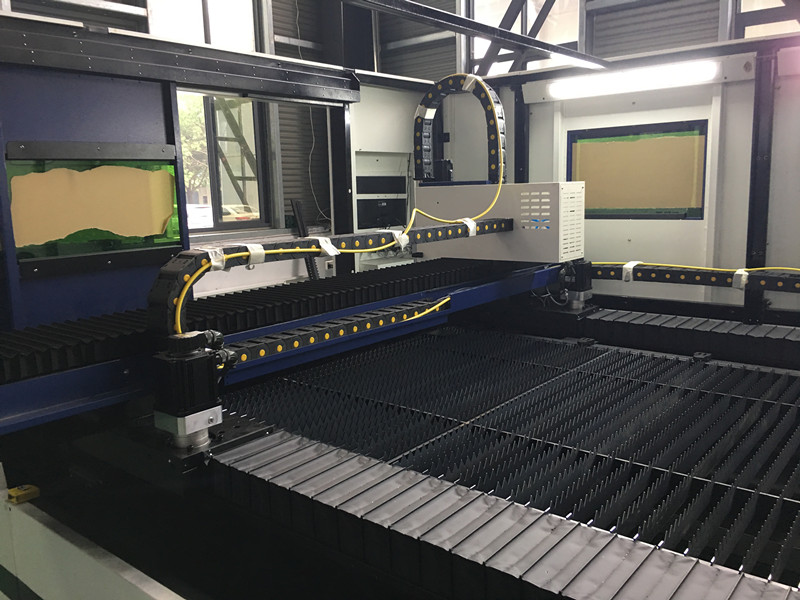

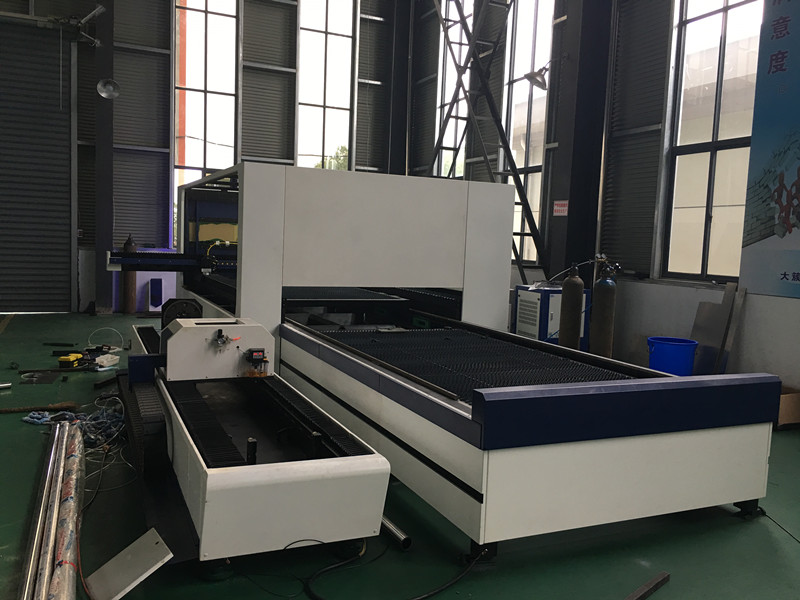

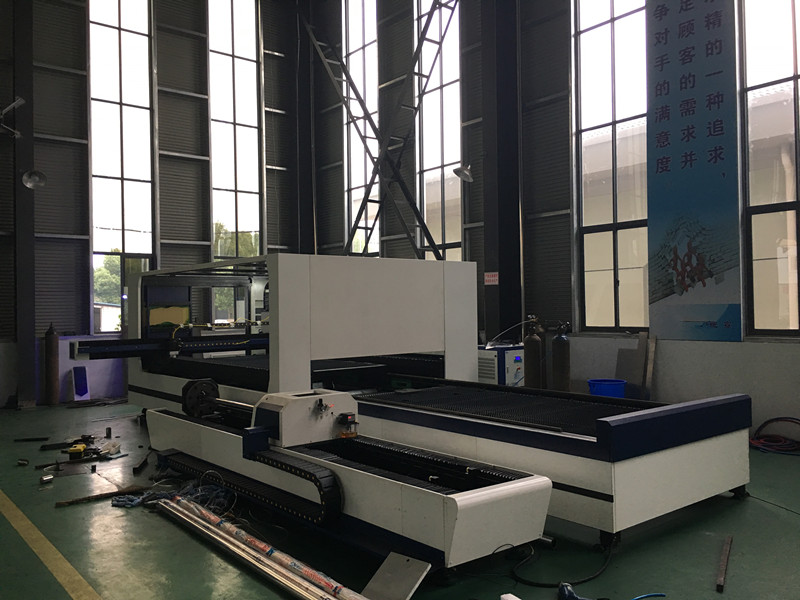

Exchangeable fiber laser cutting machine 3000x1500mm full cover 3kw IPG 4kw , Auto focus with pipe cutting 3m

Share on facebook
Share on twitter
Share on linkedin

Description

Exchangeable fiber laser cutting machine 3000x1500mm full cover 3kw IPG 4kw , Auto focus with pipe cutting 3m

Video link in Youtube:

Technical sheets: cnc fiber laser cutting machine adopts Raycus or IPG fiber laser device which has international advanced laser technology. With Germany imported Raytools or Precitec brand laser cutting head. Equipped with efficient transmission system by Taiwan high-precision gear rack after grinding process and high-precision linear guide. Advanced automatic CNC system, group into high precised CNC fiber laser cutting machine.

Mainly applicable for carbon steel, stainless steel and aluminum alloy etc such metals’ cutting and molding.With advantage of High speed, High precision, High efficiency and High cost performance. This model is metal processing industry’s first considering metal cutting machine.

Suitable for aerospace technology, aircraft manufacturing, rocket manufacturing, robot manufacturing, elevator manufacturing, ship manufacturing, sheet metal cutting, kitchen furniture, electronic components, automotive parts, cooling, and ventilation pipes, signs, metal and other metal parts processing industry

Standard Equipment:

  • IPG YLS-3000W Ytterbium Laser Resonator
  • FISCUT CypCutCNC Controller
  • Automatic Double Pallet Changer(Shuttle Table)
  • Radan or Lantek CAD/CAM system
  • Light source
  • Chiller
  • 3 lower protective lenses
  • 3 Ceramic Nozzle Adapters
  • Auto-calibrated nozzle system
  • Lens with 5.9” Focus Length
  • Smart Slag Collection System/ Chip Conveyor
  • Fiber Beam Transmission System (Fiber Cable)
  • Operates with both N2 and O2 (cutting) gases
  • Home Position Alignment System
  • Precision Rack & Pinion Drive System (Made in Germany)

Optional Equipment:

  • Automatic beam centering system.
  • Linear motor technology
  • Laser Safety Barrier
  • Precitec cutting head
  • Automatic sheet metal loading and unloading system.
  • Compressor
  • 1KW – 2KW – 3KW – 4KW – 5KW – 6KW – 8KW Laser power options available.
