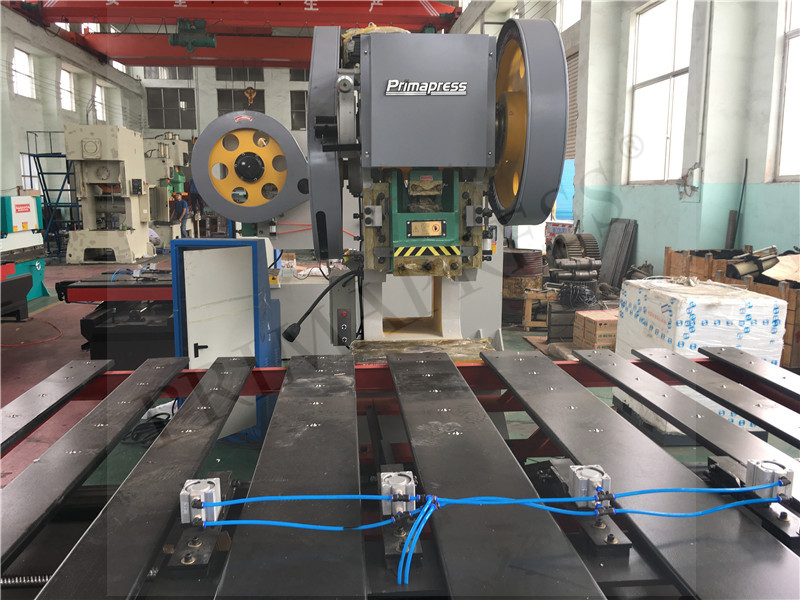

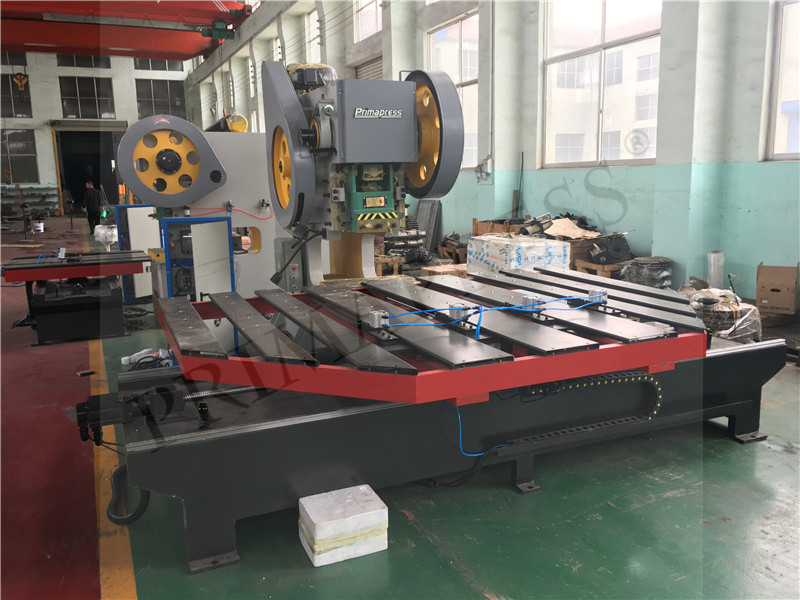

Deep throat press machine with cnc feeding table

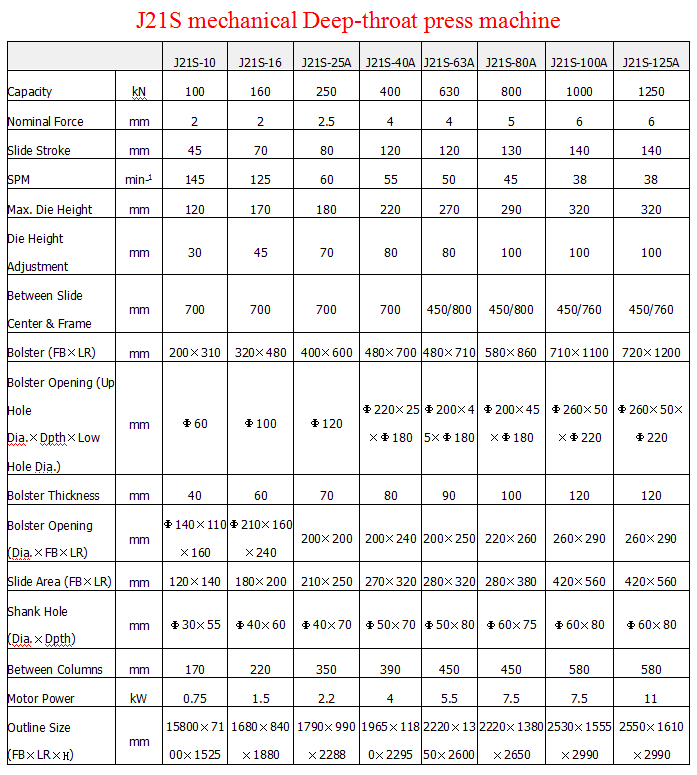

J21S mechanical Deep-throat press machine

J21S-10 J21S-16 J21S-25A J21S-40A J21S-63A J21S-80A J21S-100A J21S-125A
Capacity kN 100 160 250 400 630 800 1000 1250
Nominal Force mm 2 2 2.5 4 4 5 6 6
Slide Stroke mm 45 70 80 120 120 130 140 140
SPM min-1 145 125 60 55 50 45 38 38
Max. Die Height mm 120 170 180 220 270 290 320 320
Die Height Adjustment mm 30 45 70 80 80 100 100 100
Between Slide Center & Frame mm 700 700 700 700 450/800 450/800 450/760 450/760
Bolster (FB×LR) mm 200×310 320×480 400×600 480×700 480×710 580×860 710×1100 720×1200
Bolster Opening (Up Hole Dia.×Dpth×Low Hole Dia.) mm Φ60 Φ100 Φ120 Φ220×25×Φ180 Φ200×45×Φ180 Φ200×45×Φ180 Φ260×50×Φ220 Φ260×50×Φ220
Bolster Thickness mm 40 60 70 80 90 100 120 120
Bolster Opening(Dia.×FB×LR) mm Φ140×110×160 Φ210×160×240 200×200 200×240 200×250 220×260 260×290 260×290
Slide Area (FB×LR) mm 120×140 180×200 210×250 270×320 280×320 280×380 420×560 420×560
Shank Hole (Dia.×Dpth) mm Φ30×55 Φ40×60 Φ40×70 Φ50×70 Φ50×80 Φ60×75 Φ60×80 Φ60×80
Between Columns mm 170 220 350 390 450 450 580 580
Motor Power kW 0.75 1.5 2.2 4 5.5 7.5 7.5 11
Outline Size (FB×LR×H) mm 15800×7100×1525 1680×840×1880 1790×990×2288 1965×1180×2295 2220×1350×2600 2220×1380×2650 2530×1555×2990 2550×1610×2990

Automatic Feeder Table For Punching machine , Scope, Specification and Standard feature

1)    Effective stroke 1000×1000mm(X×Y), This is Max. sheet size for punching in first locating too. It’s capable to punching 1000 wide sheet by means of turning around the sheet in second locating and the system assures position accuracy automatically. It have also automatic positioning of sheets. So the sheets can alwasy be put in the right position.

2)    Accuracy ±0.1mm for distance between holes,Center linearity of holes ±0.1mm.

3)    Feed Speed 25 m/min,

4)    overall Dimension 1200×1000×620 mm.

5)    Casting Frame, Tempered.

6)    linear guide way and precision ball screw.

7)    Table surface with balls or nylon brushes.

8)    Pneumatic/manual Clamps(optional).

9)    Dorna actuating motor.

10)   One Set Electrical Control and Control cabinet

11)   Control System ADTECH. The system is original created, which will be upgraded periodically, and allow automatic conversion and punching from AutoCAD.

12)   Automatic reposition function, better for large volume production.

13)   Control Cabinet (Main Operation Desk), with industrial PC and display

14)   Power Supply: 3 KVA 380V/3 ph, 50Hz.(In accordance with power supply on site )

15)   PLC is Xinjie Brand and servo motor is Beijing Huada

16)   Precion ball screw and linear rail from Taiwan

17)   Pneumatic clamping device
