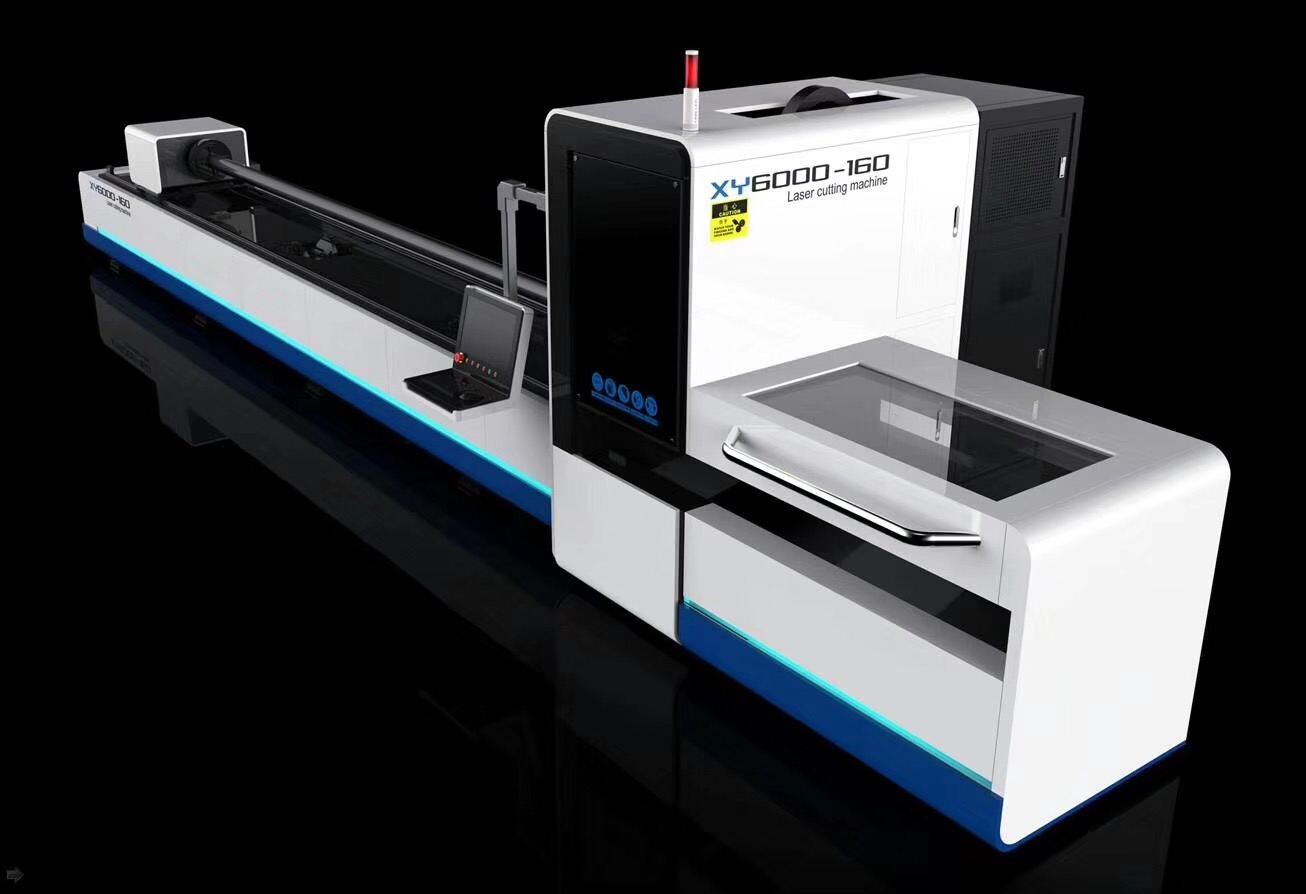

Cnc Fiber Laser Metal Cutting Machine For Stainless Steel Round,Square, Rectangular Pipe And Tube

Share on facebook
Share on twitter
Share on linkedin

Description

Cnc Fiber Laser Metal Cutting Machine For Stainless Steel Round,Square, Rectangular Pipe And Tube

Video link:

Pipe Automatic Bundle Loader features
1.Automatic bundle loader for option which saves labor and loading time, achieve mass production purpose
2.Round pipe, rectangular pipe and other pipes can be fully automated loading, without human intervention.
3.Other shapes pipe can be semi-automatic feeding artificially.
4.Max Loading Bundle 800*800mm
5.Max Loading Bundle Weight 2500kg
6.The tape support frame for easy removal
7.Bundles of tubes lifting automatically
8.Automatic separation and automatic alignment
9.Robotic arm stuffing and feeding accurately

Automatic collecting device:
1.Automatic elevating support, receive tube and scrap into the basket
2.Visual scale support can adjust support diameter quickly according to pipe diameter
3.Visual scale adjustable support lifting device saves feeding time, ensures concentricity, prevents pipe swinging

Machine Technical Parameters
Laser power 1000W 1500W 2000W 2500W 3000W
Laser source IPG/nLIGHT fiber laser resonator
Pipe/Tube processing (Φ x L) Φ=20-300mm, L=6m,8m,12m(Φ=20-300mm for option; L>6m for option)
Pipe/Tube category Round, square, rectangular, oval, waist round, etc
Rotate speed 120 turn/minute
CNC control Cypcut / Germany PA HI8000
Laser head Switzerland Raytools
Power supply AC380V±5% 50/60Hz (3 phase)
Total electric power 22KW
Position accuracy ±0.03mm/m
Repeat position accuracy ±0.02mm
Maximum position speed 90m/min
Acceleration 1.2g
Drawing programming mode Solidworks,Pro/e,UG, etc import directly
Machine weight 6.5-7.5T
  1. Purchase Service
    PRIMA LASERhave a specialize and efficiency working team.If you are new on the laser machine, we will give you specialized suggestion of whole work .
    2. Shipping Service
    PRIMA LASERhave a specialized and independent department which just for arranging shipping for buyer’s goods .The workers are knowing T/T,L/C Items well.all Exported documents could be made perfectly .
    3.Installation Services
    Installation Services are available with all PRIMA LASER Company machines.We will dispatch technician to The Buyer’s factory to installation and preparation of machines.
    4.Clients Training Services
    PRIMA LASER advises the buyer could send own technical come to PRIMA LASER factory to learn how to operate machines.PRIMA LASER Company technician will teach and train the learners hand by hand till he can operate machine by himself.
    5.After Sales Service
    PRIMA LASER machines guarantee time is one year. Spare parts 1 or 2 years.

Our Services

Competitive Pricing

Due to our batch manufacturing, we will have a lower price with best quality machines.

Technical Support

When a breakdown occurs, our technicals are on call for both online & onsite correction.

Strict Quality Control

All machines are inspected by our quality control department before shipped out.

Spare Part Kits

Critical components & worn spare parts are offered to avoid unplanned stops.

Expert Solutions

We will provide you professional expert suggestions for your required machine.

Fast Delivery

All of the machine ordered by our customer will be delivered within 30 days.
