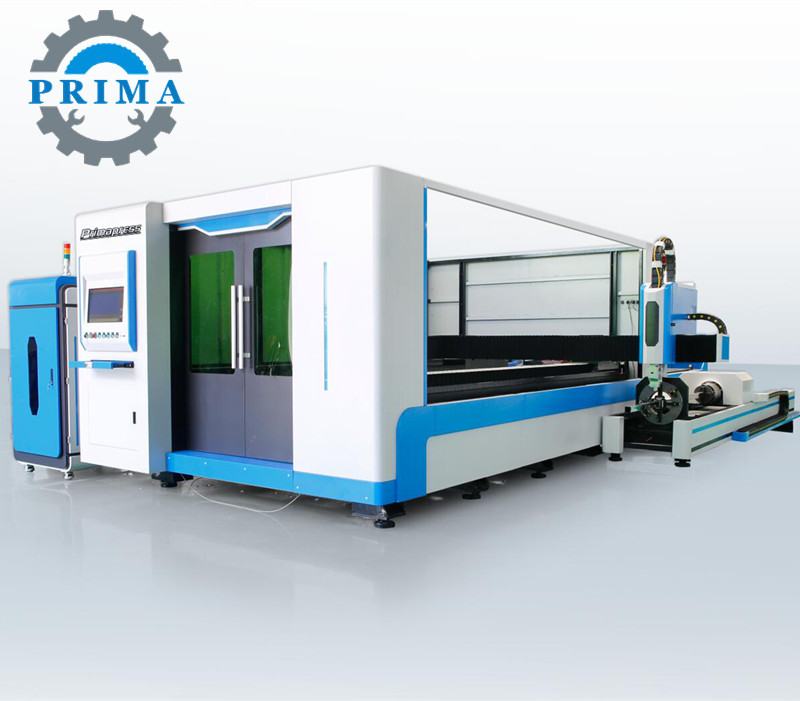

Close Type CNC Fiber Laser Cutting Machine 2kw 3KW With Exchange Table

video link:

PARAMETERS:

Model PM 4000W Fiber Laser cutting machine

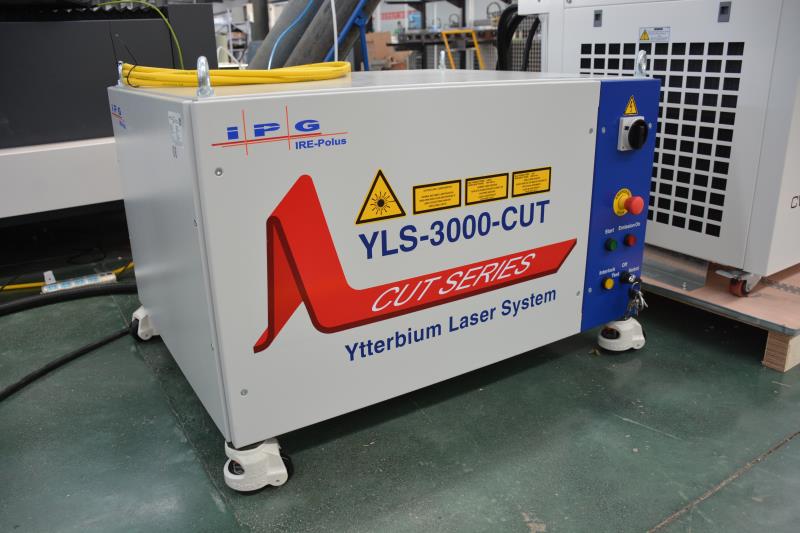

Laser Type IPG
Laser Wavelength 1070nm
Laser Maximum Power 4000W
Max. Cutting thickness Carbon steel 35mm

Stainless steel 16mm

Brass 12mm
Total Power Consumption <10KW
Working Size 6000X2000mm
Max.cutting speed 0-80m/min(Depending on the material and thickness)
X, Y, Z Axis Orientation Precision ≤±0.05mm/m
X, Y, Z Axis Repeat Precision ≤±0.03mm /m
Min line width ≤0.15mm
Maximum Empty Running Speed 120m/min
Driving way Japanese YASKAWA servo motors system
Transmission way Y-axis imported gear rack double driver,

X-axis imported ball screw
Cooling System Water Cooling
Continous working time 24 Hours
Environment temperature 0-35°C
Power requirements 220V /50Hz or 60Hz


Applications: High precision Metal material cutting

(Fine cutting for precision parts and various crafts, cutting surface is bright and clean, no need subsequent treatment)
