China Double Head sheet metal cnc v cutting machines cnc v planer machines
DESCRIPTION
China Double Head sheet metal cnc v cutting machines cnc v planer machines

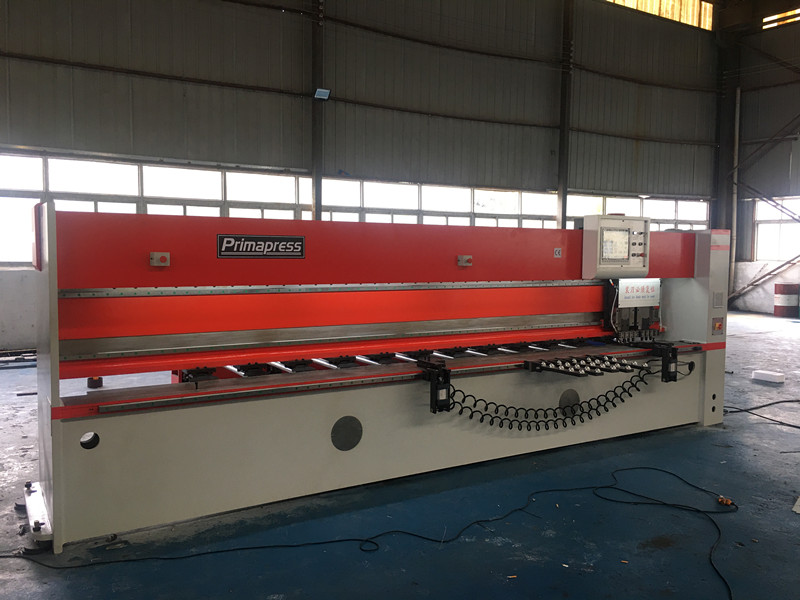

this is Primapress newly developed Double Head sheet metal cnc v cutting machines cnc v planer machines .

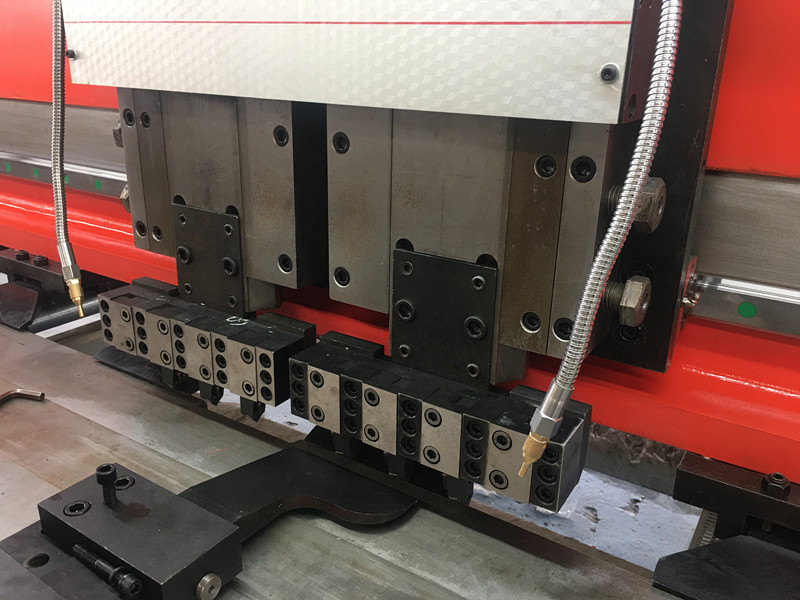

it can groove the metal sheets from both sides, so the speed is double.
video link: https://youtu.be/MHwCKXgTwI8
Technical sheets:
| Max. width of steel sheet to be notched: | 1250mm | 1250mm |
| Max. length of steel sheet to be notched | 4000mm | 3200mm |
| Maximum thickness of steel sheet to be notched: | 6mm steel
4mm stainless steel |
6mm steel
4mm stainless steel |
| Min. thickness of steel sheet to be notched | 0.8mm | 0.8mm |
| Max. distance of the beam movement (backward and forward ) | 1250mm | 1250mm |
| Min. distance of V-trough edge: | 15mm | 15mm |
| Max. distance of tool carrier movement (upward and downward) (in the direction of axle Z) | 50mm | 50mm |
| Resolution of tool carrier movement (upward and downward) (in the direction of axle X) | 4300mm | 3400mm |
| Cutting speed: | 15m-60m/min | 15m-60m/min |
| Min. setting unit of axle Y | 0.001mmmm | 0.001mmmm |
| Positioning precision of axle Y | ±0.02mm | ±0.02mm |
| Min. setting unit of axle Z | 0.001mm | 0.001mm |
| Positioning precision of axle Z | ±0.02mm | ±0.02mm |
| Pressure range of gas circuit: | 0.4-0.6mpa | 0.4-0.6mpa |
| Gross weight | 9500kg | 9500kg |
| Dimension: | 5900*2600*2300(mm) | 5100*2600*2300(mm) |
