DESCRIPTION

C-frame Deep drawing Press Forming Machine Hydraulic Press 125 tons C frame hydraulic deep drawing press machine

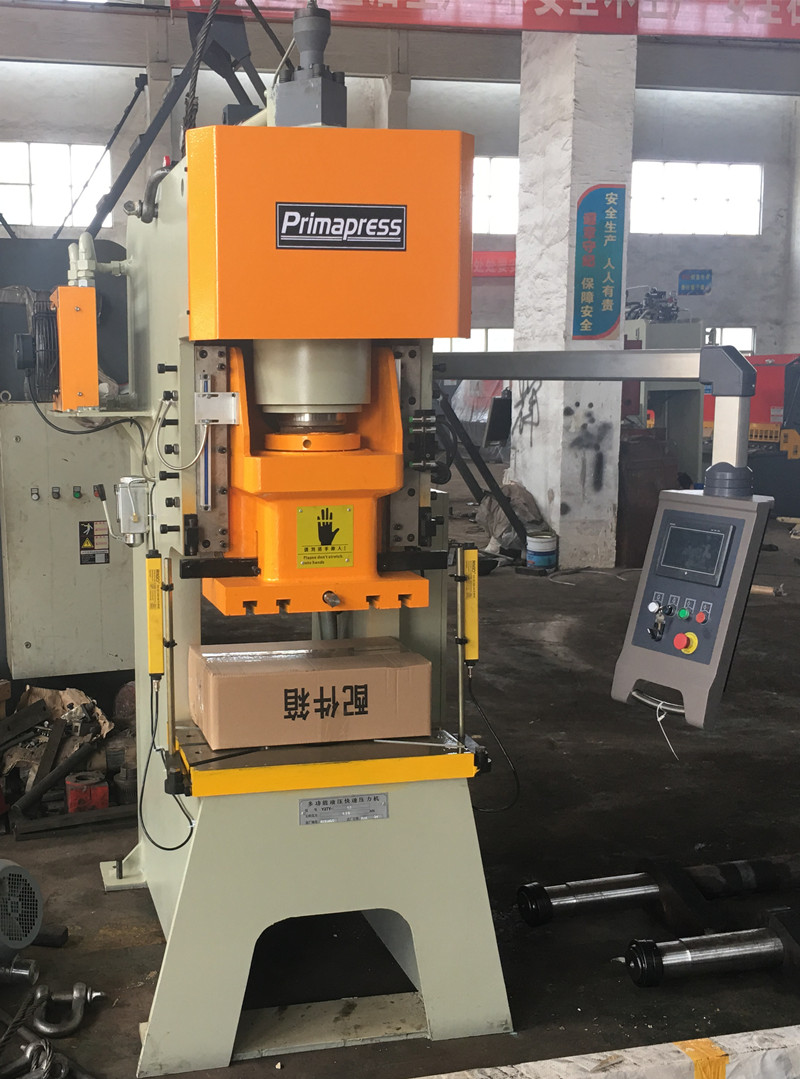

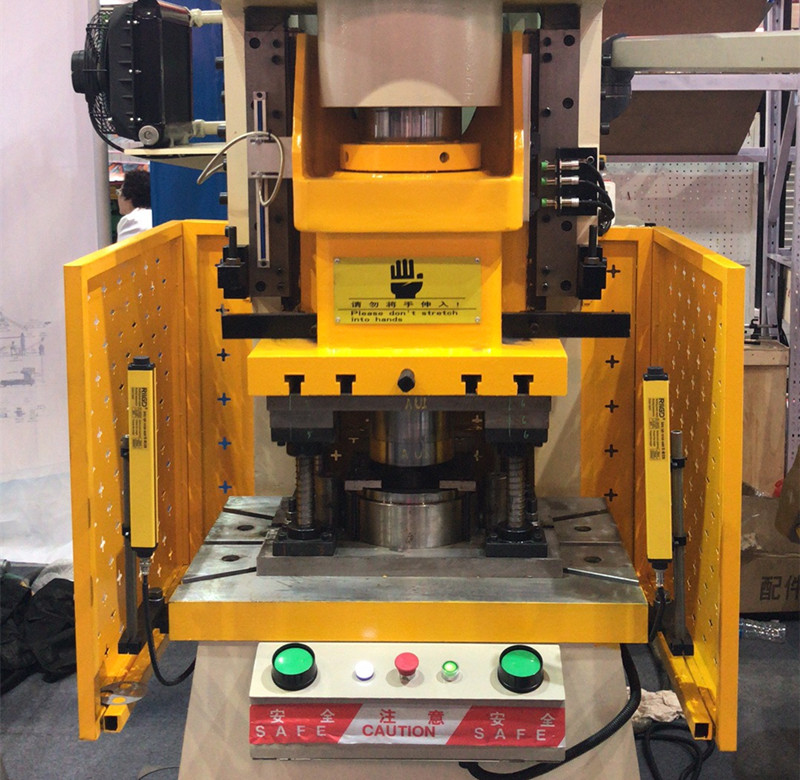

C-frame Deep drawing Press Forming Machine Hydraulic Press 125 tons C frame hydraulic deep drawing press machine/Taiwan C Type Hydraulic Press / Hydraulic Drawing Machine Press from Primapress
Primapress C Type Hydraulic Press Characteristics:
1) C frame steel structure with 3 sides open for flexible and easy operation. With energy saving design concept, it enjoys low energy consumption but fast speed.
2) Hydraulic system is installed in-housed which could save space and its loop is specially designed based on the latest advanced Taiwan technology, all contributing to compact structure, little fault and easy maintenance.
3) Pressure and stroke are easy to be adjusted on the 7 inch touch screen so as to facilitate various production requirements and improve work efficiency.
4) Japan DAIKIN SERVO control system is adopted for faster speed, less energy consumption, lower noise, longer life span and cleaner working environment.

China manufacture C-frame hydraulic press machine Optional:
1) Touch Screen Display (HMI)
2) Heating available by Electric Heaters / Heat Transfer Oil / Steam
3) Trolley / Moving Bolster for easy die change
4) Cushion Device for anti-shock while stamping
5) Water Cooler / Oil Chiller
6) Mould Stripping Device
7) Air breathing design as per request
8) Accumulators for fast speed and low energy consumption

Particularly applied in the following industries:
1) Automobile Industry: Steel ring, vehicle body, chasis, axle housing, fuel tank, door, wheelbarrow tray and more.
2) Household Appliance Industry: Components for air conditioner, refrigerator, washing machine, microwave oven, electric cooker etc.
3) Kitchen Ware Industry: Stainless steel utensil, LPG cylinder, cooking bench, etc.
4) Aluminum Cookware.

Applications:
1. Compressing and pulling-out of shafts and sleeves.
2. Bending and deep-drawing of metal sheets.
3. Trimming, pressing, braking and punching of metal sheets.
4. Applicable for compressibility test.
5. Counter body and sheet metal parts.
6. OA steel furniture drawers and rail parts.
7. Air-conditioning cold air machine’s shell parts.

Type (HPP)		Unit	HPP-10T	HPP-20T	HPP-30T	HPP-45T	HPP-60T	HPP-80T	HPP-100T
Nominal Pressure		KN	100	200	300	450	600	800	1000
HydraulicCushion Optional	Capacity	KN	30	50	50	100	120	150	200
HydraulicCushion Optional	Stroke	mm	100	120	120	120	140	150	150
Max.Pressure		Map	8	12.8	16	22.2	24.3	25.8	25.8
Max.Opening Height		mm	500	500	550	600	630	720	800
SlideStroke		mm	300	350	350	400	500	500	500
AccuracyError RangeBetweenTables			±0.01mm
Speedof Slide	ReturnSpeed	mm/sec	220	205	250	280	300	300	180
	WorkingSpeed	mm/sec	5~10	5~15	10~25	5~25	8~50	8~50	8~50
	AdvanceSpeed	mm/sec	360	350	350	220	250	260	250
Throatdepth		mm	250	280	300	320	350	350	350
Table Surfaces	F.B.	mm	430	500	500	550	620	650	750
Table Surfaces	L.R.	mm	550	600	600	700	700	800	1000
Ram TableSurfaces	F.B.	mm	300	350	350	380	450	450	500
Ram TableSurfaces	L.R.	mm	410	450	450	500	500	550	650
WorktableHeight		mm	700	710	710	710	720	730	730
WorkTableOpening Diameter		mm	Φ80	Φ100	Φ100	Φ100	Φ140	Φ140	Φ140
Hydrauliccylinder diameter		mm	Φ125	Φ125	Φ140	Φ150	Φ180	Φ200	Φ220
Motor Power		Kw	4	4	4	5.5	7.5	7.5	7.5
Overall Dimension	L.R.	mm	950	1050	1100	1250	1450	1500	1550
	F.B	mm	630	650	650	780	800	950	1050
	Height	mm	1950	2100	2150	2300	2500	2560	2800
MachineWeight		Kg	1200	1700	2200	3100	4600	5300	6800
