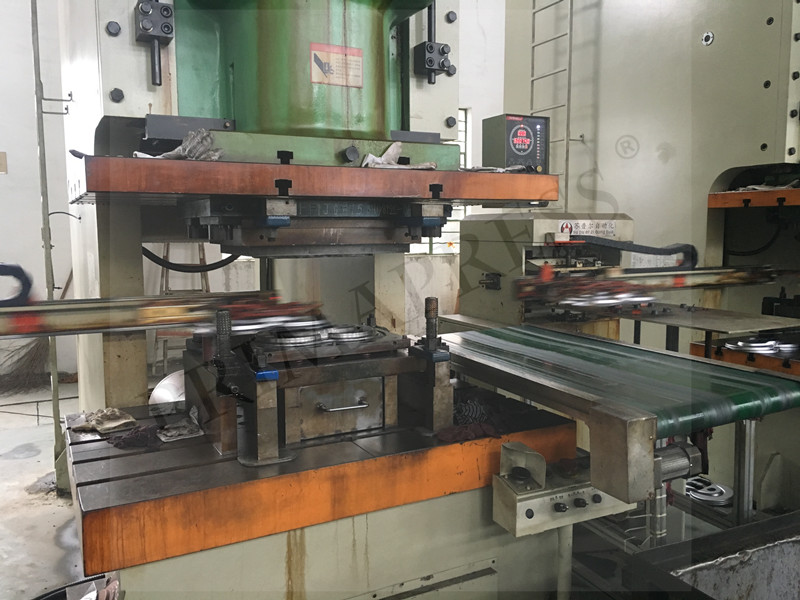

Automatic Punching line with Uncoiler, NC Feeder,Progressive Die

Share on facebook
Share on twitter
Share on linkedin

Description

Automatic Punching line with Uncoiler, NC Feeder,Progressive Die

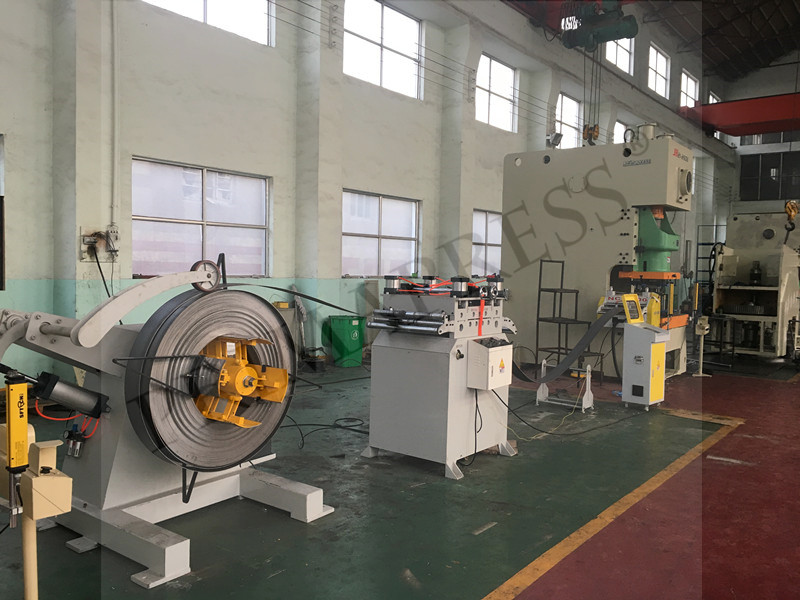

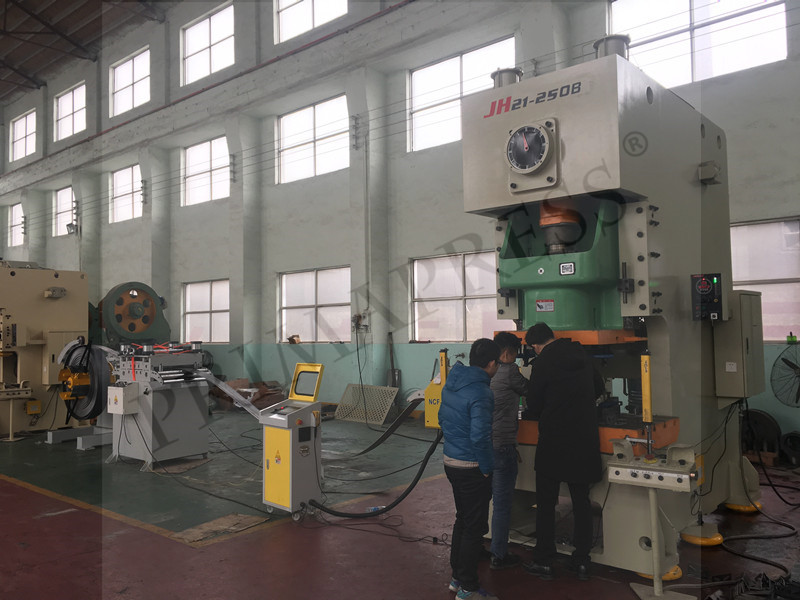

Components for Automatic metal box production line:

(1) One Decoiler

(2) One leveling machine

(3) One NC feeder

(4) One punching press machine

(5) One product collecting table

(6) One Elcetrical control panel

(7) One punching mold

Production steps of automatic production line:

Decoil roll material—–Leveling material—–Feeding—–Punching—–Collecting product

Meeting respective usage and functions:

(1)  Making multi grips of stainless steel

(2)  Making sheet brace straps

(3)  Making suspended ceiling hanger and connector

(4)  Making various hardware fitting product

(5)  Making metal spare parts

(6)  Perforating metal roll material

Our advantage:

♦ It is widely used in punching,cutting,bending,droping,forming,shallow stretching and other pressing processes.

♦ It can realize full range brake for more safety of operator.

♦ It is easy to operate for new user. No matter it is used for manual or automatic production line

♦ It can design various size of product according to customer request.

♦ Automatic Production can improve production capacity,could save time,could save worker.

♦ We can provide 10 years technican support to you strong and timely support

Main features:

  1. This production line can work automatically. Worker control and regulate this production line through electric control equipment.Feeding,punching,cutting,bending automatically.
  2. Very reliable and steady as the controlling ststem complete with Siemens CPU 224 programmable logic controller (PLC)
  3. It’s integration of Gas & Electrical,centralized control.So feeding length,speed and other parameters are easy to set.
  4. We can design and manufacture different machines on request.

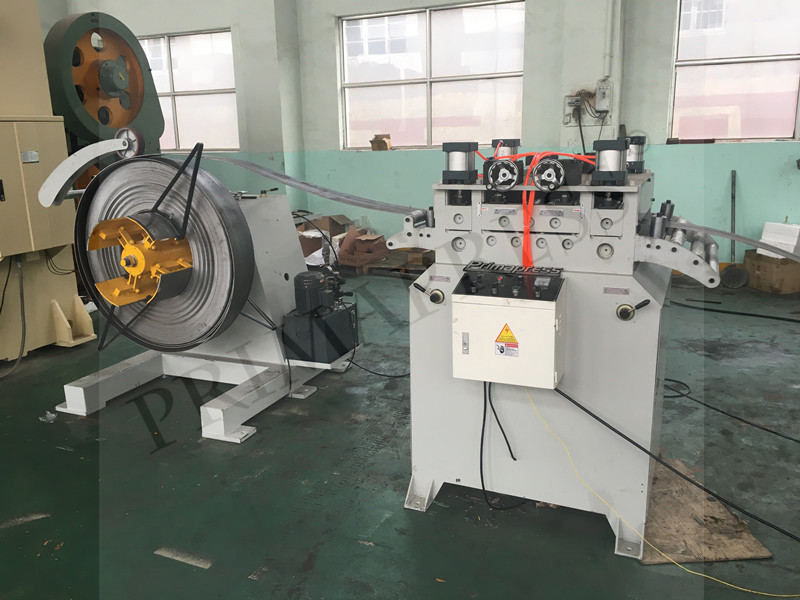

2in1 uncoiler and Leveler Specification:

Model PR-150 PR-200 PR-300 PR-400 PR-500
Max. material width 150mm 200mm 300mm 400nn 500mm
Material thickness 0.4-1.5mm
Material weight 500kg 800kg 1000kg 1500kg 2000kg
Coil inner diameter 450-530mm
Coil outer diameter 1200mm
Straightening motor 1/2(HP) 1 (HP) 2 (HP) 2 (HP) 3(HP)
Uncoiler motor 1 (HP) 1 (HP) 2 (HP) 2(HP) 3 (HP)
Straightening roller Diameter 20*9/10(up/down)full drive
Straightening adjusting 4 point adjusting
Straightening speed 0-15m/min
Expansion style manual
Induction Induction table style
