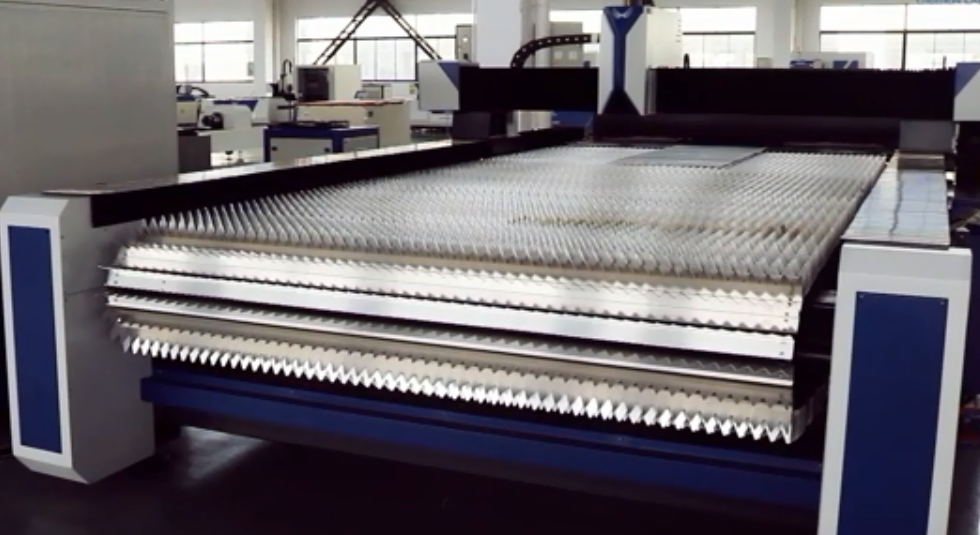

Automatic Coil Feed fiber Laser Cutting Machine With Rolling Table

Automatic Coil Feed fiber Laser Cutting Machine With Rolling Table

Categories Cutting Machine, Laser Cutting machine
Facebook Skype

Description

Coil Automatic Coil Feed fiber Laser Cutting Machine With Rolling Table

This machine is suitable for customers who have the uncoiling machine and straightening/leveller machine, we supply the feeding sysytem and laser cutting system, and unloading system



Automatic Coil-Fed Laser Cutting Machine, with three in one functions, this machine is designed especially suitable for industries like kitchenware, storage shelf and filling cabinet, doors

Technical parameter:

Power: 3000W, 1000W, 1500W, 2000W

Laser：imported, made in China Optional

Cutting head: designed and produced by Primapress

Cutting table dimension: 2000*4000mm and 1500*3000mm optional or customerized design

Rack and pinion: taiwan Hiwin

Servo motor: Fuji, Japan

Three in one functions:

Reel stand loading weight: 5tons and 10tons optional

Decoiling and feeding integrated: suitable for material sheet with thickness 0.5mm to 2mm, ant the max feeding speed is 12m/min, accuracy 0.05mm

Fiber laser cutting
