Automatic 6m Angle steel punching and cutting machine, flange punching line
DESCRIPTION

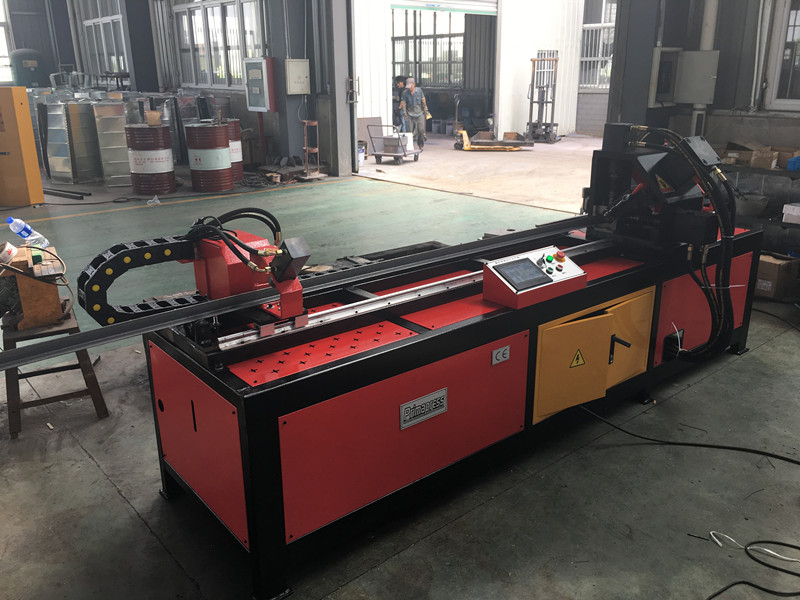

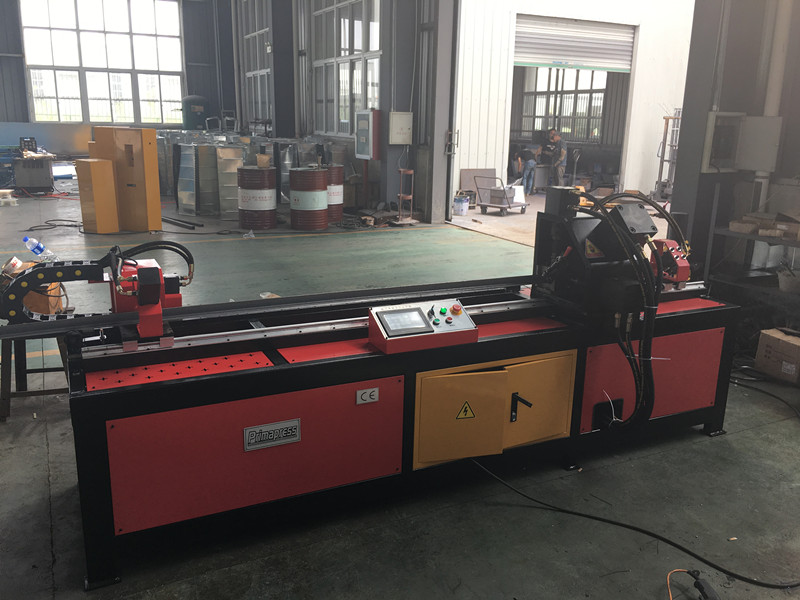

Automatic 6m Angle steel punching and cutting machine, flange punching line
video link:
Angle iron flange punching and cutting machine include 5 parts: feeding device, host part, cutting device, hydraulic and electrical system. PLC control system ensures accuracy, high efficiency and lower labor cost.
1,touch screen of control interface easy to ensure all the details of work piece demanded.
2,adopted an independent development system to improve accuracy of feeding and punching.
2, Using PLC and servo motor, more effective and stable.
3,The self-diagnosis and date statistic function.
4,Automatic punching and cutting.
The specifications:
| Model | angle size(mm) | Max hole dia(mm) | Thickness(mm) | speed (m/min) | Motor (kw) | Weight(Kg) | Dimension(mm) |
| PM16 | 30*30*3-50*50*5 | 16 | 5 | 15 | 7.5 | 2100 | 3500*1200*1600 |
| PM80 | 80*80mm | 16 | 8 | 15 | 8.5 | 2500 | 4700*1100*1400 |
