auto square duct production line 2 pipe tube making machine

Categories Auto HVAC Duct line, HVAC Duct Machine
Get A Quote
Facebook Skype

DESCRIPTION

auto square duct production line 2 pipe tube making machine

video link:

1)Technical sheets:

Model No. Max Coil Width Thickness Range Power  Speed Dimension Weight Diagonal Tolerance
PM2-1.2×1300  1300mm 0.4-1.2mm 10 0-15m/min 2*1.8*1.3m

2.5*1.8*1.5m

 3.5ton  ±0.5mm
PM2-1.2×1550  1550mm 0.4-1.2mm 11.5 0-15m/min 2*2*1.3m

2.5*2.2*1.5m

 4ton  ±0.5mm

2)Standard Features:

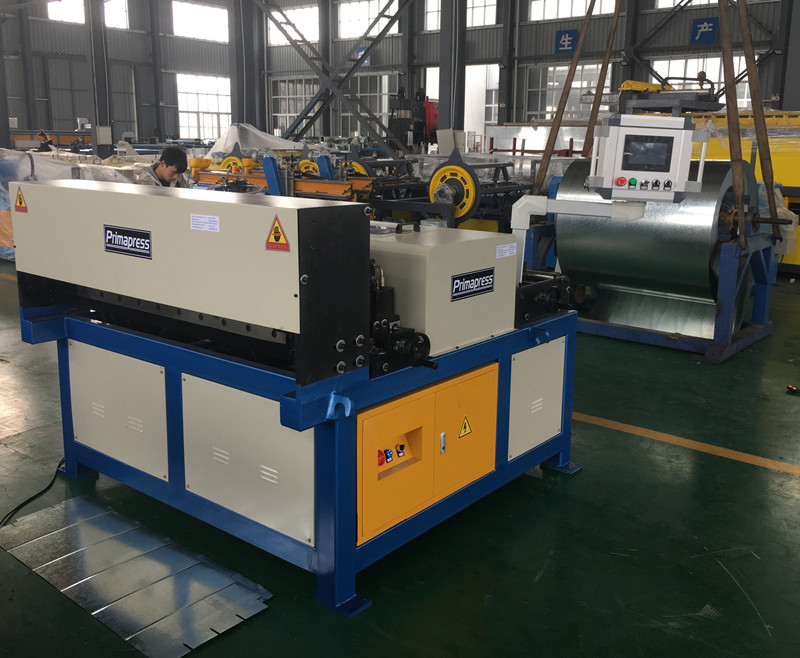

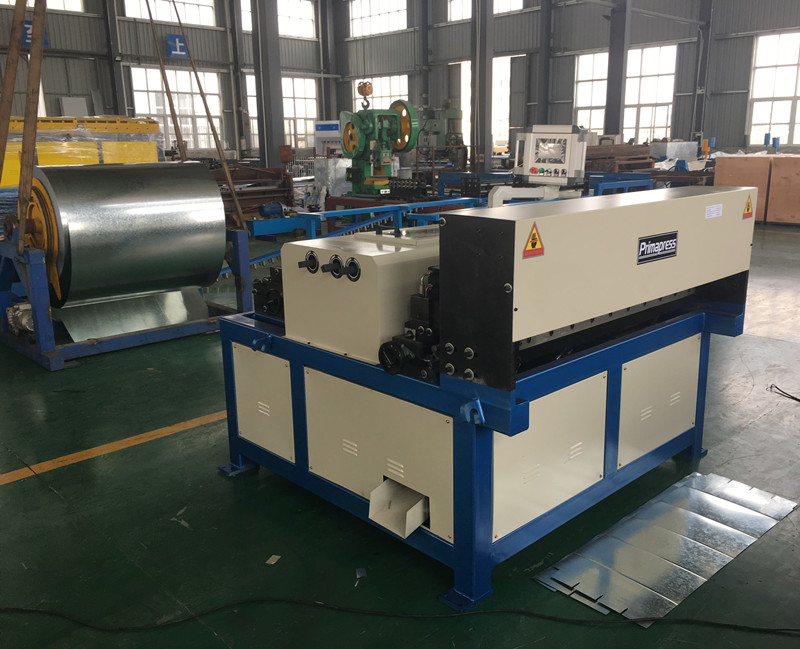

Compact Line II is with hydraulic punching square and notching.
The work flow: coil-straightening-beading-punching-notching-shearing
3)Products Features：

  • Automatic completion of flange plate and angle steel flange pipe material and joint bite
  • Has material saving mode and standard mode;
  • Max-working speed is 13m/min;length tolerance is -0.5mm,diagonal tolerance is -0.8mm
  • With the dual linkage flange plate machine, pneumatic folding machine efficient linear flange plate of the wind pipe production line;

4)Basic Equipment:

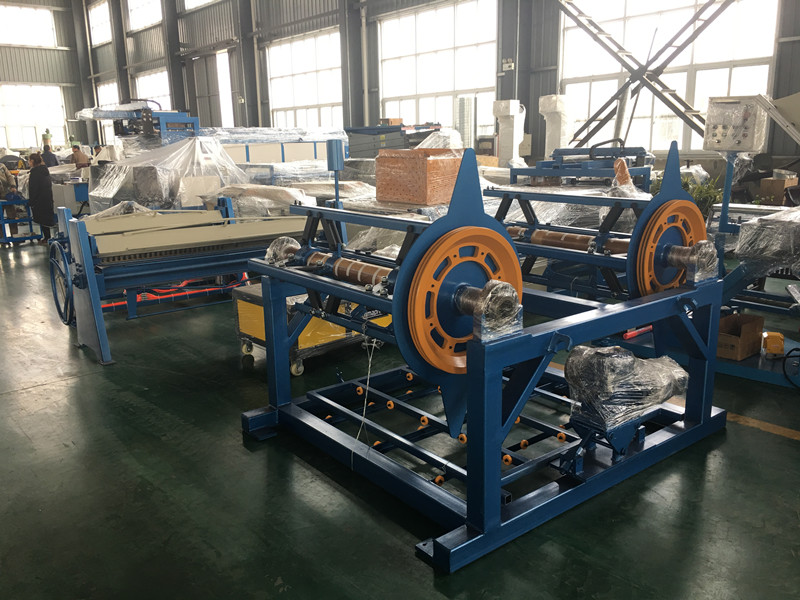

  • Amaterial frame（2coils;the max loading per coil is 7 tons)
  • Atransmission frame         ● A main machine         ●  A CNC system
