Auto duct pipe production line 3, duct pipe making line III

Share on facebook
Share on twitter
Share on linkedin

Description

Auto duct pipe production line 3, duct pipe making line III

Video link:

1)Technical sheets:

Model No. Max Coil Width Thickness Range Power  Speed Dimension Weight Diagonal Tolerance
PM3-1.2×1300  1300mm 0.4-1.2mm 10 0-15m/min 2.8*1.8*1.3m

2.5*1.8*1.5m

4ton  ±0.5mm
PM3-1.2×1600  1500mm 0.4-1.2mm 11 0-15m/min 2.8*2*1.3m

2.5*2.2*1.5m

5ton  ±0.5mm

2)Standard Features:

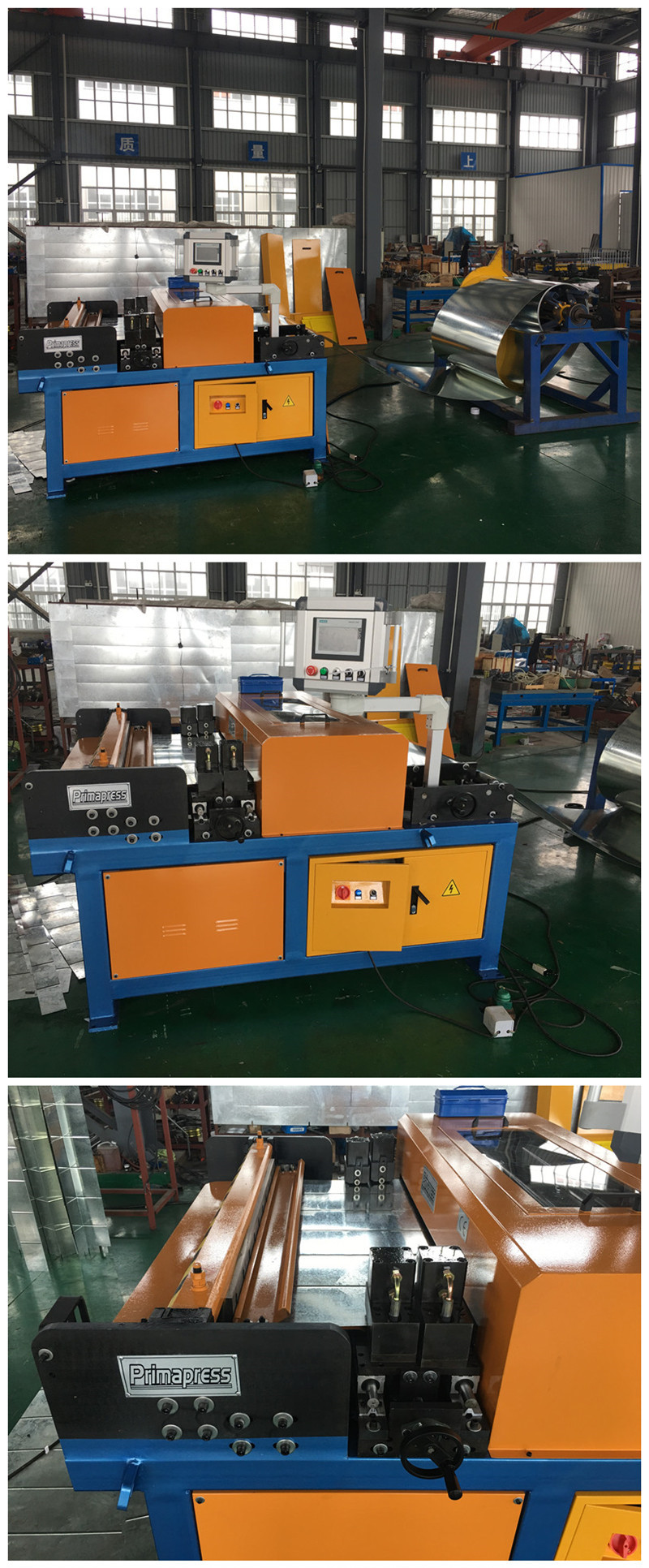

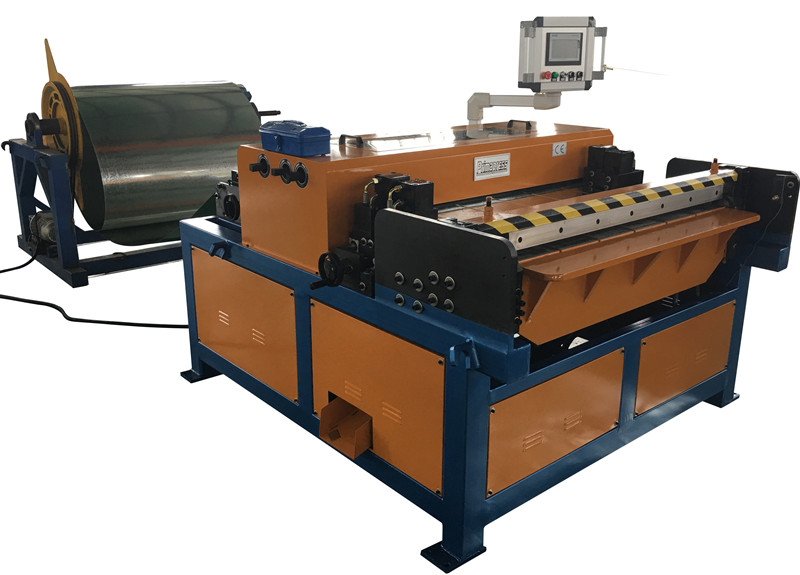

Auto Duct line III consists of a decoiler, leveling & grooving rollers, hydraulic notching & punching machine, hydraulic shearer and hydraulic folder. The electrical control system uses a computer with a closed-loop servo-system to increase the precision and reliability of the line.
3)Product features:
A: Two power metal feeding frames
B: One leveling & grooving roller machine
C: Four hydraulic notch and die, 60HRC , 42CrMo raw material .
D: Hydraulic shearer and folding machine

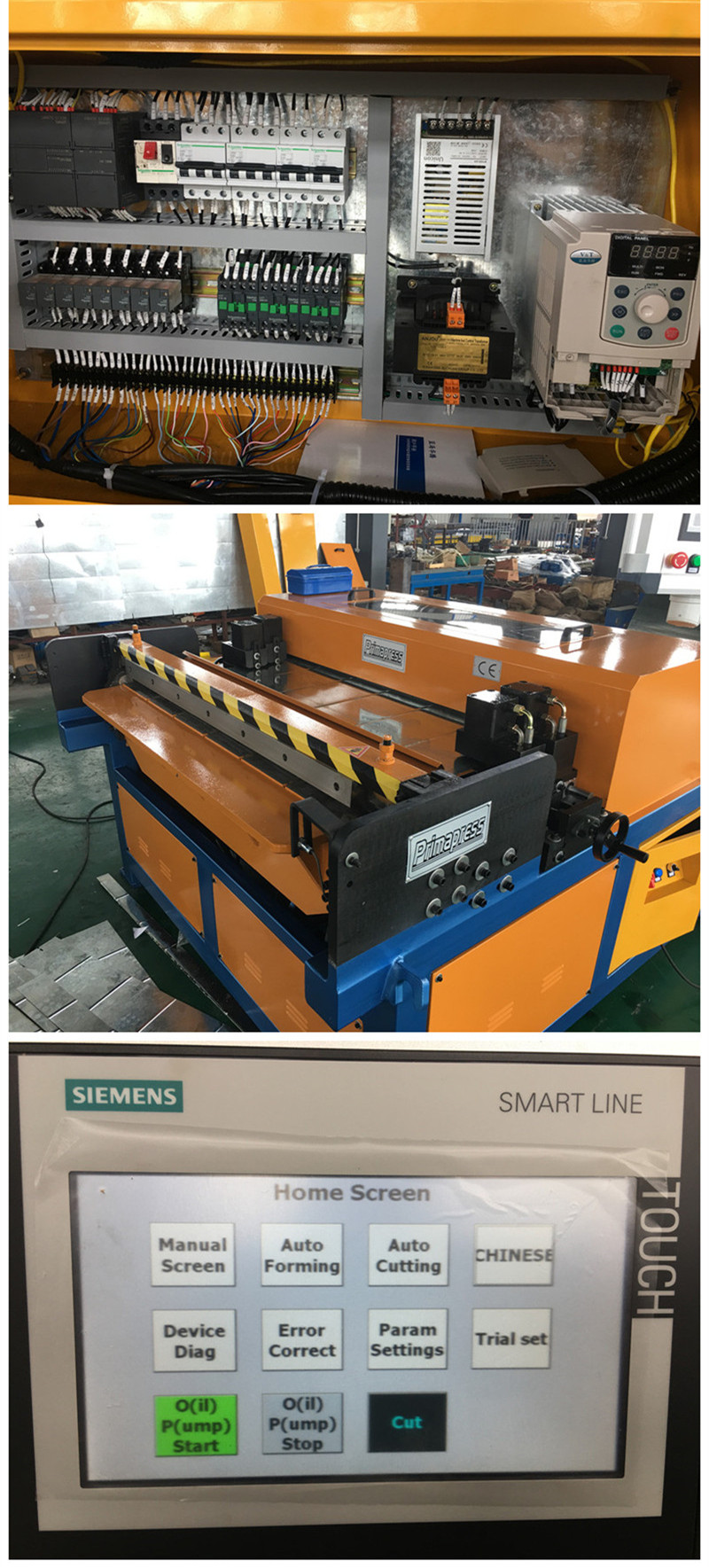

E: Industrial PLC control and specific software, Siemens ,Delta.
