DESCRIPTION

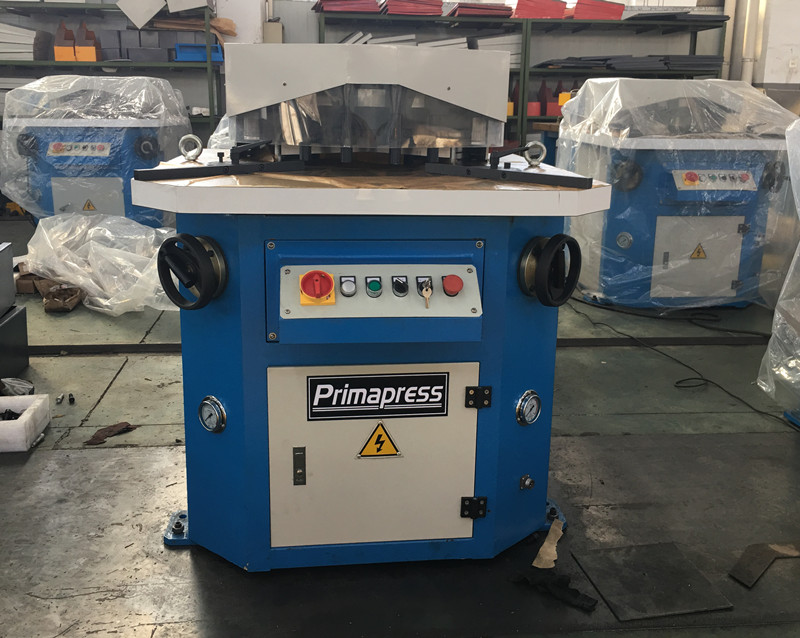

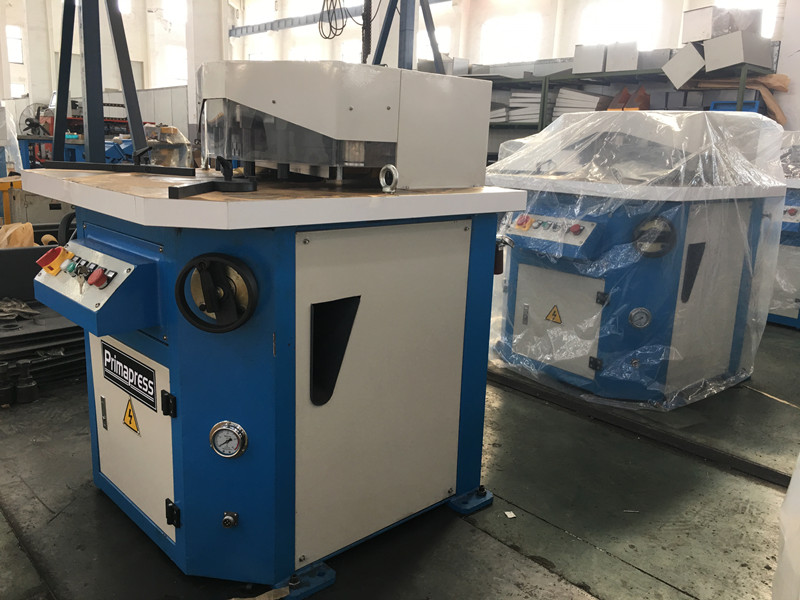

Adjustable angle notching machine, sheet metal angle notcher machines

video link:

1.Hydraulic under move style

2.Adjustable angle from 40 to 135

3.It can adjust the blade clearance according to the plate thickness

4.Single-step or multi-steps

5.Lubrication all together

6.The angle is adjustable in chain.

7.Affordable price and high efficiency

8.Big amount and stock

  1. Whole welding structure.
  2. High accuracy and speed.
  3. Less maintain and longer using life.

Technical parameters:

No Name 4x200mm 6x200mm 8x300mm 10x300mm
1 Max thickness 0.5-4mm 0.5-6mm 0.5-8mm 0.5-10mm
If stainless steel 0.5-2mm 0.5-3mm 0.5-4mm 0.5-5mm
2 Max length 200mm 250mm 300mm 300mm
3 Cutting angle 40-135 30-140 30-140 30-140
4 Stroke times 35-60/min 35-60/min 30-50/min 25-50/min
5 Worktable height 890mm 950mm 1100mm 1300mm
6 Motor power 4Kw 4Kw 5.5Kw 6Kw
7 Length 910mm 920mm 950mm 1020mm
8 Width 760mm 950mm 1020mm 1310mm
9 Height 1050mm 1150mm 1150mm 1290mm
10 Weight 880Kg 970Kg 1150Kg 1420Kg
