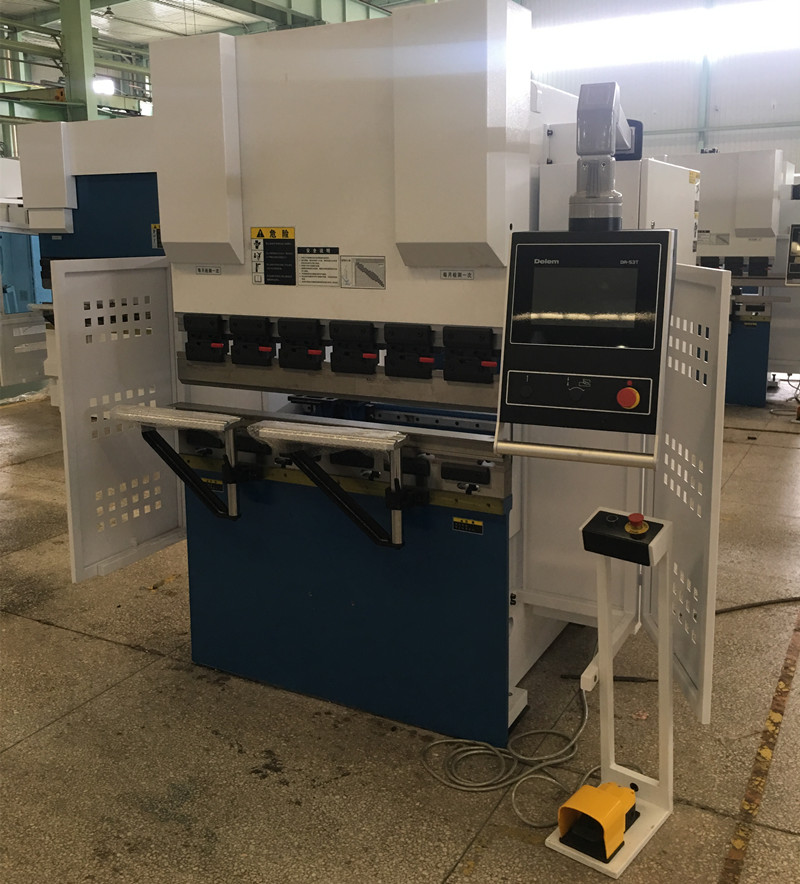

50ton Hydraulic CNC Press Brake Bending machine with Delem DA53T Da58t CNC System
Categories CNC Press Brake, Press Brake
DESCRIPTION
50ton Hydraulic CNC Press Brake Bending machine with Delem DA53T Da58t CNC System
STANDARD CONFIGURATION
1. DELEM DA53
T 2D graphical operator control
2. YI/Y2 synchro pressbrake
3. X – Axis backgaug , prog ammable in 0.01mm increments
4. CNC controlled hydraulic Anti deflection table (crowning)
5. Programmable, angle, depth and TDC positioning
6. European style quick release clamping for top tools
7. Full set of top and bottom tooling
8. 2 Front supports
9. CE Safety specifications
OPTIONAL EQUIPMENT
1. DELEM DA52s CNC System
2. DELEM DA66T CNC System
3. Backgauge X-R or X-R-Z1/Z2
4. DSP Optical Safety Guard
5. 1000ram backgauge stroke

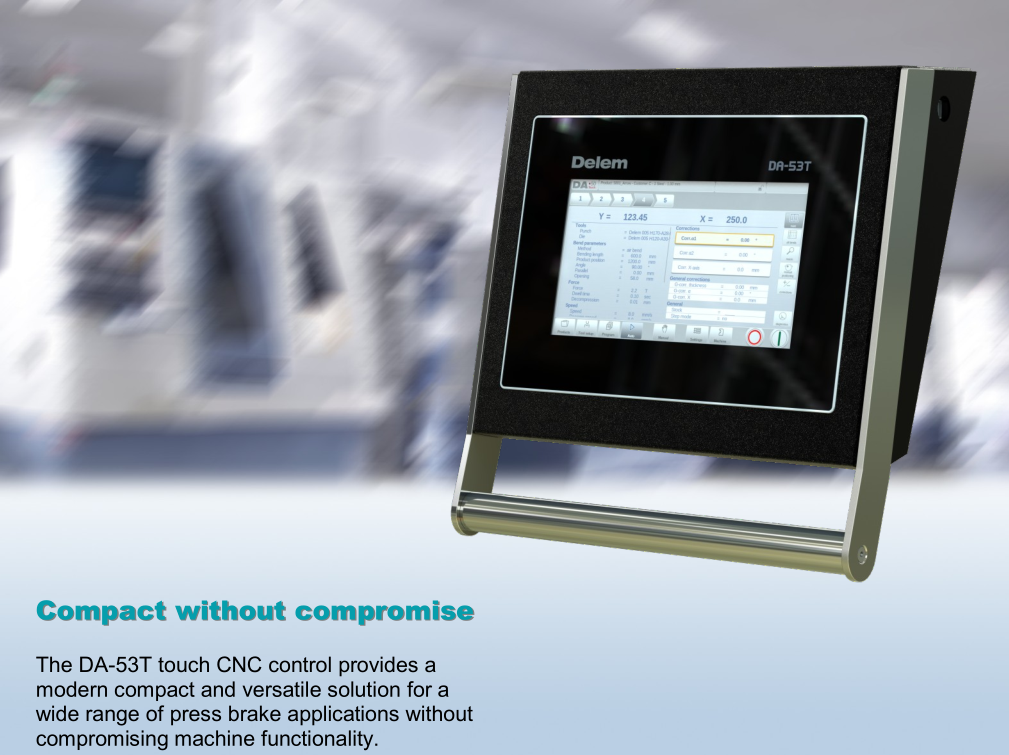

DELEM DA-58T
15″
Touch-screen display
The setup of the machine and the bending test are minimized by means of a fast and simple
program-production sequence.The CNC programs are called up with a single touch.
Specification for CNC Press Brake
Model(SMART FAB) | B1560 | B2580 | B32110 | B32135 | B32175 | B40175 | B32220 | ||
Bending force | KN | 600 | 800 | 1100 | 1350 | 1750 | 1750 | 2200 | |
Bending Length | mm | 1500 | 2500 | 3200 | 3200 | 3200 | 4200 | 3200 | |
Between Columns | mm | 1100 | 2060 | 2700 | 2700 | 2700 | 3700 | 2700 | |
Daylight | mm | 405 | 405 | 430 | 430 | 430 | 430 | 430 | |
Slide Stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
Throat Depth | mm | 370 | 400 | 400 | 400 | 400 | 400 | 400 | |
Bolster Width | mm | 80 | 80 | 100 | 100 | 100 | 100 | 140 | |
Down Speed | mm/min | 200 | 200 | 180 | 180 | 160 | 160 | 160 | |
Pressing Speed | mm/min | 8 | 8 | 10 | 10 | 10 | 10 | 10 | |
Return Speed | mm/min | 180 | 180 | 150 | 150 | 150 | 150 | 140 | |
Back Gauge Stroke | mm | 500 | 600 | 800 | 800 | 800 | 800 | 800 | |
Outline Size | L | mm | 1825 | 2825 | 3500 | 3550 | 3500 | 4500 | 3500 |
W | mm | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 | 1730 | |
H | mm | 2300 | 2350 | 2650 | 2700 | 2700 | 2750 | 2900 | |
Weight | kg | 4600 | 5600 | 8000 | 9500 | 10000 | 12000 | 13200 |
