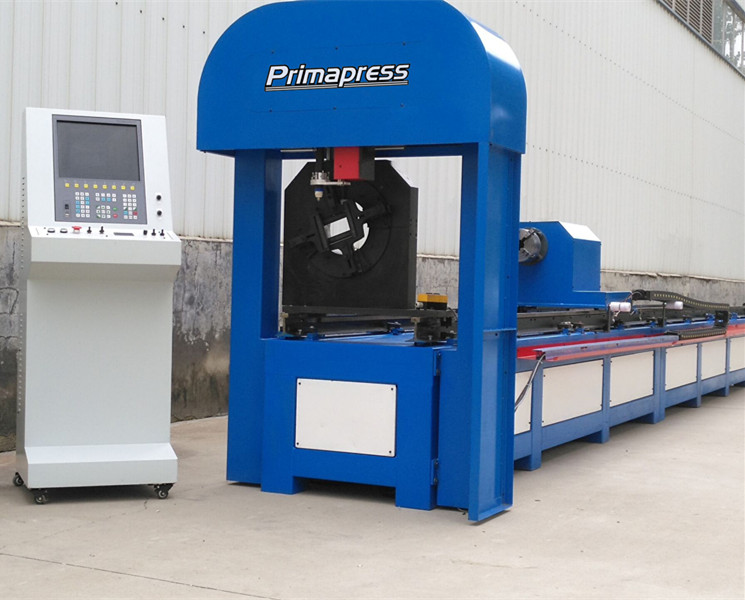

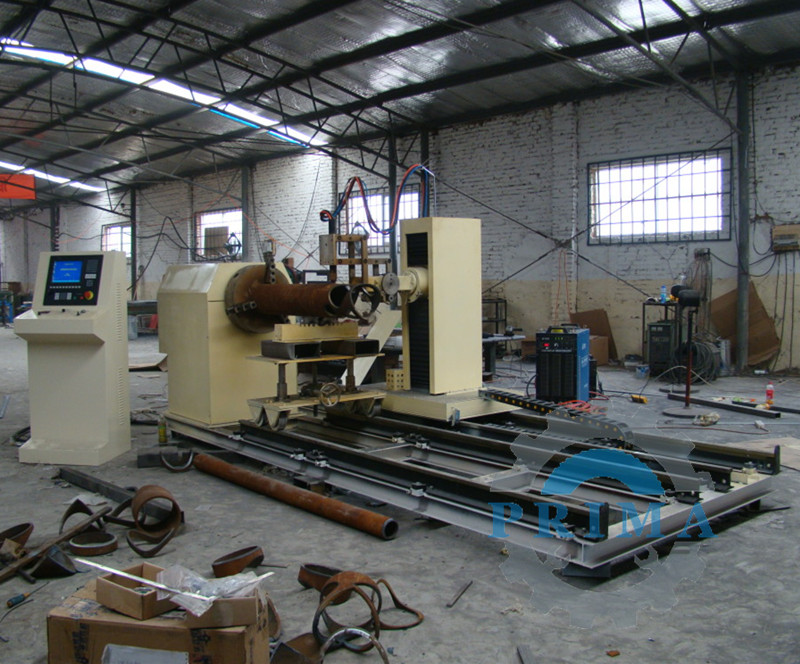

5 Axis 3D Plasma And Flame CNC Pipe Cutting Machine
Categories Cutting Machine, Plasma cutting machine
DESCRIPTION
CNC plasma Pipe cutting machines , cnc plasma cutting pipe machines
5 Axis 3D Plasma And Flame CNC Pipe Cutting Machine
CNC pipe cutting machine, CNC pipe profile cutting machine, pipe cutter
In our CNC pipe cutting machine, we have CNC pipe profile cutting machine and pipe fixed-length cutting machine.
In CNC pipe profile cutting machine, we can equip 6 axis to achieve bevel cutting effect.
In pipe fixed-length cutting machine, it is very economic to achieve pipe cutting off effect.
Every CNC cutting machine, we have plasma and flame options. Regarding to plasma power source, we have Hypertherm, Thermal Dynamics, Kjellberg, Tayor LGK, ESAB, etc, which including plain plasma power source, finefocus plasma power source, hifocus plasma power source, lase-like plasma power source.
Also we have CNC plasma and flame steel plate cutting machine to cut steel plate.
Hypertherm Model | Air Plasma | Oxygen Plasma | HPR130XD | HPR260XD | HPR400XD | HPR800XD | |||
Data | PowerMax1650 | Max200 | HSD130 | ||||||
Mild steel | Production(piercing) | 12 mm | 25 mm | 25 mm | 16mm | 32 mm | 38mm | 38mm | |
Quality | 19 mm | 25 mm | 25 mm | 25 mm | 32 mm | 50 mm | 50mm | ||
Cut off | 44 mm | 50 mm | 35 mm | 38 mm | 64 mm | 80 mm | 80mm | ||
Stainless steel | Production(piercing) | 12 mm | 25 mm | 20 mm | 16 mm | 32 mm | 40 mm | 75mm | |
Cut off | 44 mm | 50 mm | 25 mm | 25 mm | 50 mm | 80 mm | 160mm | ||
Aluminum | Production(piercing) | 12 mm | 25 mm | 20 mm | 16 mm | 25 mm | 40mm | 75mm | |
Cut off | 44 mm | 50 mm | 25 mm | 25 mm | 50 mm | 80 mm | 160mm | ||
Cutting speed (12mm mild steel) | 1447mm/min | 2159mm/min | 2200 mm/min | 2200 mm/min | 3850 mm/min | 3850 mm/min | 3850 mm/min | ||
TD | Air Plasma | Air Plasma | ULTRACUT100 | ULTRACUT200 | ULTRACUT200 | ||||
Data | A40 | A60 | A80 | A120 | AUTOCUT200 | AUTOCUT300 | |||
Max Piercing | 6mm | 10 | 12 mm | 18mm | 25 mm | 35 mm | 15mm | 25 mm | 40 mm |
Best cutting | 4mm | 8 | 10mm | 16 mm | 25 mm | 35 mm | 15mm | 25 mm | 35 mm |
Max cut off | 15mm | 20 | 30 mm | 35mm | 50 mm | 75 mm | 35mm | 50 mm | 75 mm |
Cutting current | 20-40A | 20-60A | 80A | 100A | 200A | 300A | 10-100A | 10-200A | 10-300A |
Power | 380V 6.3KW | 380V 9 KW | 380V 12 KW | 380V 15.4 KW | 380V 32 KW | 380V 48 KW | 380V 18KW | 380V 36KW | 380V 54KW |
