3600ton steel door skin embossing hydraulic press machine 3600ton hydraulic Steel Sheets door skin pressing machine/press embossing forming stamping machine


3600ton steel door skin embossing hydraulic press machine 3600ton hydraulic Steel Sheets door skin pressing machine/press embossing forming stamping machine

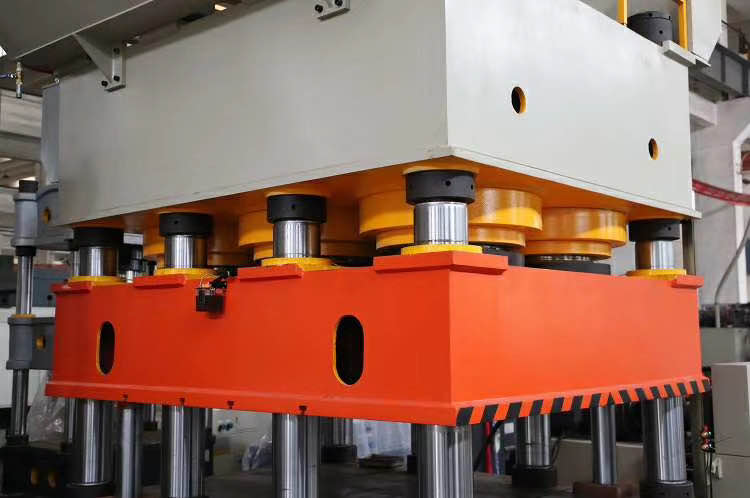

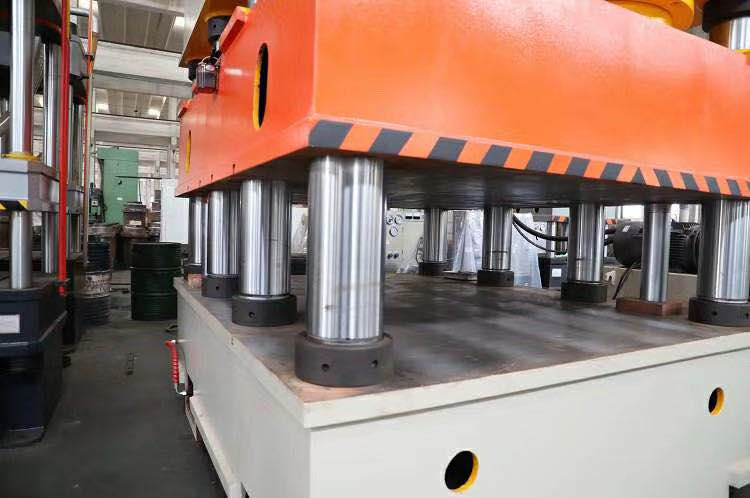

Door Steel Embossing machine, steel door making machine

Machine Body

The machine use rod tightening combination frame structure, with sufficient strength and rigidity;

The slider uses rail guide; machine and slider are welded steel, the material is Q235-A, using carbon dioxide gas shielded arc welding, the weld should be ground smooth, no weld slag and

streaming scars, remove inner stress after weld. Columns guideway using high-quality materials, the guide portion after quenching hardness of HRC50 or more, good wear resistance.

Tope beam, worktable, left and right columns, sliders use Q235-A welded, remove inner stress after weld.

Oil Cylinder

Solo cylinder structure which is disposed on the upper beam hole, cylinder block uses 45 # forged steel,

material uniformity. Plunger rod surface hardening hardness is HRC45-50. The cylinder finishing by high-precision machine tools, cylinder bore after refining process to increase surface hardness and wear resistance,

so that the cylinder block has a high surface hardness, wear resistance and long service life.

Master cylinder seal ring using imported materials, to ensure reliable sealing.

Hydraulic System

Hydraulic system consists of hydraulic station, control valves, piping, accessories. Hydraulic system

provides high-pressure oil pressure and control the host. Hydraulic system arranged in the right of machine.

(1)Hydraulic system adopts advanced cartridge valve integrated system, the valve big flow, anti-pollution, flexible control, reliable performance, easy maintenance. Pilot solenoid valves are made of

high quality products.

(2)Hydraulic system working pressure is 25MPa, the main valve should be two-way cartridge valves. Hydraulic system is with overload protection devices. Hydraulic piping system

design reasonable, piping arranged in an orderly and tidy, high and low pressure pipeline is obvious

color distinction.

Hydraulic piping system should be reliable sealing flange connection priority connections, piping

layout and tidy, and the use

of shock and vibration-resistant gauge pipe clamps, pipe phosphate processing, and then coated

with rust-resistant paint.

(3)How to work Fixed stroke and fixed pressure; hydraulic machine operation: adjust, single cycle,

jog on the mold and work with automatic feeding.

(4)Fuel tank is divided into two parts, oil zone and oil back zone. Tank is steel plate welded structure,

which is installed with the oil level gauge, air filter, etc., tank was after pickling, passivation and anti-rust treatment, with separate oil filtration devices, and enables filtering device blockage accident alarm.

Tank with oil level indication and oil level gauge (upper and lower) alarm device.

(5)Filling valve Description: filling valve is to provide the master cylinder to draw or drain oil.

Electric Control System

(1)with a separate electrical cabinet, cabinet fitted with air switches, and other electrical appliances.

Power requirements 380V/50HZ, three-phase.

(2)on the presses of various alarm signals, limit switch and press action to achieve interlock program.

(3)a centralized control panel on the layout of buttons and a necessary operation selector switch.

(4)with a move button station.

Safety Protection System

(1)stationary and emergency stop button: When an exception occurs press the “stationary” button

presses all the work stopped; press “stop” buttons, including motors are stopped.

(2)wo-hand operation button: hands downlink synchronization time 0.5 ~ 1S.

(3)the hydraulic circuit supporting Insurance: To prevent uncontrolled downward slide in the master

cylinder piston hydraulic bearing inferior vena setting interlock circuit, to ensure safety. Set hydraulic

interlock circuit safety valve to ensure that the support is not open, not on the master cylinder pressure chamber.

(4)overload protection: hydraulic system with hydraulic safety valve to ensure the press not overloaded work.

Technical parameter:

Number Item Unit Specifications
1 Nominal force KN 36000
2 Max working pressure of liquid MPa 30
3 Oil cylinder max stroke mm 500
4 Max opening height mm 600
5 Return force kn 360
6 Work table effective area L-R mm 1800
F-B mm 3000

Slider speed

Fast down mm/s 45-50
Slow down mm/s 8-12
Return mm/s 45-50
8 Main motor power KW 75
