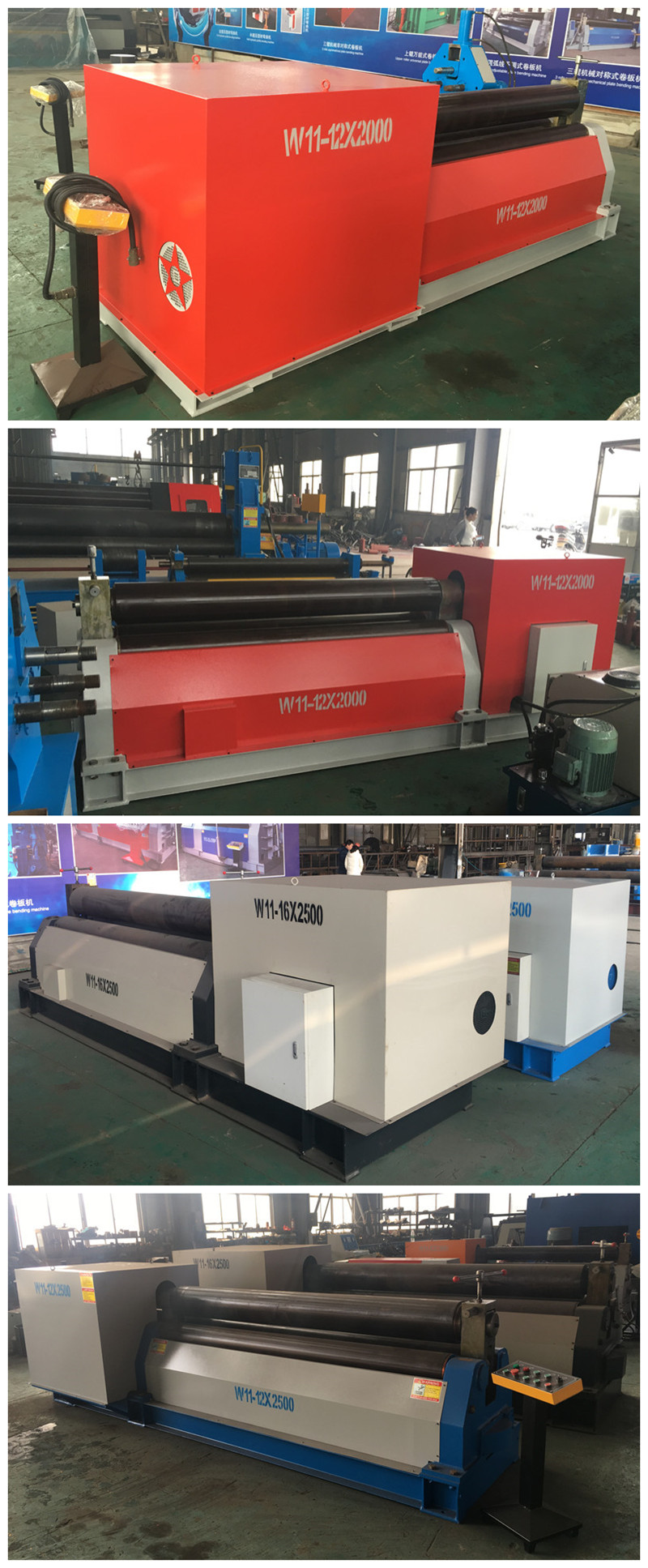

3 rolls W11 Plate rolling machine mechanical plate bending machines

DESCRIPTION

3 rolls W11 Plate rolling machine , mechanical plate bending machines

Main Characteristics:1.3 roller symmetrical;

2,The up roller do the vertical lifting movement in the central of the two down roller;

3, The two down rollers rotates through the reducer,the output gear and the lower roller gear meshing to provide the torque of the coiled sheet.

4, The disadvantage of this machine is the pre-bending should come from other device.

Performance features:

The structure style of this machine is 3 roller symmetrical. The top roller do the movement of elevation in the central position of the two bottom rolls. It’s
transmitted by screw nut and worm gear. Two bottom rolls are main drive rolls. They rotate by the meshing between the output gear of the gear box and the
bottom roller and supply the torque for bending plate. It’s compact, easy operate and maintain.Extended shaft for profile bending.



The Function and Application Scope of the Machinery

This is three-roller non-symmetric rolling equipment. It is mainly used in the process of cold working in which the sheets within the thickness of 12mm can be bent into different diameter cylindrical tubes.  It is widely used in boiler, chemical industry, mining, construction, shipbuilding and other machinery industry.

W11 3-Roller Mechanical Symmetrical Plate Rolling Machine Technical Parameters

Model Max. Bending thickness(mm) Max. Bending width(mm) Yield limit(Mpa) Coiling Speed(m/min) Top roller diameter(mm) Bottom roller diameter(mm) Central distance(mm) Main power(Kw)
W11-4x1500 4 1500 245 5 150 140 200 4
W11-4x2000 4 2000 245 5 160 150 220 4
W11-6x1500 6 1500 245 5 160 150 220 4
W11-6x2000 6 2000 245 5 170 160 220 5.5
W11-6x2500 6 2500 245 4.5 180 170 250 5.5
W11-8x1500 8 1500 245 5 170 160 220 5.5
W11-8x2000 8 2000 245 4.5 180 170 250 5.5
W11-8x2500 8 2500 245 4.5 240 180 280 7.5
W11-12x2000 12 2000 245 4.5 240 180 280 7.5
W11-12x2500 12 2500 245 4.5 260 220 320 11
W11-12x3000 12 3000 245 4 280 240 360 11
W11-16x2000 16 2000 245 4.5 260 220 320 11
W11-16x2500 16 2500 245 4 280 240 360 11
W11-16x3000 16 3000 245 4 340 270 440 15
W11-20x2000 20 2000 245 4 280 240 360 11
W11-20x2500 20 2500 245 4 340 270 440 15
W11-25x2000 25 2000 245 4 340 270 440 15
W11-25x2500 25 2500 245 4 370 280 480 22
W11-30x2000 30 2000 245 4 370 280 480 22
W11-30x2500 30 2500 245 4 420 360 550 30
W11-30x3000 30 3000 245 4 450 390 600 30
W11-40x2500 40 2500 245 4 500 400 600 37

Description and specification given in this catalogue are subject to modification without notice.
