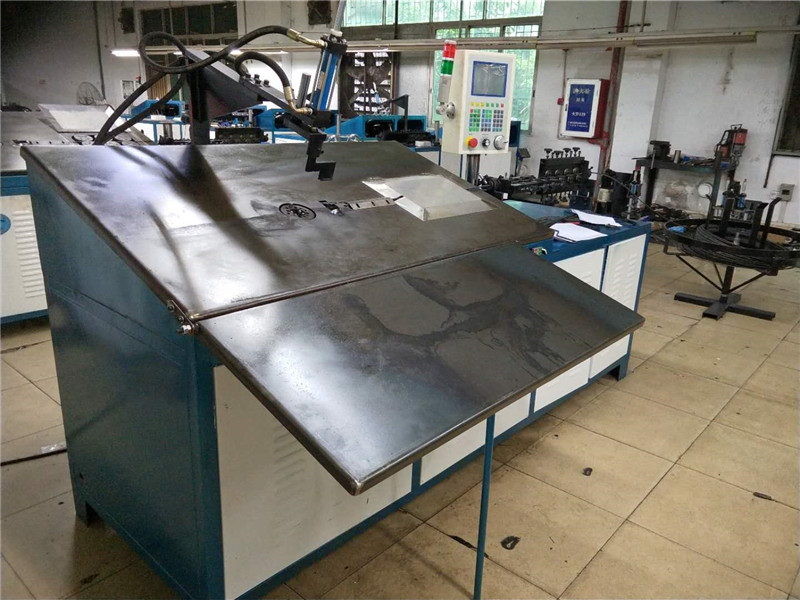

3-8MM stainless steel 3d cnc wire bending machine, 3d wire bending machine

Share on facebook
Share on twitter
Share on linkedin

Description

3-8MM stainless steel 2d cnc wire bending machine, 2d wire bending machine

Video link in Youtube:

Advantages & Feature:

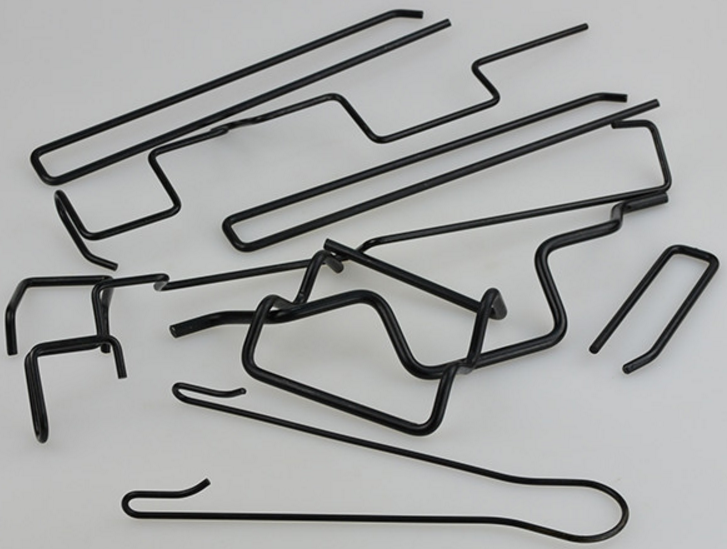

CNC wire bending machine is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki Servo motorand screen display with Taiwan controller.

3-4 pairs feeding roller, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.

Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.

Application Field:

1) Auto Industryarea

2) Netal wire industry

3) Furniture and kitchen

5) Hardware industry

6) Mattress, sofa spring srea

7) Architecture area

8) Hardware Artcrafe

Pls contact freely, i will show more testing video 3d cnc wire bending machine as your request.

Technical Parameters

Model PM3D
Bending Diameter 2-6&5-10&6-13mm
Feeding Speed 70m/min
Twisting head off 90 ° minimum time required 0.1s
Reverse the core conversion minimum time required 0.1s
Lane 90 ° minimum time required 0.08s
Maximum speed lifting platform 333mm/sec
Maximum lifting speed reversing mechanism 250mm/sec
The maximum feed stroke Unlimited
Feeding mode Wheel Wire;
Maximum bending radius 50mm
Maximum bending angle 190°
Each number can be set bend Unlimited
Set the number of files Unlimited
Working speed Bending speed 180°/0.5sec
Rotation speed 360°/2sec
Feeding speed 700mm/1sec
Accuracy Bending angle ±0.05°
Rotation angle ±0.05°
