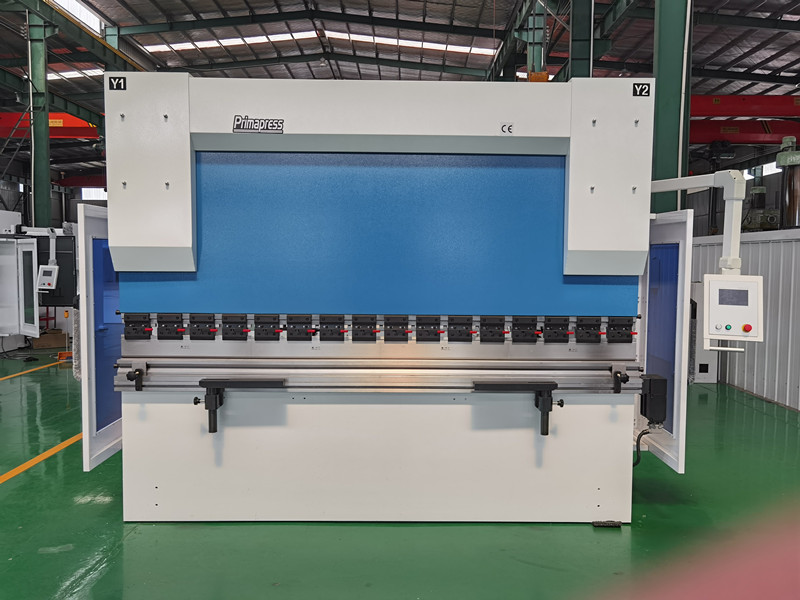

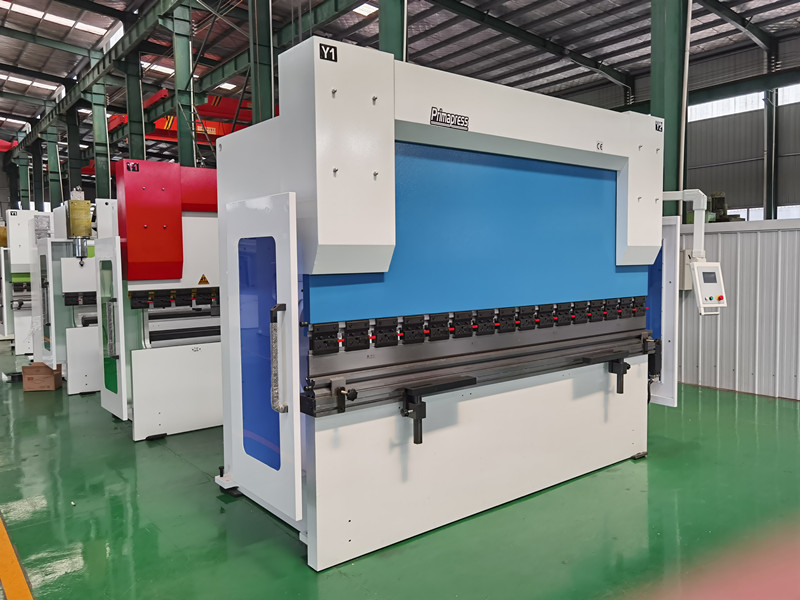

200t/3200mm 4+1 Axis 3+1 axis cnc electro hydraulic cnc press brake bending machine

Share on facebook
Share on twitter
Share on linkedin

Description

200t/3200mm 4 1 Axis 3 1 axis cnc electro hydraulic cnc press brake bending machine

Required specifications for reference.

No Items parameters remarks Leading Bending technology



Excellent Manufacturer

1 Nominal force 2000KN
2 Bending length 3200mm
3 Distance between 2550mm
4 Throat 400mm
5 Stroke 250 mm
6 Max open height 420 mm
7 X, Y axis travel repeat positioning accuracy: ±0.02mm
8 Approach speed(max) 160mm/s
9 Working speed 120mm/s
10 Backing speed 140mm/s
11 Control axis X,Y1,Y2,R, CNC control
12 Dimension 3500x2000x2700mm Removable
13 Electrics 380V/50Hz/3Ph Optional
14 Motor 11 Kw

Attachment with the machine& Machine key components list

No. 1 years spares Remark Name Origin
1- Grease gun& foot switch Free of charge Asynchronous motor Siemens, Germany
2- Keys to button lock and electric cabinet lock FOC Controller Delem DA53T, Holland
3- Foundation bolts FOC Transformer SCHNEIDER
4- O-type sealing rings FOC AC contactor SCHNEIDER
5- Combined washers FOC Circuit Breakers SCHNEIDER
6- Mobile type foot switch Servo motor Estun
7- Operation & maintenance manual In English Gear pump Siemens pump
8- Electrical diagram In English Sealing parts Valqua ,Japan
9- Operation Instruction ENGLISH

Operation Instruction(Machine)

Packing list, Instruction of System

Certificates of quality

Hydraulic Integrated Systems Bosch, Germany,
Quick release China Shanghai

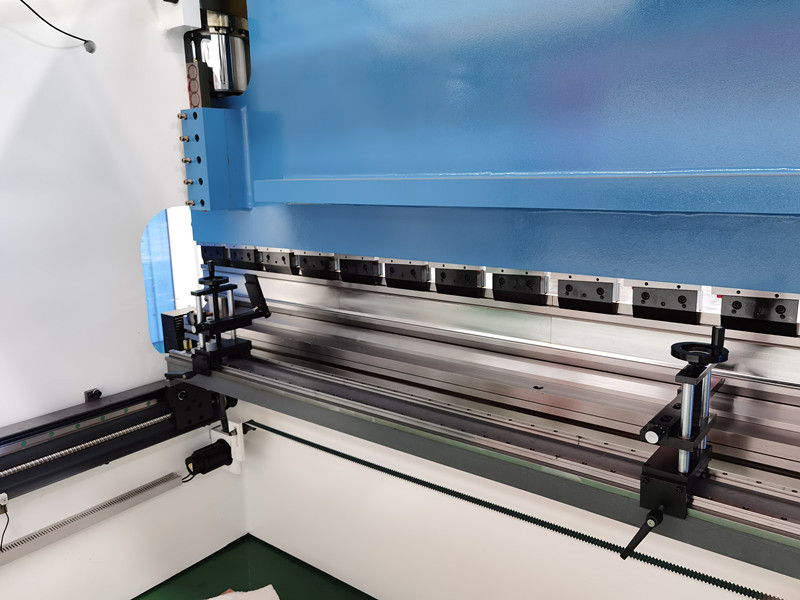

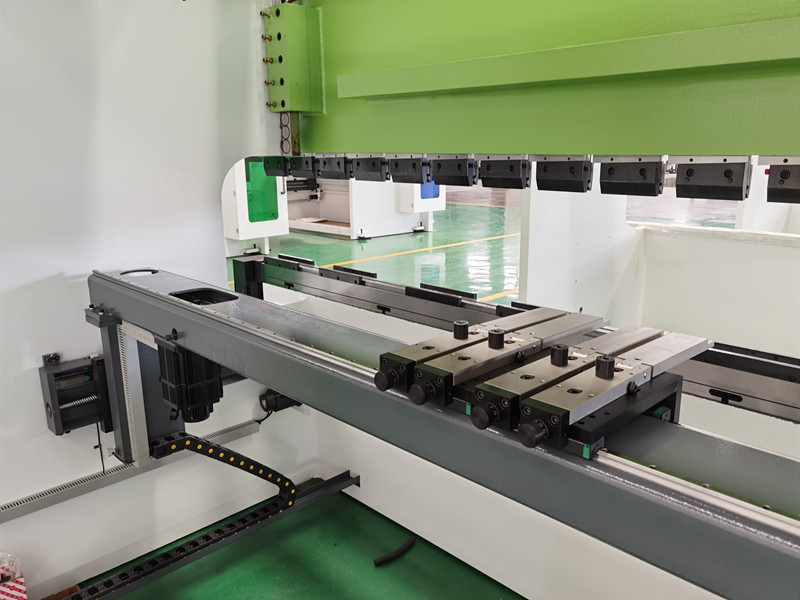

X R Axis backgauge 4 1 with Y1, Y2 Axis.
