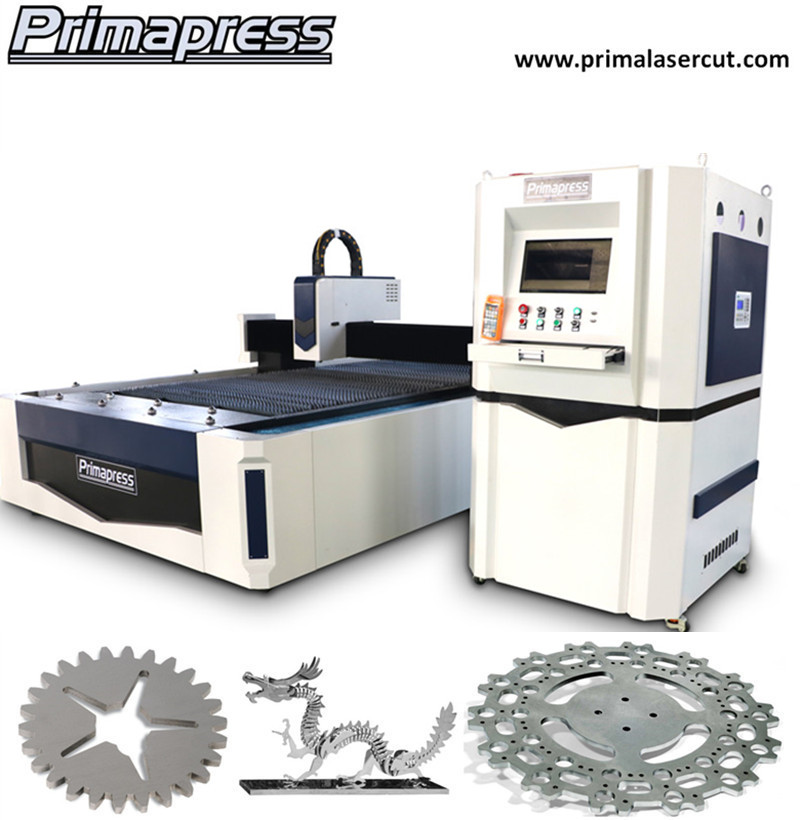

1530 CNC fiber laser cutting machine 500W, good Price 1kw CNC Fiber laser cutters

Share on facebook
Share on twitter
Share on linkedin

Description

1530 CNC fiber laser cutting machine 500W, good Price 1kw CNC Fiber laser cutters

video link:

High strength, high rigidity box type welding machine frame, high precision linear guide and rack driving and bilateral drive system to strengthen the accuracy and stability of the machine running ; Integrally cast aluminum beam, strong rigidity, light weight, small inertia, fast response, machine acceleration of 0.6 G, empty moving speed of 72 m/s, improving the processing ability of the equipment. Equipment machining accuracy for a long time to keep within / – 0.05 mm.

Independent, professional smoke dust, smoke dust effect is good, good working environment of the factory.

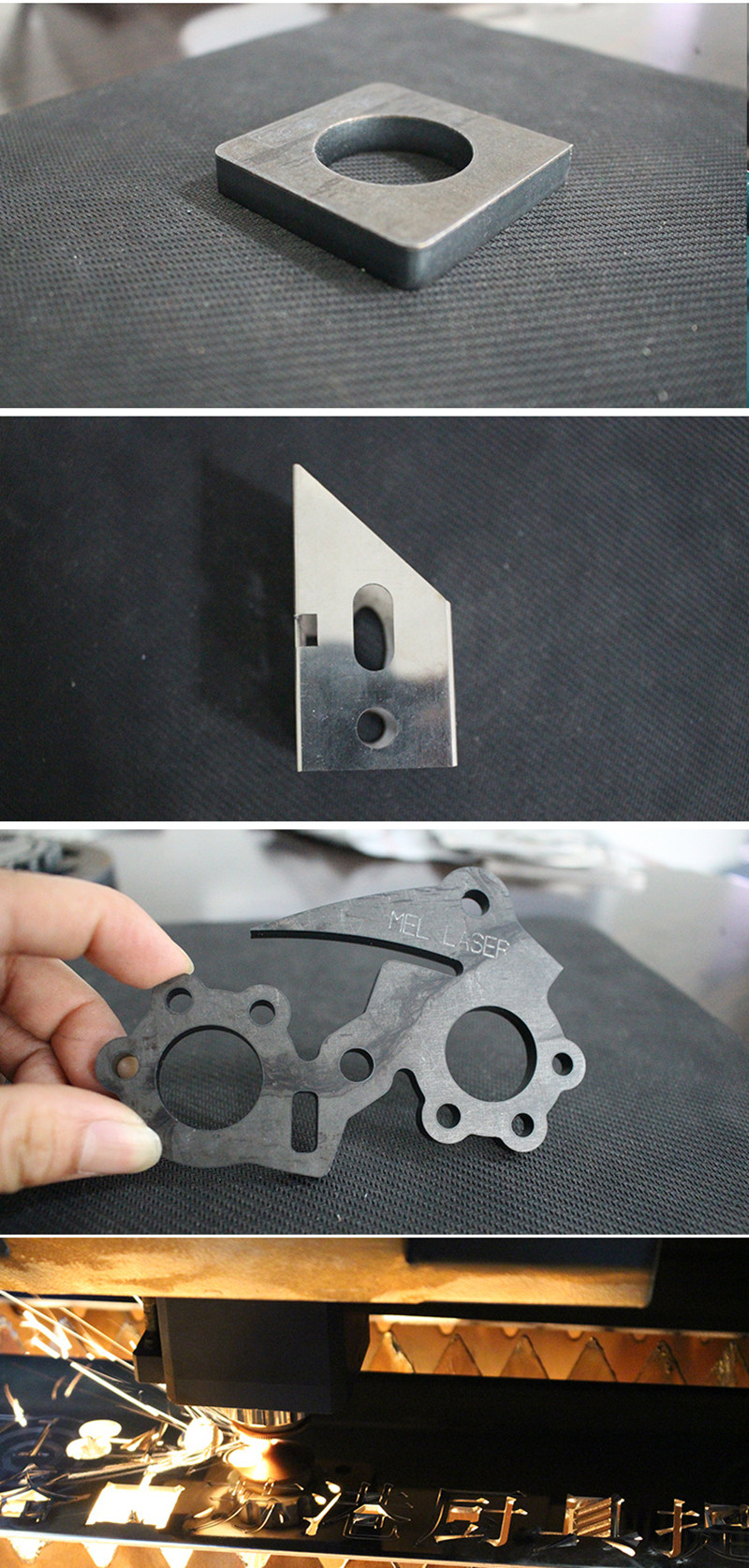

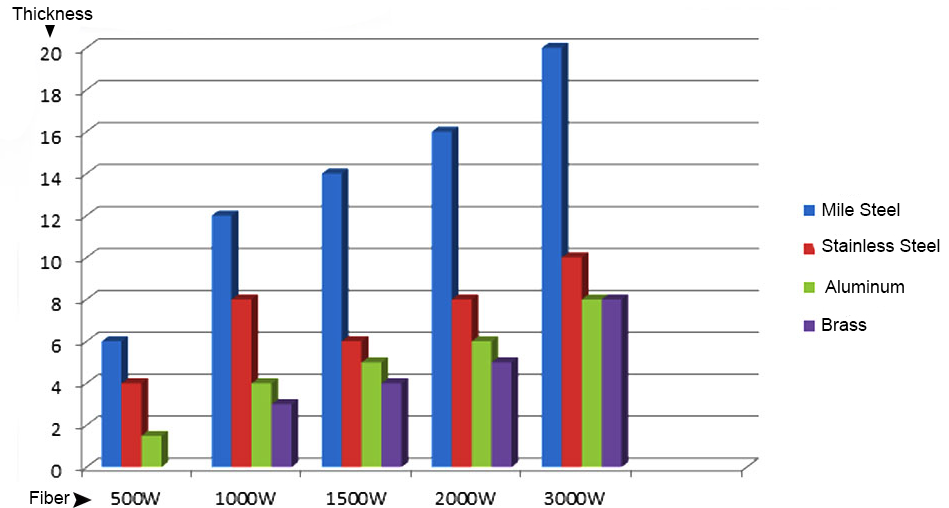

Applicable materials: professional used to cut thin sheet metal, in a variety of high-quality cutting 0.5 ~ 5mm carbon steel sheet, 0.5 ~ 2.5mm stainless steel plate, can also be cutting aluminum alloy plate, galvanized sheet, electrolytic plate, silicon steel, titanium alloy, aluminum zinc plate and other metal materials.

Main features:

1, photoelectric conversion efficiency can reach 30%, two times that of CO2;

2, less consumption of power source, CO2 is 20% ~ 30%;

3, no laser working gas, can save a lot of laser maintenance cost;

4, optical fiber transmission, without reflection lens, do not need to adjust the light path.

Product features:

1,Gantry double drive structure, smooth and reliable movement;

2,Independent research and development design, the manufacture of machine tool bed, special processing technology, machine tool precision, stable and reliable, long life;

3,Precision gear rack drive, with high response and high precision servo motor;

4,The international first-class quality of fiber laser, industrial application for many years, long service life, maintenance free, stable and reliable;

5,High precision laser cutting head, imported optical lenses, is focused on the fine, the  adjustment is convenient, cutting perfect;

6,A double closed-loop control capacitive height controller, low requirement to the steel sheet, cutting quality is stable and reliable;

7,CNC system is concise and easy operation, low requirements for the operator;

8,Cutting graphic input multiple formats, powerful draw and edit graphics function;

9,Special cutting software, cutting technology experts, data call functions;

Basic configration:

No. Description Brand Origin
1 Machine main body Prima China
2 CNC operationg carbinet Prima China
3 Smoke dust sucking structure Prima China
4 air conditioning cabinet Prima China
5 Fiber Laser Raycus-500W China
6 Laser cutting head RayTools Swiss
7 laser chiller Han’s/S&A China
8 CNC system CypCut China
9 Capacitive THC CypCut China
10 Servo motor Schneider France
11 Gear rack YYC/ Level 6 precision Taiwan
12 Linear Guide Hiwin Taiwan
13 Precision reducer Neugar German
14 Proportional valve SMC Japan
15 high-pressure valve SMC Japan
16 Electronic pieces Schneider France
17 Solenoid valve SMC Japan
18 Air cylinder AirTAC Korea
19 Air Conditioner WINHENG China
20 Cutting software CypCut China
21 Composing software SmartNest China

Laser cutting Machine tool technology parameters

Items Technical parameters
Max cutting size (mm) 3000×1500
The workpiece maximum height (mm) 90
Effective travel X axle(mm) 3050
Y axle (mm) 1550
Z axle (mm) 100
PositionaI accuracy X axle (mm/m) ±0.05/1000
Y axle (mm/m) ±0.05/1000
Z axle (mm/m) ±0.01/100
repeated positioning accuracy X axle (mm) ±0.01
Y axle (mm) ±0.01
Z axle (mm) ±0.005
Rapid positioning speed X axle (m/min) 72
Y axle (m/min) 72
Z axle (m/min) 15
Max Cutting Speed (m/min) 15
IP Grade IP54
Total weight (T) 4.35
Machine Power Consumption (Kwh) 4.8
boundary dimension L×W×H(mm) 4200×2400×1500
