1500W 1KW 2KW 3KW Fiber laser metal sheet 6m pipe fiber laser cutting machine
DESCRIPTION

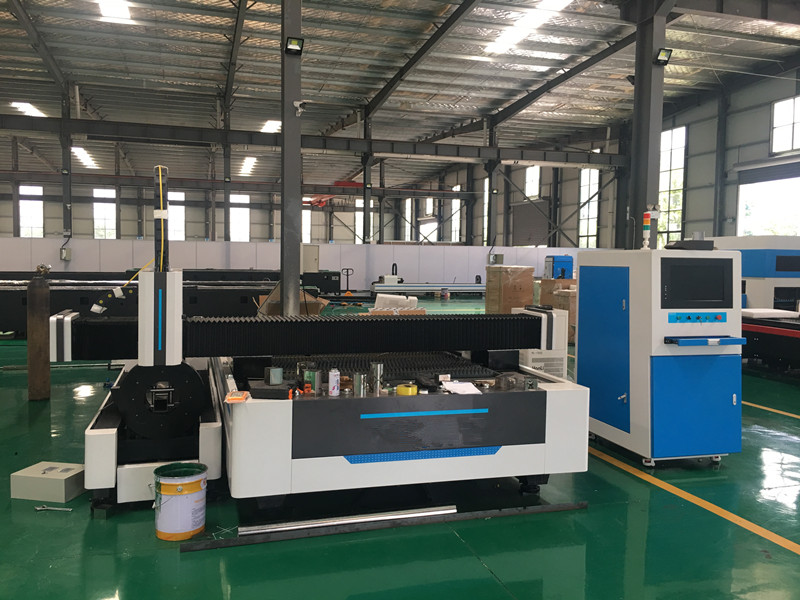

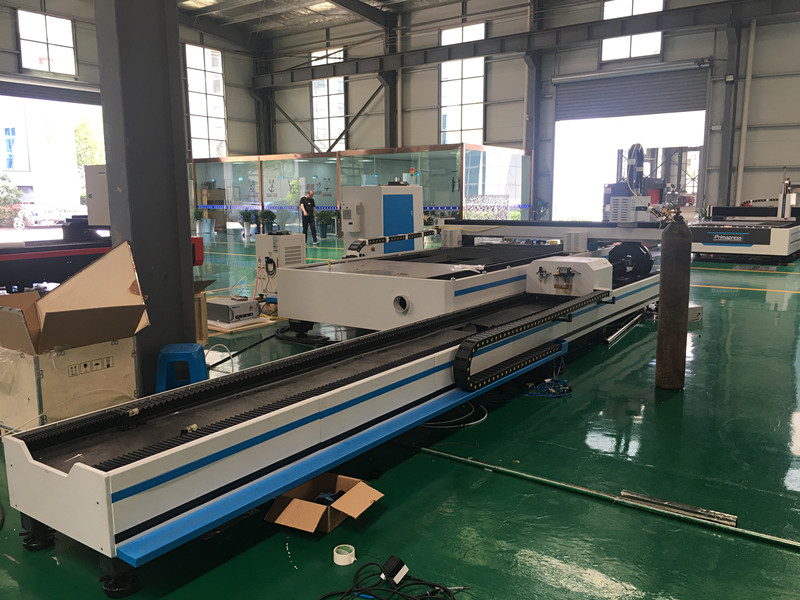

1500W 1KW 2KW 3KW Fiber laser metal sheet 6m pipe fiber laser cutting machine
video link:
Parameters:
| Machine Model | PMFiber-4015 |
| Max. working area | 1500mm x 4000mm |
| Laser | Raycus 2000 watt fiber laser |
| Cutting thickness | 0.1-16 mm/metals |
| Pipe length | 0.1-6meters |
| Pipe diameter | 20-200mm(if bigger, we can design specially)
(can load square , round, rectangle pipe, and so on ) |
| Laser wavelength | 1080 nm |
| Rated power | 10-100% |
| Water chiller power | 5.6 Kw |
| X,Y-axis location accuracy | 0.01mm |
| X,Y-axis repeat location accuracy | 0.01mm |
| X,Y-axis fast moving speed | 80 m/min |
| X,Y-axis max. cutting speed | 45 m/min |
| Min. cutting line width | 0.02-0.08 mm |
| Max. cutting speed | 45 m/min |
| Machine occupy space | 8.5 m x 3 m |
| Machine weight | 8500 KG |
| Voltage | 380 V or optional to site |
