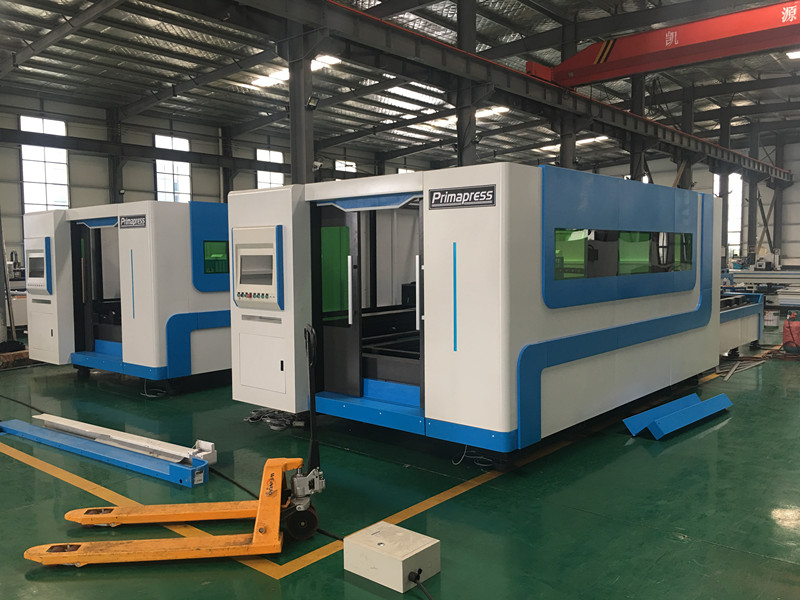

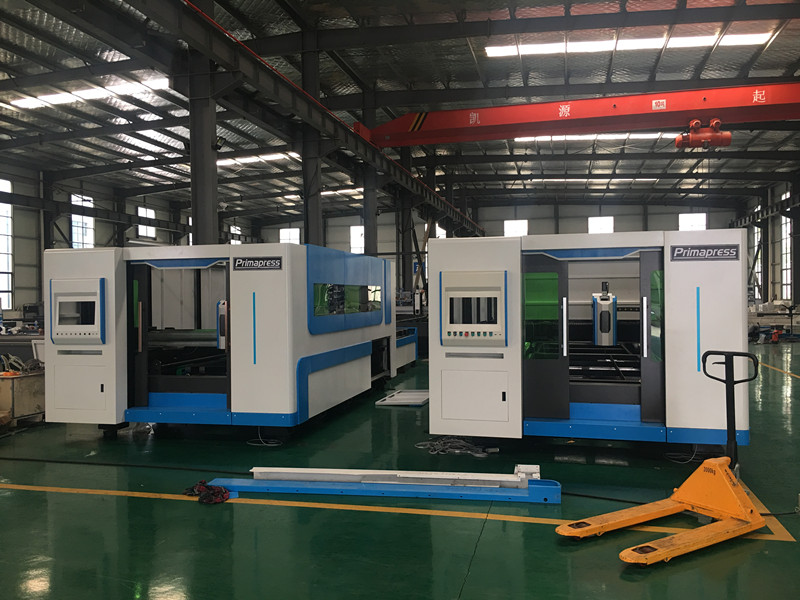

1000W 1500W 2000W 3000W 4000W 6000w Sheet metal CNC fiber laser cutting machine with Full Cover

Share on facebook
Share on twitter
Share on linkedin

Description

1000W 1500W 2000W 3000W 4000W 6000w Sheet metal CNC fiber laser cutting machine with Full Cover

Specifications


Cutting Speed:0-40000mm/min
Graphic Format Supported:AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Application:Laser Cutting
Condition:New
Cutting Thickness:0-30mm
CNC or Not:Yes
Cooling Mode:Water Cooling
Control Software:Ruida
Place of Origin:Anhui, China (Mainland)
Model Number:fiber laser cutting machine
Certification:CE, ISO
Item:metal fiber laser cutting machine
color:as your need
laser tube:150w 180w 280w 300w
Laser type:fiber laser
Cutting speed:50-5000mm/min
Power supply:220V±10% /50Hz , 110V±10%
Graphic format supported:BMP, PLT,DST,DXF,AI,CDR
Software supported:CorelDraw, PhotoShop
Highest Scanning Precision:2000DPI
Location precision:<0.01mm
After-sales Service Provided:Engineers available to service machinery overseas



500w 750w 1000w 2000w stainless steel carbon steel metal fiber laser cutting machine 1500*3000mm

Item  /  Model ECO-FIBER-1530
Cutting area 1300 x2500mm
Laser power 500W/750w/1000w/2000w/3000w
Laser type fiber laser
Engraving speed 0-60000mm/min
Cutting speed 0-40000mm/min
Focus Method Dynamic Following and Automatic Adjust Focus
Resetting positioning accuracy ≤±0.01mm
Power supply 380V/50HZ (Optional 220V/50HZ)
Operating temperature 0 – 45°C
Operating humidity 5 – 95%
Min. shaping character English 1.0 x 1.0mm
Graphic format supported BMP, PLT, DST, DXF, AI
Software supported TAJIMA, CorelDraw, Photoshop, AutoCAD
Driving system Japanese Panasonic Servo motor & Driver
Cooling mode Water-cooling and protection system
Equipment Dimensions 1990x1400x1470mm
Net Weight: 1550kg
Shipping Dimensions 2090 x 1500 x 1570mm
Optional Spare Parts Up-down clump, Rotary System, Honeycomb table
Control Method offline movement Control



carbon fiber laser cutting machine features:


1. Advanced Germany Technology: ensure most high tech in the world.

2. Advanced Laser Optical System: Ensure Excellent Laser Beam Quality Double-Xenon-lamp technology, can strongly improve the laser power and laser beam quality.

3. Laser Path Pre-view & Pre-position Function: Laser beam is in-visible by adopting “Red Light Pointer”,Realize the laser path pre-view and Pre-position function.

4. Pre-view and pre-run function: Simulate the laser cutting path, Pre-run the cutting path in advance, Ensure finding the accurate cutting position.

5. Unique Mirrors and Lens Cooling Technology: All mirrors and lens is cooled by water, Takes the mirror heat during working, Prolong its’ lifetime, Save future operation cost.

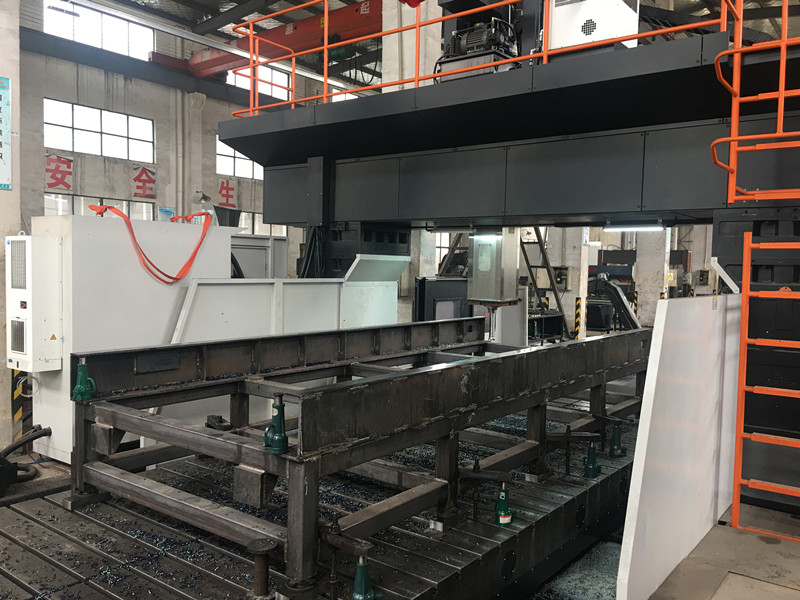

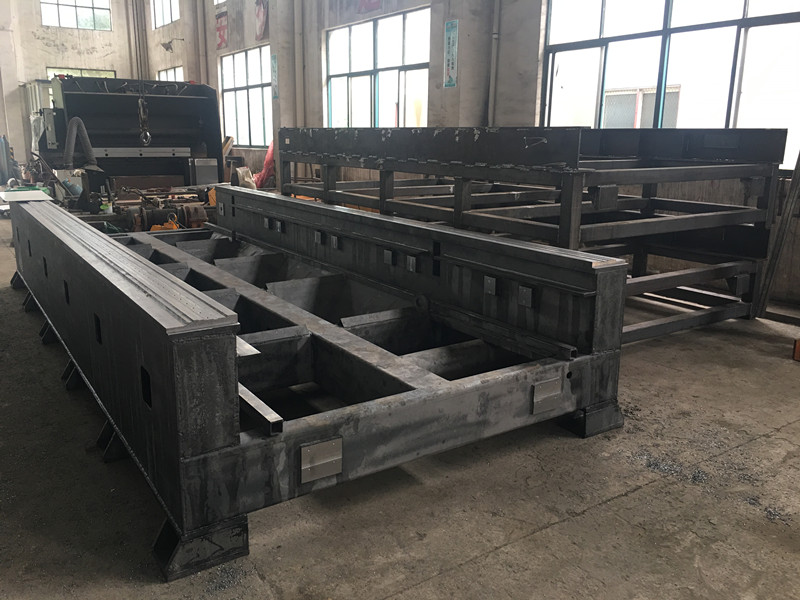

6. Heavy Machine Body: Adopt 100mm*100mm*6mm thick, square metal tube Stable, Heavy Loading, Won’t distortion after long-time using, Worktable Max. Load can reach 500 kgs. Adopt a funnel-type machine bed design, Work with conveyor belt, Easy for user to get the cutting pieces from the machine front.

7. Auto transfer system: Can automatically transfer the cutted work-pieces into the front of machine, Improve working efficiency, Save labor energy, No need user to take it by hand. Make the work-pieces neat and beautiful.

8. Auto Oil-filling system: Press for once, can lubricate the machine transmission rod for 2-3 months.

9. Red light pointer: As the laser beam is in-visible, We adopt red light pointer to indicate the real position ofthe laser beam, Make cutting more accurate.

10. Dynamic Auto-focus System: Keep the same distance between the metal sheet and laser head, Realize the accuracy of cutting effect.

11. Auto-feeding Design: Adopt feeding wheel design, Make the material feeding easier, Labor energy saving.



Our Services

Competitive Pricing

Due to our batch manufacturing, we will have a lower price with best quality machines.

Technical Support

When a breakdown occurs, our technicals are on call for both online & onsite correction.

Strict Quality Control

All machines are inspected by our quality control department before shipped out.

Spare Part Kits

Critical components & worn spare parts are offered to avoid unplanned stops.

Expert Solutions

We will provide you professional expert suggestions for your required machine.

Fast Delivery

All of the machine ordered by our customer will be delivered within 30 days.
